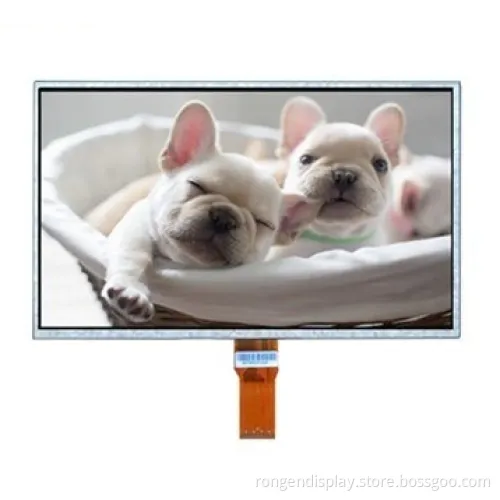

7inch LCD 800*480 Dots 400CD/M2 TFT LCM 50pin RGB Display
  • 7inch LCD 800*480 Dots 400CD/M2 TFT LCM 50pin RGB Display
  • 7inch LCD 800*480 Dots 400CD/M2 TFT LCM 50pin RGB Display
  • 7inch LCD 800*480 Dots 400CD/M2 TFT LCM 50pin RGB Display
7inch LCD 800*480 Dots 400CD/M2 TFT LCM 50pin RGB Display
7inch LCD 800*480 Dots 400CD/M2 TFT LCM 50pin RGB Display
7inch LCD 800*480 Dots 400CD/M2 TFT LCM 50pin RGB Display

7inch LCD 800*480 Dots 400CD/M2 TFT LCM 50pin RGB Display

Get Latest Price
Min. Order:
1 Piece/Pieces
Min. Order:
1 Piece/Pieces
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Product Description
Product Description

Basic Info.

Model NO.
RG070CQX-07
DOT-Matrix Graphic LCD Module Type
Row/Column-Driven Control Type
LCD Drive Mode
Multiplex Drive LCD Module
Customized
Customized
LCD Size
7.0 Inch(Diagonal)
Resolution
800×3(RGB)×480
Active Area
154.08(W)×85.92(H) mm
Module Size
164.90(W)×100.00(H)×3.50(D)mm
Interface
Digital
Transport Package
Standard
Specification
RoHS, CE
Trademark
Rongen
Origin
China
HS Code
9013803010
Production Capacity
10, 000/Month

Product Description

7inch LCD 800*480 Dots 400CD/M2 TFT LCM 50pin RGB Display 7inch LCD 800*480 Dots 400CD/M2 TFT LCM 50pin RGB Display 7inch LCD 800*480 Dots 400CD/M2 TFT LCM 50pin RGB Display 7inch LCD 800*480 Dots 400CD/M2 TFT LCM 50pin RGB Display 7inch LCD 800*480 Dots 400CD/M2 TFT LCM 50pin RGB Display 7inch LCD 800*480 Dots 400CD/M2 TFT LCM 50pin RGB Display 7inch LCD 800*480 Dots 400CD/M2 TFT LCM 50pin RGB Display 7inch LCD 800*480 Dots 400CD/M2 TFT LCM 50pin RGB Display 7inch LCD 800*480 Dots 400CD/M2 TFT LCM 50pin RGB Display
7 inch tft lcd screen High Quality lcd display without Touch  screen

1. General Specifications

No. Item Specification Remark
1 LCD size 7.0 inch(Diagonal)
2 Driver element a-Si TFT active matrix
3 Resolution 800×3(RGB)×480
4 Display mode Normally White, Transmissive
5 Dot pitch 0.0642(W)×0.1790(H) mm
6 Active area 154.08(W)×85.92(H) mm
7 Module size 164.90(W)×100.00(H)×3.50(D)mm Note 1
8 Surface treatment Anti-Glare
9 Color arrangement RGB-stripe
10 Interface Digital
11 Backlight power consumption 1.674W (Typ.)
12 Panel power consumption 0.226W (Typ.)
13 Weight TBD (Typ.)

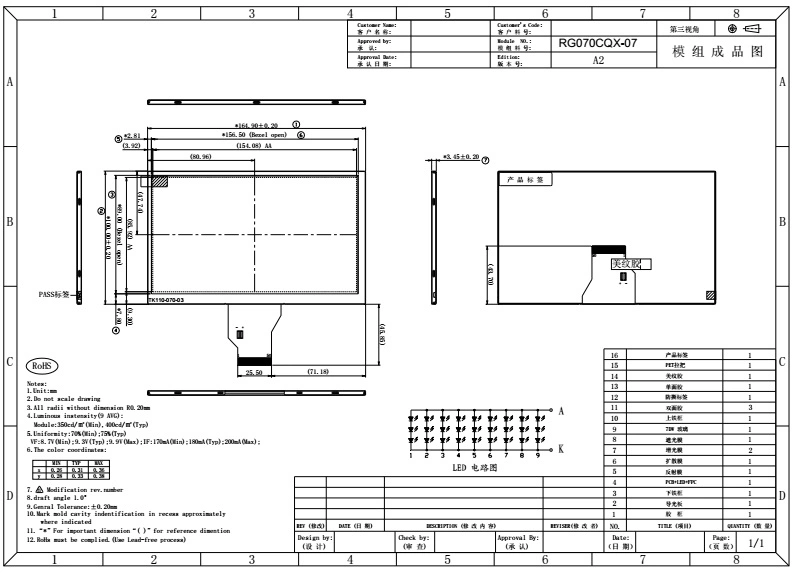

2. Outline Drawing:

7inch LCD 800*480 Dots 400CD/M2 TFT LCM 50pin RGB Display


3. Product Application

Product Application
Small-size TFT LCD display mobile device,watch,toy,medical equipment, Office electronic equipment,camera, air-condition display, etc.
Mid-size TFT LCD display mobile device,medical equipment,car, automotive product,industrial control equipment,POS,PDA, Household Video doorbell, air-condition display,etc.
Big-size TFT LCD display educational product,automotive product,video door phone, Audiovisual equipment,DVD player,media play,tablet PC, Security Products,etc.
TN/STN//FSTN/OLED  elevator controller,watch,electronic product,air-condition display,all kinds of instrument,etc.
Plastic mould industrial control equipment,electronic product,toy, Security Product,IT digital product, sports equipment,etc.


Why Choose Rongen Display?

FOG automatical device can ensure the capacity of 1000,000 per month.

Reliability test and full examination to ensure the high quality of the display.

Strictly ISO quality management system.

Mature and Professional after service.

Various cooperation experience with big brands.

7inch LCD 800*480 Dots 400CD/M2 TFT LCM 50pin RGB Display
