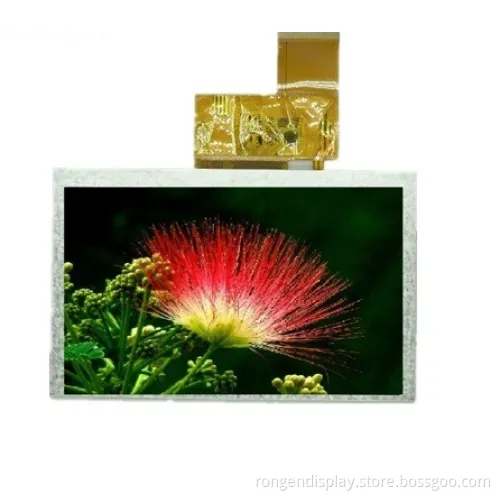

Rg050cqt-01 with 450 CD/M2 Brightness 5.0inch 800*480 LCD Display
  • Rg050cqt-01 with 450 CD/M2 Brightness 5.0inch 800*480 LCD Display
  • Rg050cqt-01 with 450 CD/M2 Brightness 5.0inch 800*480 LCD Display
  • Rg050cqt-01 with 450 CD/M2 Brightness 5.0inch 800*480 LCD Display
Rg050cqt-01 with 450 CD/M2 Brightness 5.0inch 800*480 LCD Display
Rg050cqt-01 with 450 CD/M2 Brightness 5.0inch 800*480 LCD Display
Rg050cqt-01 with 450 CD/M2 Brightness 5.0inch 800*480 LCD Display

Rg050cqt-01 with 450 CD/M2 Brightness 5.0inch 800*480 LCD Display

Get Latest Price
Min. Order:
1 Piece/Pieces
Min. Order:
1 Piece/Pieces
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Product Description
Product Description

Basic Info.

Model NO.
RG050CQT-01
Display Technology
TFT
DOT-Matrix Graphic LCD Module Type
Row/Column-Driven Control Type
LCD Drive Mode
Multiplex Drive LCD Module
Customized
Customized
LCD Type
TFT Transmissive
Driver Element
a-Si TFT Active Matrix
Pin
40
Number of Dots
800*(RGB)*480
Brightness
450CD/M2
Contrast Ratio
500:1
Active Area
108 *64.8
Operating Temperature
-20~+70
Storage Temperature
-30~+80
Transport Package
Ce, RoHS, SGS
Specification
stardard
Trademark
Rongen
Origin
China
HS Code
9013803010
Production Capacity
10000/Month

Product Description

General specification:
ITEM  Standard value
LCD Type  TFT Transmissive
Driver element  a-Si TFT Active matrix
Number of Dots  800*(RGB)*480 Dots
Pixel Arrangement  RGB Vertical Stripe
Active Area  108 *64.8 mm
Viewing Direction  12 O'clock
Driver IC  ILI5960+ILI6122
Module Size(W*H*T)  120.7x75.8x2.8 mm
Approx. Weight  TBD g
Back Light  White LED
System interface  24 Bit RGB interface
Backlight power consumption 768mW


Outline drawing:
Rg050cqt-01 with 450 CD/M2 Brightness 5.0inch 800*480 LCD Display Rg050cqt-01 with 450 CD/M2 Brightness 5.0inch 800*480 LCD Display Rg050cqt-01 with 450 CD/M2 Brightness 5.0inch 800*480 LCD Display Rg050cqt-01 with 450 CD/M2 Brightness 5.0inch 800*480 LCD Display Rg050cqt-01 with 450 CD/M2 Brightness 5.0inch 800*480 LCD Display Rg050cqt-01 with 450 CD/M2 Brightness 5.0inch 800*480 LCD Display Rg050cqt-01 with 450 CD/M2 Brightness 5.0inch 800*480 LCD Display Rg050cqt-01 with 450 CD/M2 Brightness 5.0inch 800*480 LCD Display Rg050cqt-01 with 450 CD/M2 Brightness 5.0inch 800*480 LCD Display Rg050cqt-01 with 450 CD/M2 Brightness 5.0inch 800*480 LCD Display Rg050cqt-01 with 450 CD/M2 Brightness 5.0inch 800*480 LCD Display Rg050cqt-01 with 450 CD/M2 Brightness 5.0inch 800*480 LCD Display

Product Application:
Our LCD module size are from 2.8 inch to 10.1 inch which are widely used in digital camera, DV, security monitoring, carcorder, PMP, MID and Education Learning Aid, POS Machine etc.
Product Application
Small-size TFT LCD display  (1.44inch~4.3inch) mobile device, watch, toy, medical equipment, Office electronic equipment, camera, air-condition display, etc.
Mid-size TFT LCD display  (5.0inch~10.0inch) mobile device, medical equipment, car, automotive product, industrial control equipment, POS, PDA, Household Video doorbell, air-condition display, etc.
Big-size TFT LCD display  (10inch and above) educational product, automotive product, video door phone, Audiovisual equipment, DVD player, media play, tablet PC, Security Products, etc.
TN/STN//FSTN/OLED  elevator controller, watch, electronic product, air-condition display, all kinds of instrument, etc.
Plastic mould industrial control equipment, electronic product, toy, Security Product, IT digital product, sports equipment, etc.
