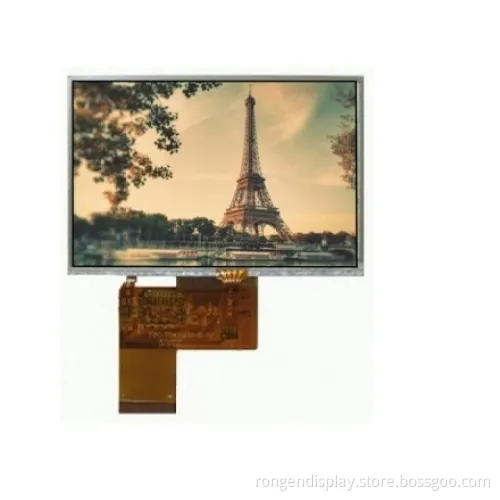

TFT LCD Screen 4.3inch 480*272 RGB 40pin Optional Touch Screen
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Info.
Model NO.
RG043DTD-07R
Widescreen
Widescreen
Response Time
10ms
3D
Not 3D
Interface Type
RGB888
Resolution
480*272
Luminance
400 CD/M2
Operating Temperature
-20~70
Back Light
5*2 LEDs White
Module Size
105.5*67.2*4.05mm
Active Area
95.04*53.86mm
Storage Temperature
-30~80
Controler
Hx8257A
Pins
40 Pins
Transport Package
Stardard
Specification
CE, RoHS, SGS
Trademark
Ronen
Origin
China
HS Code
9013803010
Production Capacity
15000/Month
Product Description
General Specifications

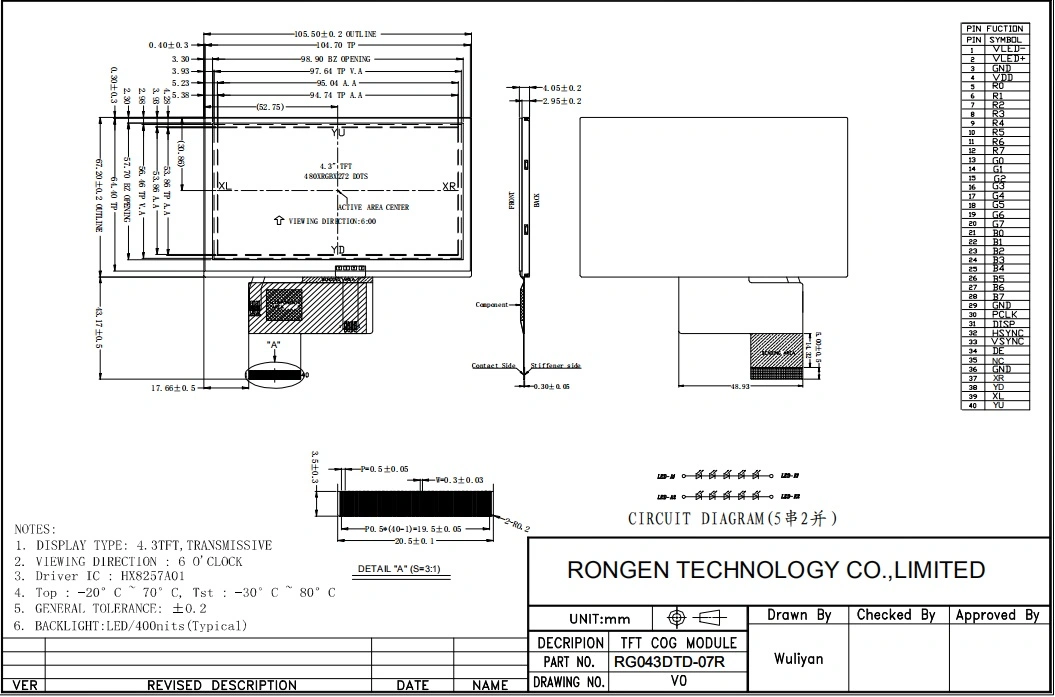

Merchanical Drawing
Our LCD module size are from 2.8 inch to 10.1 inch which are widely used in digital camera ,DV,security monitoring, carcorder,PMP,MID and Education Learning Aid, POS Machine etc.
| Item | Contents |
| LCD Type | TFT |
| Display color | 16.7m |
| Module Size | 105.5*67.20*4.05mm |
| Active Area | 95.04*53.86mm |
| Viewing Direction | 6 O'Clock |
| Gray scale inversion direction | 12 O'Clock |
| Operating temperature | -20~70 |
| Storage temperature | -30~80 |
| Controller |
HX8257A
|
| Number of Dots | 480*272 dots |
| Power Suppy Voltage | 3.3 v |
| Back light | 5*2 LEDs White |
| Interface | RGB888 |
Merchanical Drawing
Our LCD module size are from 2.8 inch to 10.1 inch which are widely used in digital camera ,DV,security monitoring, carcorder,PMP,MID and Education Learning Aid, POS Machine etc.
| Product | Application |
| Small-size TFT LCD display | mobile device,watch,toy,medical equipment,Office electronic equipment,camera,air-condition display,etc. |
| Mid-size TFT LCD display | moblie device,medical equipment,car,automotive product,industrial control equipment,POS,PDA,Household Video doorbell,air-condition display,etc. |
| Big-size TFT LCD display | educational product,automotive product,video door phone,Audiovisual equipment,DVD player,media play,tablet PC,security Products,etc. |
| TN/STN/FSTN/OLED | elevator controller,watch,electronic product,air-condition display,all kinds of instrument,etc. |
| Plastic mould | industrial control equipment ,electronic product,toy,Security Product,IT digital product,sports equipment,etc. |
