4.3 Inch 24 Bits RGB TFT LCD Display with Resistive Touch Screen

Get Latest Price

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Basic Info.

Model NO.

RG043DTT-02R

Display Technology

TFT

DOT-Matrix Graphic LCD Module Type

Row/Column-Driven Control Type

LCD Drive Mode

Multiplex Drive LCD Module

Customized

Brand Name

Rongen

Product Name

Rg043dtt-02r

Resolotion

480X272

Outline Dimension

105.5X67.2X4.1mm

Luminance

350CD/M2

Pins

Interface

24bits RGB

LCD Type

TFT with Touch Panel

Brightness

350CD/M2

Transport Package

Stardard

Specification

CE, RoHS, SGS

Trademark

Rongen

Origin

China

HS Code

9013803010

Production Capacity

100, 000/Month

Product Description

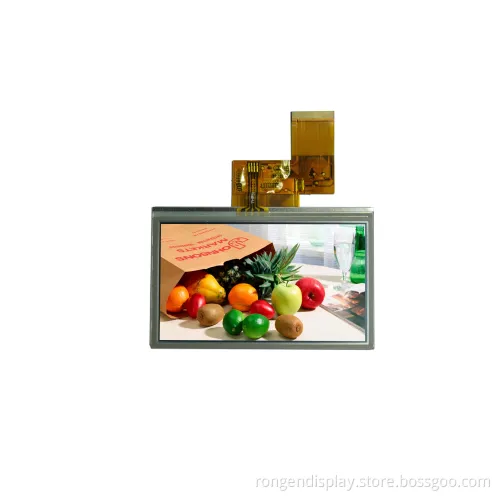

4.3 Inch TFT LCD Screen 480x272 Resolution with resistive Touch Screen

General specification

Item	Contents
LCD Type	TFT
Display Color	16.7M
View Direction	12 O'Clock
Gray Scale Inversion Direction	6 O'Clock
Operating Temperature	-20+70 °C
Store Temperature	-30~+80 °C
Module Size	105.5x67.2x4.1mm
Active Area(W×H)	95.04x53.86mm
Number of Dots	480×272dots
Driver IC	HX8257A
Power Supply Voltage	3.3V

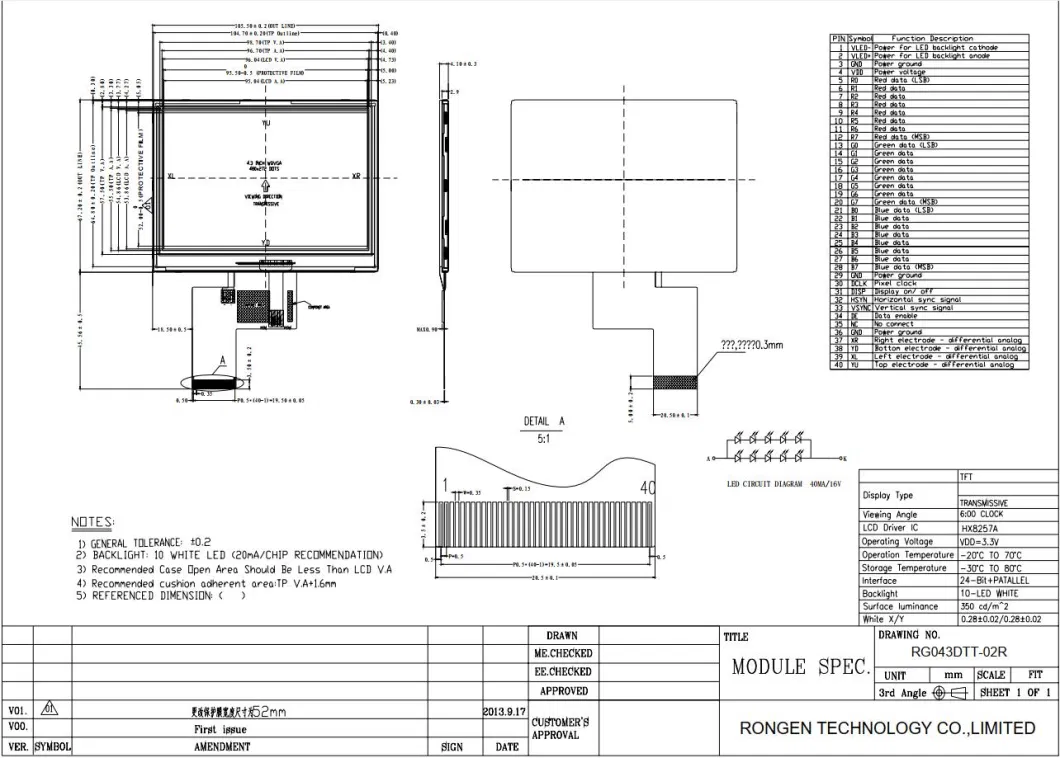

Outline Dimensions	Refer to outline drawing
Backlight	LEDs(white)
Weight	TBD
Interface	24bits RGB and ITU-R BT656
