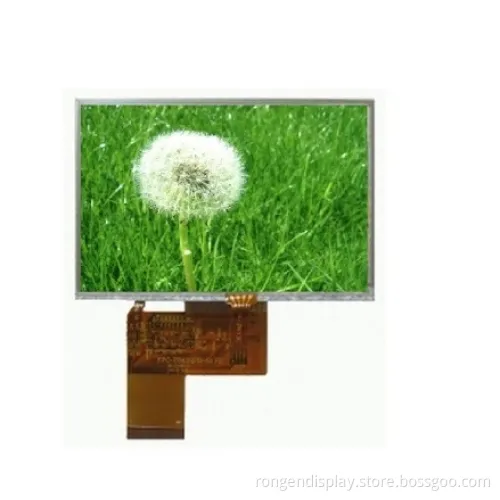

4.3inch TFT LCD Screen with Touch Screen Rg043dtd-07r

4.3inch TFT LCD Screen with Touch Screen Rg043dtd-07r

Get Latest Price

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Basic Info.

Model NO.

RG043DTD-07R

Widescreen

Response Time

10ms

Not 3D

Interface Type

RGB888

Resolution

480X272

Luminance

400CD/M2

Contrast Ratio

500:1

Operating Temperature

-20~70

Storage Temperature

-30~80

Driver IC

Hx8257A

Pins

40pins

Backlight

5X2 LEDs White

Active Area

95.04X53.86

Module Size

105.5X67.2X4.05

Transport Package

Stardard

Specification

CE, RoHS, SGS

Trademark

Rongen

Origin

China

Production Capacity

15000PCS/Month

Product Description

General Specifications

Item	Contents
LCD Type	TFT
Display color	16.7M
Viewing Direction	6 O'Clock
Gray scale inversion direction	12 O'Clock
Operating temperature	-20~+70 ºC
Storage temperature	-30~+80 ºC
Module size	105.5x67.20x4.05
Active Area(W×H)	95.04X53.86 mm
Number of Dots	480×272 dots
Controller	HX8257A
Power Supply Voltage	3.3 V
Backlight	5X2-LEDs (white) pcs
Interface	RGB888

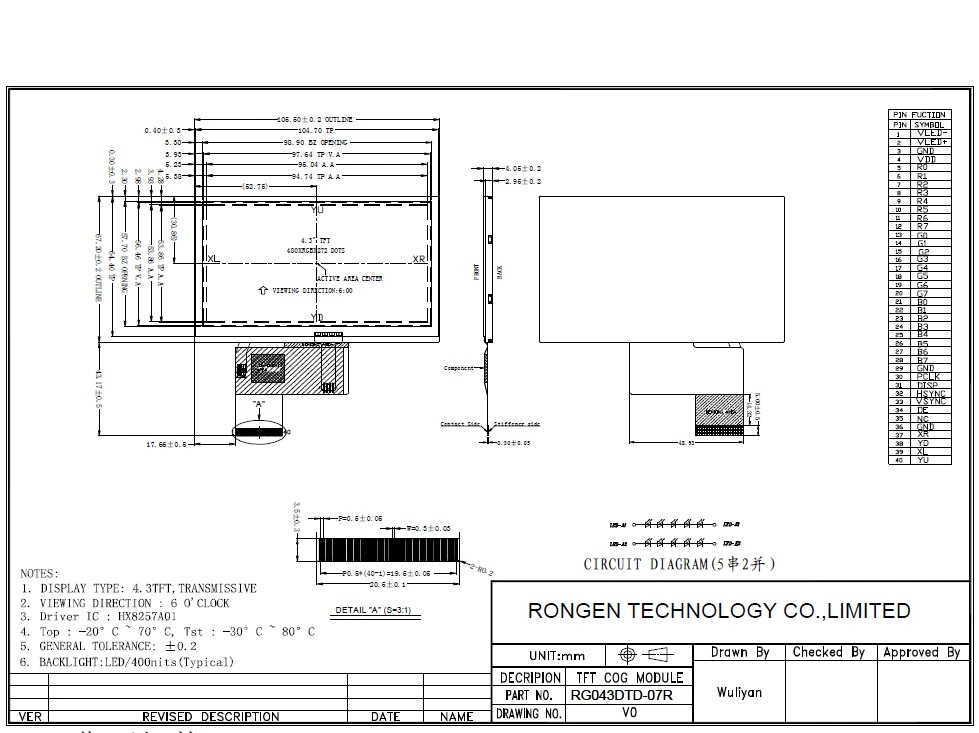

Merchanical Drawing

4.3inch TFT LCD Screen with Touch Screen Rg043dtd-07r

our LCD module size are from 2.8 inch to 10.1 inch which are widely used in digital camera, DV, security monitoring, carcorder, PMP, MID and Education Learning Aid, POS Machine etc.

Product	Application
Small-size TFT LCD display	mobile device,watch,toy,medical equipment, Office electronic equipment,camera, air-condition display, etc.
Mid-size TFT LCD display	mobile device,medical equipment,car, automotive product,industrial control equipment,POS,PDA, Household Video doorbell, air-condition display,etc.
Big-size TFT LCD display	educational product,automotive product,video door phone, Audiovisual equipment,DVD player,media play,tablet PC, Security Products,etc.
TN/STN//FSTN/OLED	elevator controller,watch,electronic product,air-condition display,all kinds of instrument,etc.
Plastic mould	industrial control equipment,electronic product,toy, Security Product,IT digital product, sports equipment,etc.
