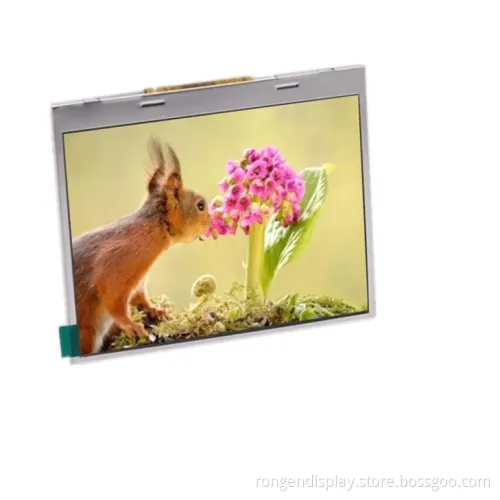

Rg035ftt-23r for E-book 3.5 Inch 320*240 TFT LCD Display with Touch Screen
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Info.
Model NO.
RG035FTT-23R
Resolution
320*240
Luminance
240 CD/M2
Active Area
70.08*52.56
Outline Size
76.9*63.9*4.15
Back Lights
6LED
Interface
24bits RGB+Spi
Controller
Nv3035c
Connector
54pins
Operatio Temperature
-20~70
Storage Temperature
-30~80
Transport Package
Stardard
Specification
CE, RoHS, SGS
Trademark
Ronen
Origin
China
HS Code
9013803010
Production Capacity
100, 000/Month
Product Description
General Specification
| Item | Contents Unit |
| LCD TYPE | TFT/TRANSMISSIVE |
| MODULE SIZE (W*H*T) | 76.90*63.90*4.15 MM |
| ACTIVE SIZE (W*H) | 70.08*52.56 MM |
| PIXEL PITCH (W*H) | 0.219*0.219 MM |
| NUMBER OF DOTS | 320*240 |
| DIVER IC | NV3035GTC |
| INTERFACE TYPE | RGB+SPI |
| TOP POLARIZER TYPE | ANTI-GLARE |
| RECOMMEND VIEWING DIRECTION | 12 O'CLOCK |
| GRAY SCALE INVERSION DIRECTION | 6 O'CLOCK |
| COLORS | 16.7M |
| BACKLIGHT TYPE | 6-DIES WHITE LED |
| TOUCH PANEL TYPE | RESISTIVE |

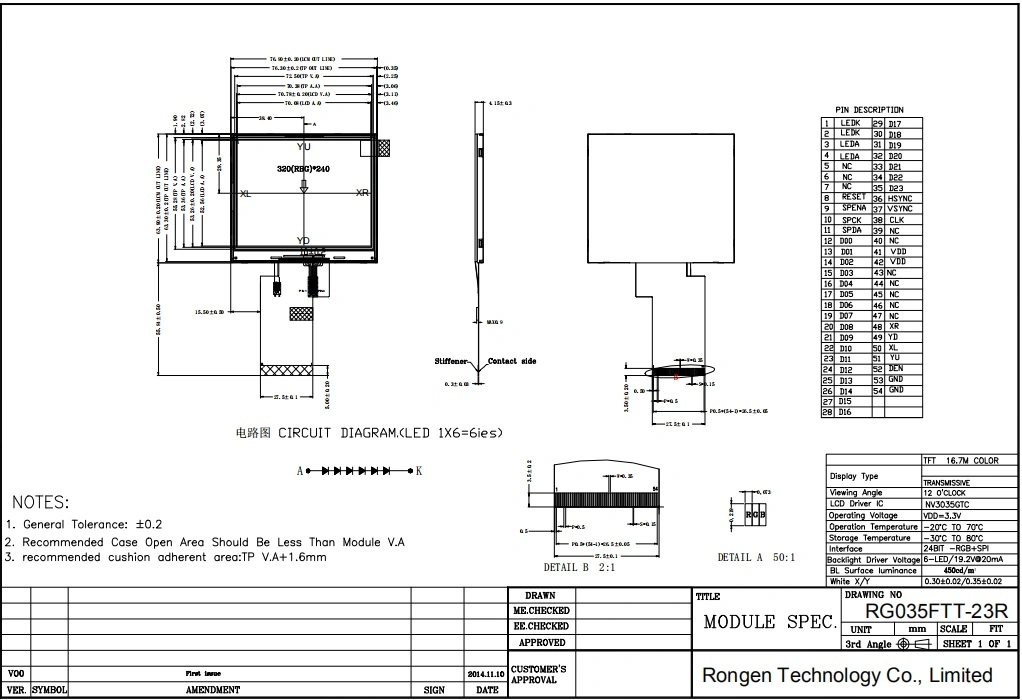

Mechanical Drawing
Product Application
Our LCD module size are from 2.8 inch to 10.1 inch which are widely used in digital camera, DV, security monitoring, carcorder, PMP, MID and Education Learning Aid, POS Machine etc.
Our LCD module size are from 2.8 inch to 10.1 inch which are widely used in digital camera, DV, security monitoring, carcorder, PMP, MID and Education Learning Aid, POS Machine etc.
| Product | Application |
| Small-size TFT LCD display (1.44inch~4.3inch) | mobile device, watch, toy, medical equipment, Office electronic equipment, camera, air-condition display, etc. |
| Mid-size TFT LCD display (5.0inch~10.0inch) | mobile device, medical equipment, car, automotive product, industrial control equipment, POS, PDA, Household Video doorbell, air-condition display, etc. |
| Big-size TFT LCD display (10inch and above) | educational product, automotive product, video door phone, Audiovisual equipment, DVD player, media play, tablet PC, Security Products, etc. |
| TN/STN//FSTN/OLED | elevator controller, watch, electronic product, air-condition display, all kinds of instrument, etc. |
| Plastic mould | industrial control equipment, electronic product, toy, Security Product, IT digital product, sports equipment, etc. |
