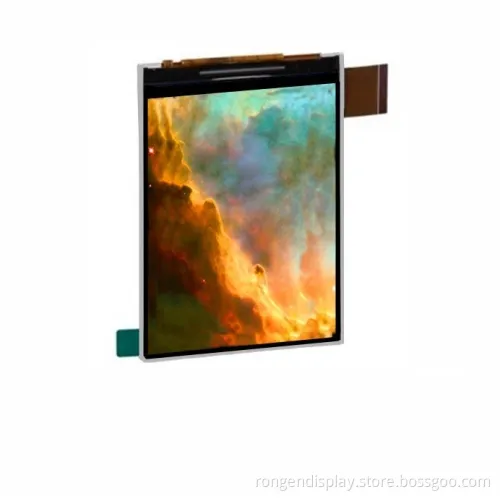

Rg035eht-17r for MP4/MP3 Player 320*480 Display with Touch Screen 3.5 Inch TFT LCD
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Info.
Model NO.
RG035EHT-17R
Resolution
320*480
Luminance
290 CD/M2
Active Area
48.96*73.44 mm
Outline Size
54.66*82.9*3.45 mm
Back Lights
6LED
Contrast Ratio
500:1
Interface
Spi+18bitsrgb+MCU
Controller
St7796s
Connector
45 Pin
Operation Temperature
-20~70
Storage Temperature
-30~80
Transport Package
Stardard
Specification
CE, RoHS, SGS
Trademark
Ronen
Origin
China
HS Code
9013803010
Production Capacity
100, 000/Month
Product Description
General Specification
| Item | Contents Unit |
| LCD TYPE | TFT/TRANSMISSIVE |
| MODULE SIZE (W*H*T) | 54.66*82.94*3.45 MM |
| ACTIVE SIZE (W*H) | 48.96*73.44 MM |
| PIXEL PITCH (W*H) | 0.153*0.153 MM |
| NUMBER OF DOTS | 320*480 |
| DRIVER IC | ST7796S |
| INTERFACE TYPE | SPI+ RGB 18BIT |
| TOP POLARIZER TYPE | ANTI-GLARE |
| RECOMMEND VIEWING DIRECTION | 12 O'CLOCK O'CLOCK |
| GRAY SCALE INVERSION DIRECTION | 6 O'CLOCK O'CLOCK |
| BACKLIGHT TYPE | 6-CHIP WHITE LED |
| TOUCH PANEL TYPE | RESISTIVE |

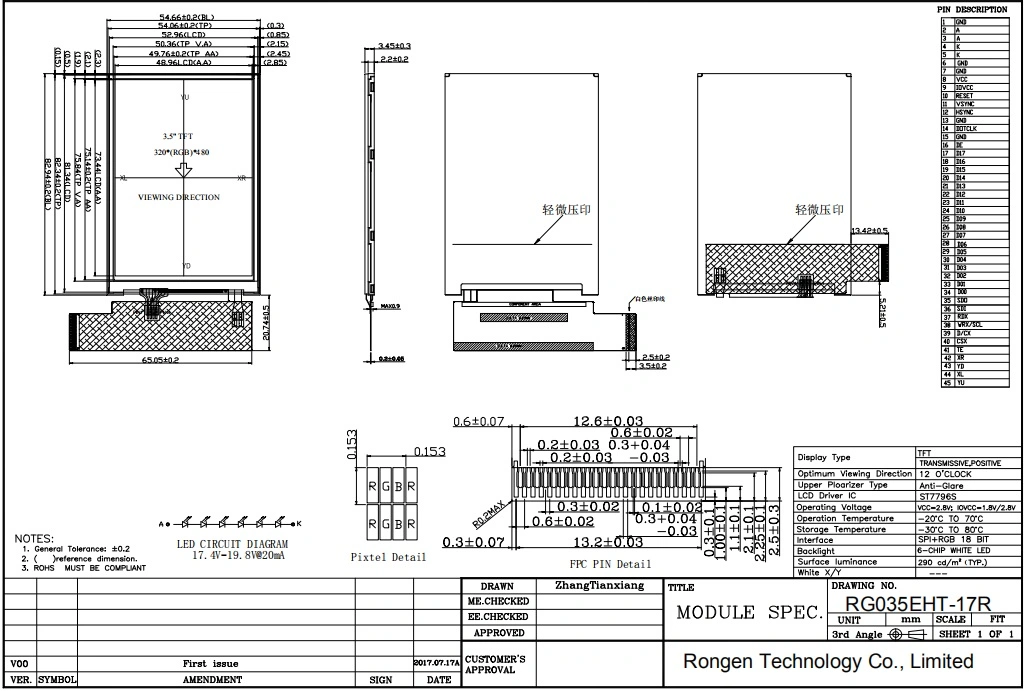

Mechanical Drawing
Product Application
Our LCD module size are from 2.8 inch to 10.1 inch which are widely used in digital camera, DV, security monitoring, carcorder, PMP, MID and Education Learning Aid, POS Machine etc.
Product Application
Our LCD module size are from 2.8 inch to 10.1 inch which are widely used in digital camera, DV, security monitoring, carcorder, PMP, MID and Education Learning Aid, POS Machine etc.
| Product | Application |
| Small-size TFT LCD display (1.44inch~4.3inch) | mobile device, watch, toy, medical equipment, Office electronic equipment, camera, air-condition display, etc. |
| Mid-size TFT LCD display (5.0inch~10.0inch) | mobile device, medical equipment, car, automotive product, industrial control equipment, POS, PDA, Household Video doorbell, air-condition display, etc. |
| Big-size TFT LCD display (10inch and above) | educational product, automotive product, video door phone, Audiovisual equipment, DVD player, media play, tablet PC, Security Products, etc. |
| TN/STN//FSTN/OLED | elevator controller, watch, electronic product, air-condition display, all kinds of instrument, etc. |
| Plastic mould | industrial control equipment, electronic product, toy, Security Product, IT digital product, sports equipment, etc. |
