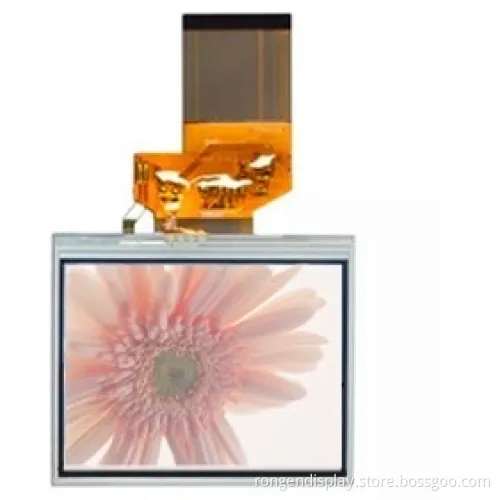

Ronen Rg035qtt-24 3.5 Inch 480*640 TFT LCD Screen Display with RGB
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Info.
Model NO.
RG035QTT-24
Customized
Customized
Resolution
480*640
Active Area
53.28*71.04 mm
Outline Size
64*85*3.0 mm
Luminance
570 CD/M2
Back Lights
6LED
Interface
Spi+18bitsrgb
Controller
Hx8363A
View Angle
9 O′clock
Connector
60pin
Operation Temperature
-20 ~ 70
Storage Temperature
-30 ~80
Transport Package
Stardard
Specification
CE, RoHS, SGS
Trademark
Ronen
Origin
China
HS Code
9013803010
Production Capacity
100, 000/Month
Product Description
General specification

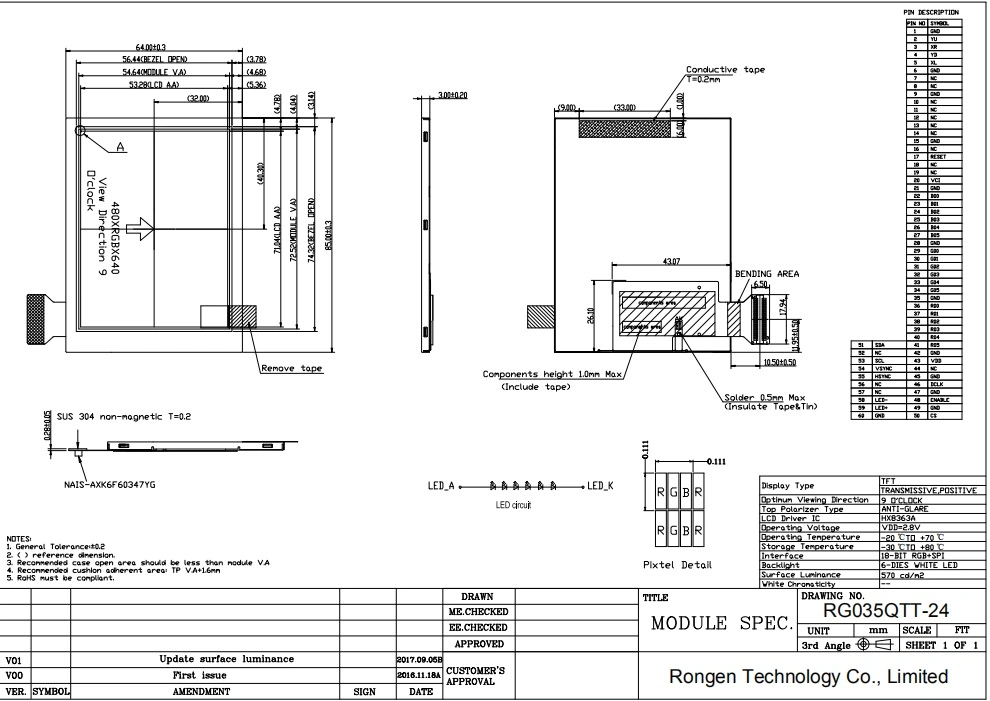

Mechanical drawing
Product application
Our lcd module size are from 2.8 inch to 10.1 inch which are widely used in digital camera, dv, security monitoring, carcorder, pmp, mid and education learning aid, pos machine etc.
| Item | Contents |
| Lcd type | Tft/transmissive |
| Module size | 64.0*85.0*3.0 mm |
| Active size | 53.28*71.04 mm |
| Pixel pitch | 0.111*0.111 mm |
| Number of dots | 480*640 |
| Diver ic | Hx8363a |
| Interface type | Spi+18bit rgb |
| Top polarizer type | Anti-glare |
| Recommend viewing direction | 9 o'clock |
| Gray scale inversion direction | 3 o'clock |
| Colors | 262k |
| Backlight type | 6-dies white led |
| Touch panel type | Without |
Mechanical drawing
Product application
Our lcd module size are from 2.8 inch to 10.1 inch which are widely used in digital camera, dv, security monitoring, carcorder, pmp, mid and education learning aid, pos machine etc.
| Product | Application |
| Small-size tft lcd display (1.44inch~4.3inch) | Mobile device, watch, toy, medical equipment, office electronic equipment, camera, air-condition display, etc. |
| Mid-size tft lcd display (5.0inch~10.0inch) | Mobile device, medical equipment, car, automotive product, industrial control equipment, pos, pda, household video doorbell, air-condition display, etc. |
| Big-size tft lcd display (10inch and above) | Educational product, automotive product, video door phone, audiovisual equipment, dvd player, media play, tablet pc, security products, etc. |
| Tn/stn//fstn/oled | Elevator controller, watch, electronic product, air-condition display, all kinds of instrument, etc. |
| Plastic mould | Industrial control equipment, electronic product, toy, security product, it digital product, sports equipment, etc. |
