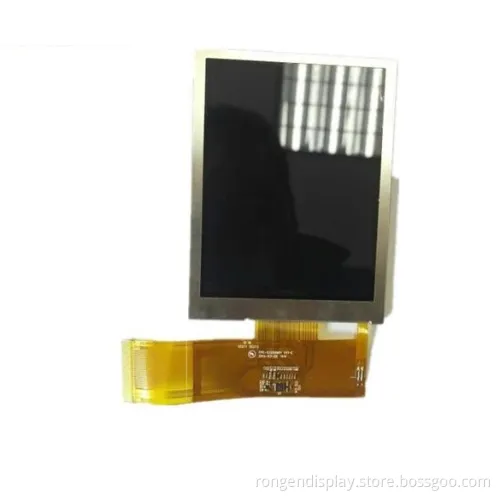

Ronen Rg035qjt-01 3.5 Inch 480*640 TFT LCD Screen Display for Digital Camera
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Info.
Model NO.
RG035QJT-01
Display Technology
TFT
DOT-Matrix Graphic LCD Module Type
Row/Column-Driven Control Type
LCD Drive Mode
Multiplex Drive LCD Module
Customized
Customized
Resolution
480*640
Active Area
53.28*71.04 mm
Outline Size
64*85*3.0 mm
Luminance
500 CD/M2
Back Lights
6LED
Interface
18bitsrgb
Controller
Ili9806e-02
Connector
40pin
Operation Temperature
-20 ~ 70
Storage Temperature
-30 ~80
Transport Package
Stardard
Specification
CE, RoHS, SGS
Trademark
Ronen
Origin
China
HS Code
9013803010
Production Capacity
100, 000/Month
Product Description
General specification

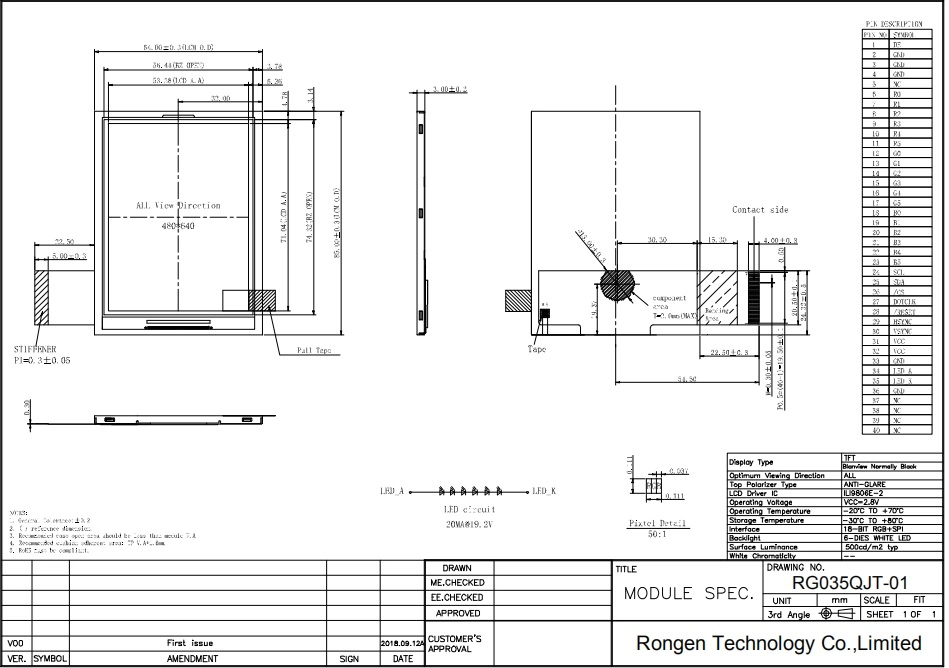

Mechanical drawing
Product application
Our lcd module size are from 2.8 inch to 10.1 inch which are widely used in digital camera, dv, security monitoring, carcorder, pmp, mid and education learning aid, pos machine etc.
| Item | Contents unit |
| Lcd type | Tft/blanview normally black |
| Module size | 64*85*3 mm |
| Active size | 53.28*71.04 mm |
| Pixel pitch | 0.037*0.111 mm |
| Number of dots | 480*640 |
| Driver ic | Ili9806e-2 |
| Interface type | 18-bit rgb+spi |
| Top polarizer type | Anti-glare |
| Recommend viewing direction | All o'clock |
| Gray scale inversion direction | - o'clock |
| Backlight type | 6-dies white led |
Mechanical drawing
Product application
Our lcd module size are from 2.8 inch to 10.1 inch which are widely used in digital camera, dv, security monitoring, carcorder, pmp, mid and education learning aid, pos machine etc.
| Product | Application |
| Small-size tft lcd display (1.44inch~4.3inch) | Mobile device, watch, toy, medical equipment, office electronic equipment, camera, air-condition display, etc. |
| Mid-size tft lcd display (5.0inch~10.0inch) | Mobile device, medical equipment, car, automotive product, industrial control equipment, pos, pda, household video doorbell, air-condition display, etc. |
| Big-size tft lcd display (10inch and above) | Educational product, automotive product, video door phone, audiovisual equipment, dvd player, media play, tablet pc, security products, etc. |
| Tn/stn//fstn/oled | Elevator controller, watch, electronic product, air-condition display, all kinds of instrument, etc. |
| Plastic mould | Industrial control equipment, electronic product, toy, security product, it digital product, sports equipment, etc. |
