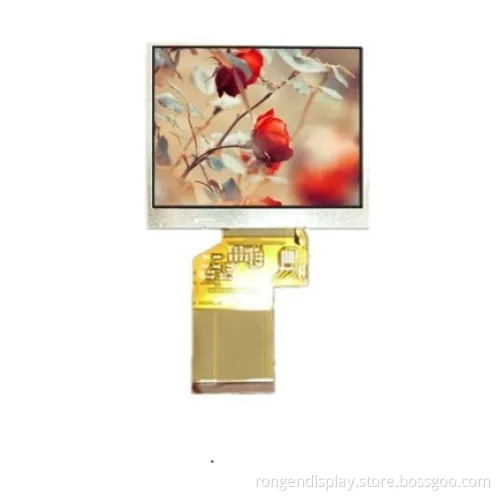

3.5inch 320*240 TFT LCD Display 54pin

Get Latest Price

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Basic Info.

Model NO.

RG035QQD-12

Widescreen

Not Widescreen

Response Time

25ms

Not 3D

Interface Type

VGA

54pin Soldering Type

Resolution

320*240

Luminance

250 CD/M2

Contrast Ratio

500: 1

Active Area

70.08mm(W)*52.56mm(H)

Outline Size

64*76.90*3.05

Colors

262K

Operating Temperature

-20~70

View Angle

12 O′clock

Interface

RGB

Transport Package

Stardard

Specification

CE, RoHS, SGS

Trademark

Ronen

Origin

China

HS Code

9013803010

Production Capacity

10000PCS/Month

Product Description

General specification:

Item	Contents
LCD Type	TFT
Display Color	262k
Viewing Direction	12 O'Clock
Gray scale inversion direction	6 O'Clock
Operating Temperature	-20~+70 °C
Store Temperature	-30~+80 °C
Module Size	Refer to outline drawing
Active Area(W×H)	70.08×52.56 mm
Number of Dots	320×RGB×240 dots
Controller	HX8238D
Power Supply Voltage	3.3 V
Outline Dimensions	Refer to outline drawing
Backlight	6-LEDs (white) pcs
Data Transfer	RGB

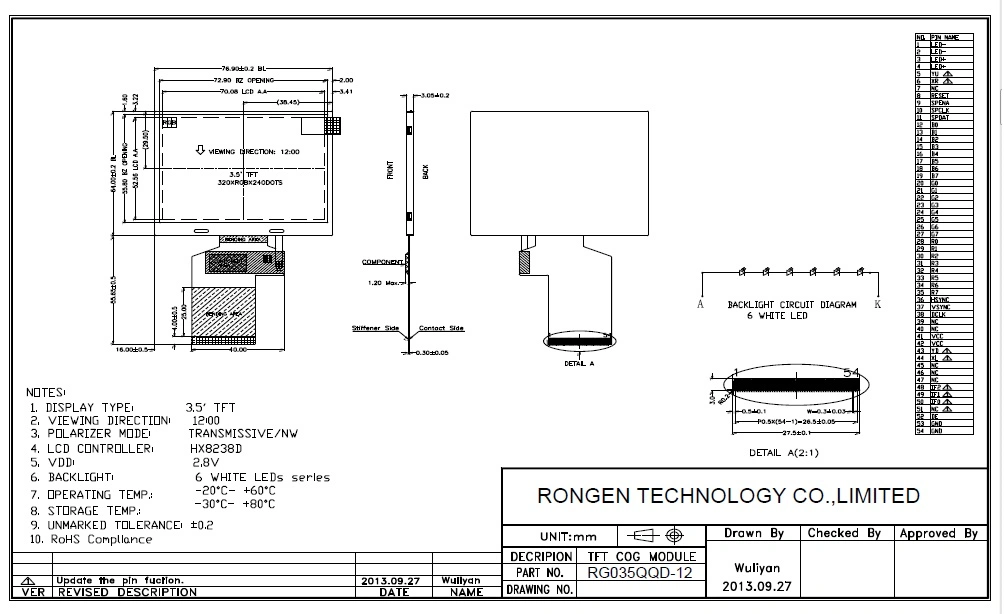

Merchanical Drawing:
3.5inch 320*240 TFT LCD Display 54pin

Application:

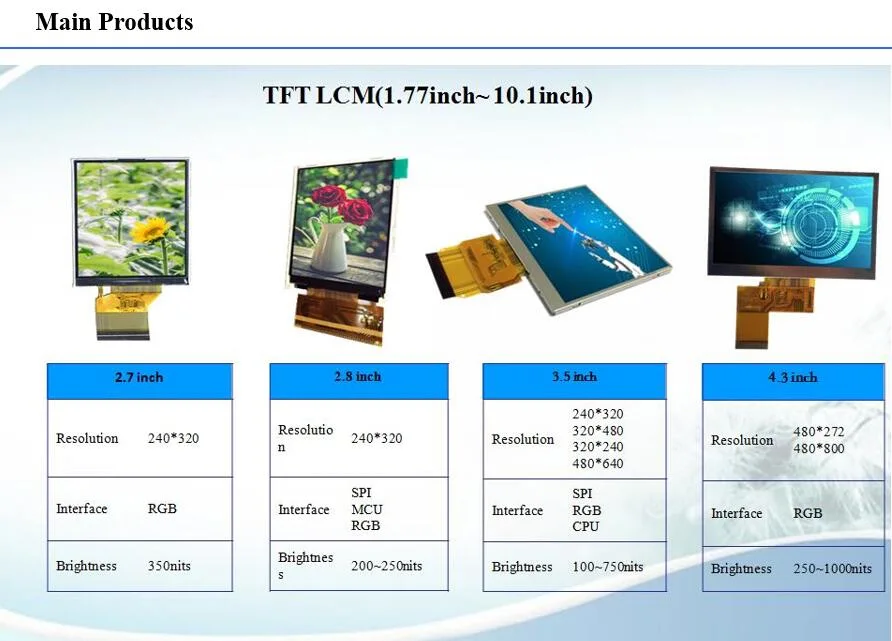

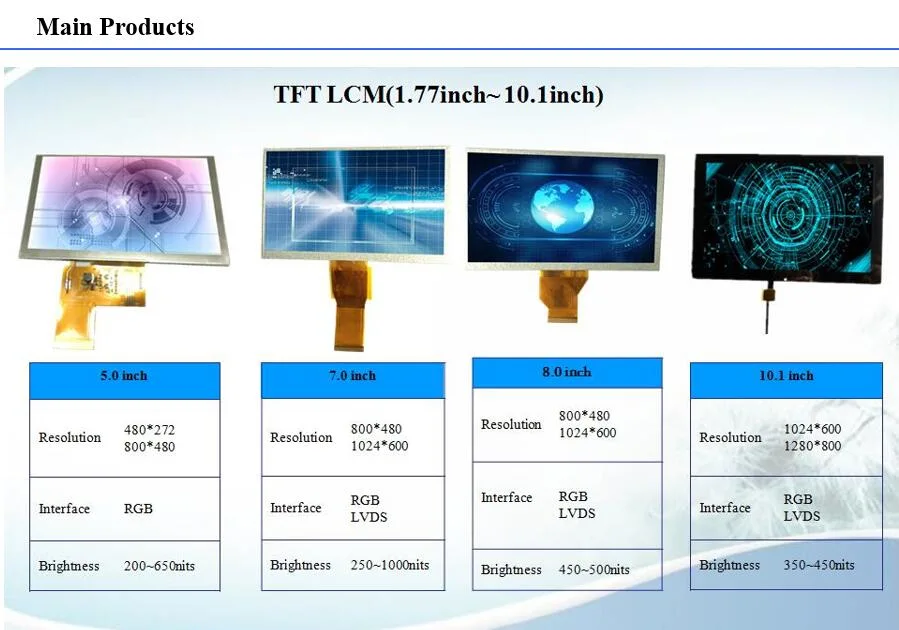

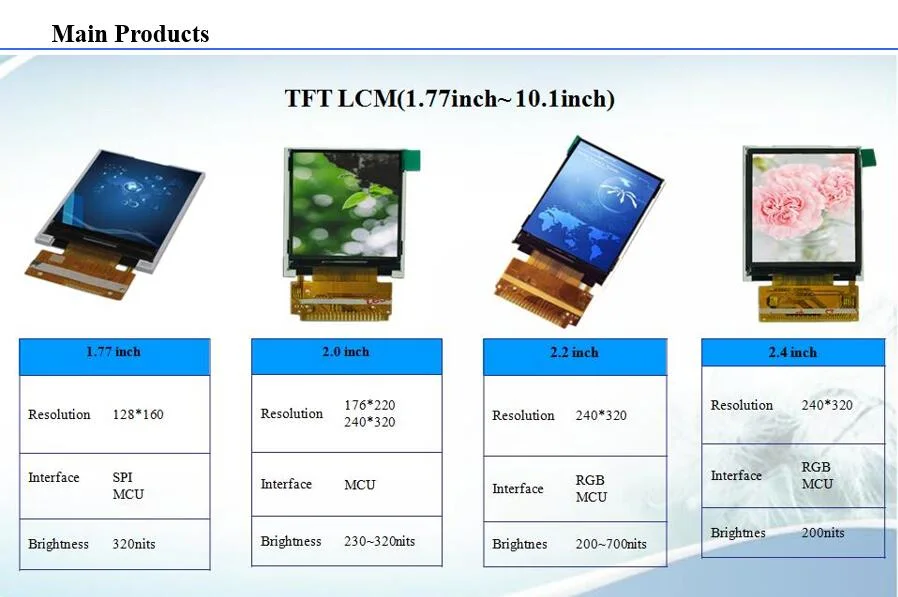

Our LCD module size are from 2.8 inch to 10.1 inch which are widely used in digital camera, DV, security monitoring, carcorder, PMP, MID and Education Learning Aid, POS Machine etc.

Product	Application
Small-size TFT LCD display (1.44inch~4.3inch)	mobile device, watch, toy, medical equipment, Office electronic equipment, camera, air-condition display, etc.
Mid-size TFT LCD display (5.0inch~10.0inch)	mobile device, medical equipment, car, automotive product, industrial control equipment, POS, PDA, Household Video doorbell, air-condition display, etc.
Big-size TFT LCD display (10inch and above)	educational product, automotive product, video door phone, Audiovisual equipment, DVD player, media play, tablet PC, Security Products, etc.
TN/STN//FSTN/OLED	elevator controller, watch, electronic product, air-condition display, all kinds of instrument, etc.
Plastic mould	industrial control equipment, electronic product, toy, Security Product, IT digital product, sports equipment, etc.
