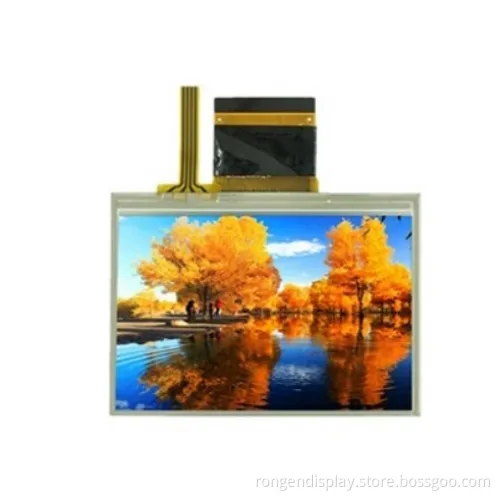

320X240 TFT Color Display Uses SSD2119 Controller IC Which Supports 6800/8080 or 3-Wire/4-Wire Spi Interface.
  • 320X240 TFT Color Display Uses SSD2119 Controller IC Which Supports 6800/8080 or 3-Wire/4-Wire Spi Interface.
  • 320X240 TFT Color Display Uses SSD2119 Controller IC Which Supports 6800/8080 or 3-Wire/4-Wire Spi Interface.
  • 320X240 TFT Color Display Uses SSD2119 Controller IC Which Supports 6800/8080 or 3-Wire/4-Wire Spi Interface.
  • 320X240 TFT Color Display Uses SSD2119 Controller IC Which Supports 6800/8080 or 3-Wire/4-Wire Spi Interface.
  • 320X240 TFT Color Display Uses SSD2119 Controller IC Which Supports 6800/8080 or 3-Wire/4-Wire Spi Interface.
  • 320X240 TFT Color Display Uses SSD2119 Controller IC Which Supports 6800/8080 or 3-Wire/4-Wire Spi Interface.
320X240 TFT Color Display Uses SSD2119 Controller IC Which Supports 6800/8080 or 3-Wire/4-Wire Spi Interface.
320X240 TFT Color Display Uses SSD2119 Controller IC Which Supports 6800/8080 or 3-Wire/4-Wire Spi Interface.
320X240 TFT Color Display Uses SSD2119 Controller IC Which Supports 6800/8080 or 3-Wire/4-Wire Spi Interface.
320X240 TFT Color Display Uses SSD2119 Controller IC Which Supports 6800/8080 or 3-Wire/4-Wire Spi Interface.
320X240 TFT Color Display Uses SSD2119 Controller IC Which Supports 6800/8080 or 3-Wire/4-Wire Spi Interface.
320X240 TFT Color Display Uses SSD2119 Controller IC Which Supports 6800/8080 or 3-Wire/4-Wire Spi Interface.

320X240 TFT Color Display Uses SSD2119 Controller IC Which Supports 6800/8080 or 3-Wire/4-Wire Spi Interface.

Get Latest Price
Min. Order:
1 Piece/Pieces
Min. Order:
1 Piece/Pieces
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Product Description
Product Description

Basic Info.

Model NO.
RG035FLT-01R
Display Technology
TFT
DOT-Matrix Graphic LCD Module Type
Row/Column-Driven Control Type
LCD Drive Mode
Multiplex Drive LCD Module
Customized
Customized
Brand
Rongen
Product Name
Rg035flt-01r
Size
3.5"
Resolution
320(RGB)*240
Luminance
450CD/M2
Contrast Ratio
500: 1(Typ. )
Aspect Ratio
4: 3
Screen Size
76.9*63.9*2.95mm
Operation Temperature
-20 ~ 70
Storage Temperature
-30 ~ 80
Transport Package
Stardard
Specification
CE, RoHS, SGS
Trademark
Rongen
Origin
China
HS Code
9013803010
Production Capacity
100, 000/Month

Product Description

Specifications
ITEM CONTENTS
 LCD Type  TFT
 Display Color  16.7M
 View Direction  12 O'Clock
 Gray Scale Inversion Direction  6 O'Clock
 Operating Temperature  -20+70 °C
 Store Temperature  -30~+80 °C
 Module Size  76.9*63.9*3.1mm
 Active Area(W*H)  70.08*52.56mm
 Number of Dots   320*240 dots
 Controller  SSD2119
 Power Supply Voltage  3.3V
 Outline  Dimensions  Refer to outline drawing
 Backlight  6× 2-LEDs(white)
 Interface RGB888
320X240 TFT Color Display Uses SSD2119 Controller IC Which Supports 6800/8080 or 3-Wire/4-Wire Spi Interface. 320X240 TFT Color Display Uses SSD2119 Controller IC Which Supports 6800/8080 or 3-Wire/4-Wire Spi Interface. 320X240 TFT Color Display Uses SSD2119 Controller IC Which Supports 6800/8080 or 3-Wire/4-Wire Spi Interface. 320X240 TFT Color Display Uses SSD2119 Controller IC Which Supports 6800/8080 or 3-Wire/4-Wire Spi Interface. 320X240 TFT Color Display Uses SSD2119 Controller IC Which Supports 6800/8080 or 3-Wire/4-Wire Spi Interface. 320X240 TFT Color Display Uses SSD2119 Controller IC Which Supports 6800/8080 or 3-Wire/4-Wire Spi Interface. 320X240 TFT Color Display Uses SSD2119 Controller IC Which Supports 6800/8080 or 3-Wire/4-Wire Spi Interface. 320X240 TFT Color Display Uses SSD2119 Controller IC Which Supports 6800/8080 or 3-Wire/4-Wire Spi Interface. 320X240 TFT Color Display Uses SSD2119 Controller IC Which Supports 6800/8080 or 3-Wire/4-Wire Spi Interface. 320X240 TFT Color Display Uses SSD2119 Controller IC Which Supports 6800/8080 or 3-Wire/4-Wire Spi Interface.


Ronen have concentrate on designing and manufacturing display products for more than 12 years.We can offer monochrome tn/stn, cstn, tft and oled displays and other display components.Our transflective tft displays are not only viewing but support operating under direct sunlight, if you are looking for sunlight readable tft displays,our product is your best choice.And our ips and ltps panels are wide viewing angles, they are widely used in automotive electronics,applications and medical instruments.
Further more, each unit bears sgs, tuv and rohs marks.The innovative flat panel display and products provided by our elite team can keep pace with such a fast-changing global marketplace.We can also meet your display specifications, and satisfy your individual request.The most competitive and satisfying products have won us high reputation.
Now ronen display co.Ltd is becoming a qualified supplier of many noted companies.Professional technical support and good service is our permanent commitment for you.

Applications
Our  lcd module size are from 2.8 inch to 10.1 inch which are widely used in digital camera, dv, security monitoring, carcorder, pmp, mid and education learning aid, pos machine etc.
Product Application
Small-size tft lcd display Mobile device,watch,toy,medical equipment, office electronic equipment,camera, air-condition display, etc.
Mid-size tft lcd display Mobile device,medical equipment,car, automotive product,industrial control equipment,pos,pda, household video doorbell, air-condition display,etc.
Big-size tft lcd display Educational product,automotive product,video door phone, audiovisual equipment,dvd player,media play,tablet pc, security products,etc.
Tn/stn//fstn/oled Elevator controller,watch,electronic product,air-condition display,all kinds of instrument,etc.
Plastic mould Industrial control equipment,electronic product,toy, security product,it digital product, sports equipment,etc.
