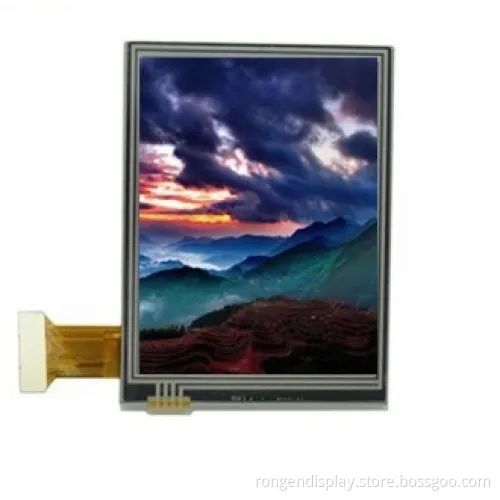

3.5" 320X240 Full Color RGB Graphic TFT LCD Display Module Offers a Capacitive Touch Screen.

3.5" 320X240 Full Color RGB Graphic TFT LCD Display Module Offers a Capacitive Touch Screen.

Get Latest Price

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Basic Info.

Model NO.

RG035GTT-08R

Display Technology

TFT

DOT-Matrix Graphic LCD Module Type

Row/Column-Driven Control Type

LCD Drive Mode

Multiplex Drive LCD Module

Customized

Size

3.5

Resolotion

240*320

Luminance

160CD/M2

Contrast Ratio

150:1

Active Area

53.64*71.52mm

Driver IC

Ili9341V

Viewingangle

55/40/40/45 (Typ. )(Cr≥ 10)

Operation Temperature

-20 ~ 70 ° C

Storage Temperature

-30 ~ 80 ° C

Electrical Interface(Data)

RGB 18 Bit Spi

Transport Package

Stardard

Specification

CE, RoHS, SGS

Trademark

Rongen

Origin

China

HS Code

8528511000

Production Capacity

100, 000/Month

Product Description

Specification

LCD Type	TFT Transflective
Driver element	a-Si TFT
Number of Dots	240(RGB)320 Dots
Pixel Arrangement	RGB Vertical Stripe
Active Area	53.64*71.52 mm
Viewing Direction	6 O'clock
Driver IC	ILI9341V
LCM Module Size(WHT)	64.085.04.11 mm
Back Light	6 White LEDS
System interface	RGB 18 bit+SPI

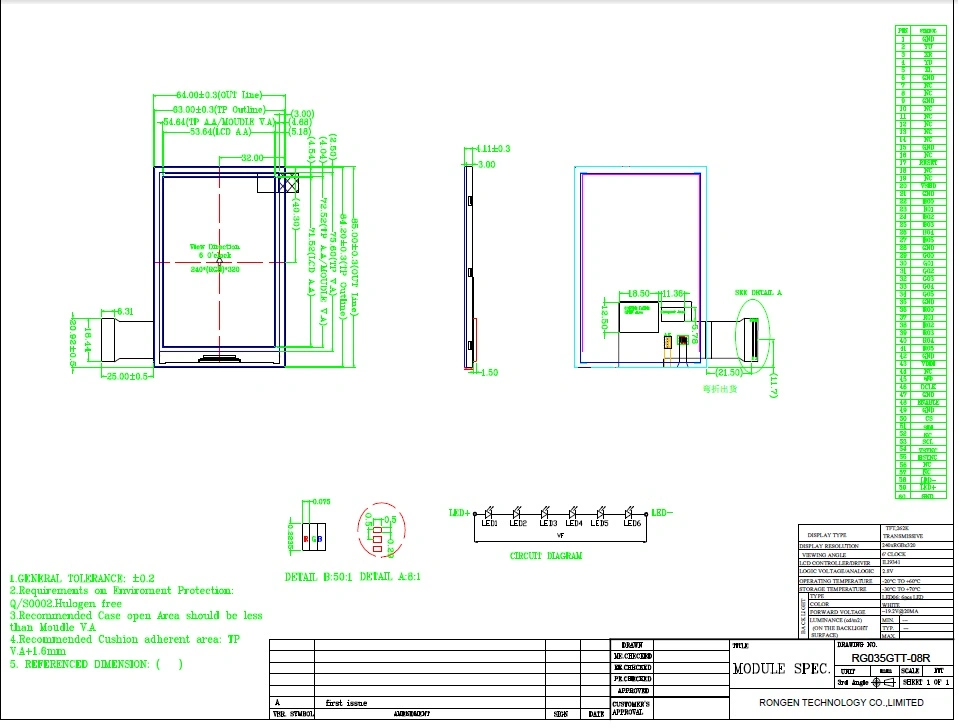

Mechanical Drawing
3.5" 320X240 Full Color RGB Graphic TFT LCD Display Module Offers a Capacitive Touch Screen.

Ronen have concentrate on designing and manufacturing display products for more than 12 years.We can offer monochrome tn/stn, cstn, tft and oled displays and other display components.Our transflective tft displays are not only viewing but support operating under direct sunlight, if you are looking for sunlight readable tft displays,our product is your best choice.And our ips and ltps panels are wide viewing angles, they are widely used in automotive electronics applications and medical instruments.
Further more, each unit bears sgs, tuv and rohs marks.The innovative flat panel display and products provided by our elite team can keep pace with such a fast-changing global marketplace.We can also meet your display specifications, and satisfy your individual request.The most competitive and satisfying products have won us high reputation.
Now ronen display co.Ltd is becoming a qualified supplier of many noted companies.Professional technical support and good service is our permanent commitment for you.

Applications
Our lcd module size are from 2.8 inch to 10.1 inch which are widely used in digital camera, dv, security monitoring, carcorder, pmp, mid and education learning aid, pos machine etc.

Product	Application
Small-size tft lcd display	Mobile device,watch,toy,medical equipment, office electronic equipment,camera, air-condition display, etc.
Mid-size tft lcd display	Mobile device,medical equipment,car, automotive product,industrial control equipment,pos,pda, household video doorbell, air-condition display,etc.
Big-size tft lcd display	Educational product,automotive product,video door phone, audiovisual equipment,dvd player,media play,tablet pc, security products,etc.
Tn/stn//fstn/oled	Elevator controller,watch,electronic product,air-condition display,all kinds of instrument,etc.
Plastic mould	Industrial control equipment,electronic product,toy, security product,it digital product, sports equipment,etc.
