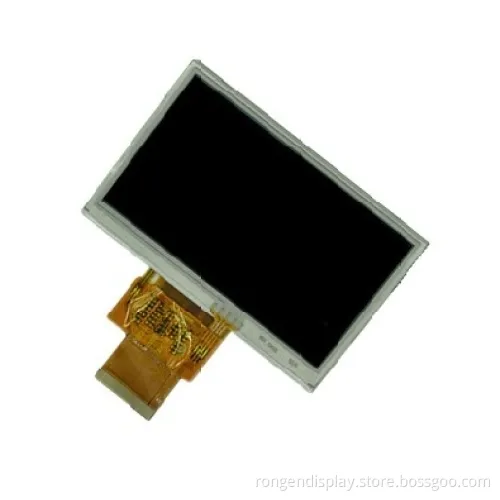

3.5 Inch TFT LCD 320X240 RGB 50pin 450CD TFT LCD Display Screen
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Info.
Model NO.
RG035FLT-01
Display Technology
TFT
DOT-Matrix Graphic LCD Module Type
Row/Column-Driven Control Type
LCD Drive Mode
Multiplex Drive LCD Module
Customized
Customized
Code Number
Rg035flt-01
Resolution
320(RGB)X240
Outer Dimension
76.9*36.9*3.1
Active Area
70.08×52.56mm
Interface
CPU+RGB+Spi
Pins
50
Angle
25/45/45/45
Luminance
450
Size
3.5′′
Response Time(Ms)
25(Yp. )(Tr+Td)
Transport Package
Standard
Specification
76.9*36.9*3.1
Trademark
Rongen
Origin
China
HS Code
9013803010
Production Capacity
100, 000/Month
Product Description

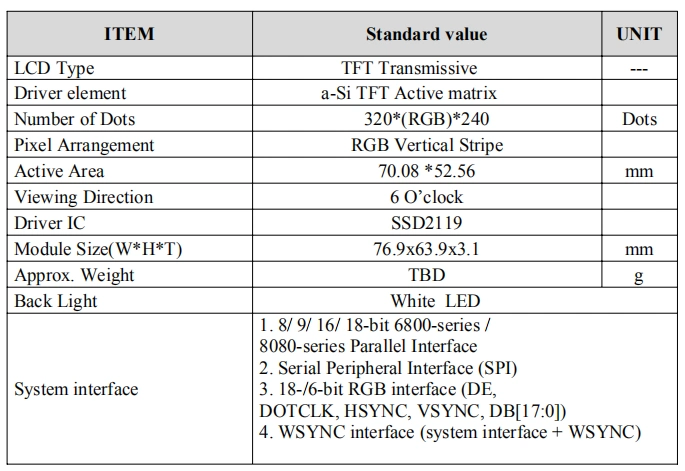

General Specification

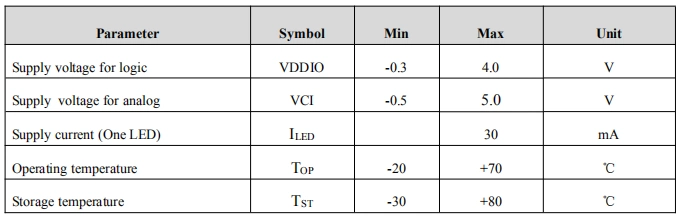

Absolute Maximum Ratingds

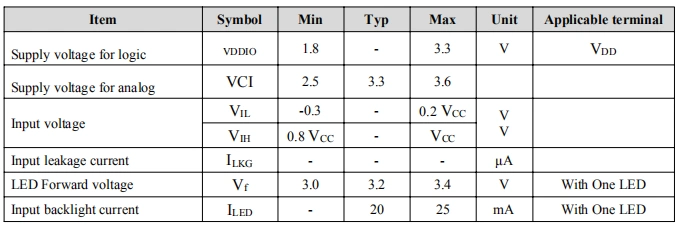

Electrical Characteristics

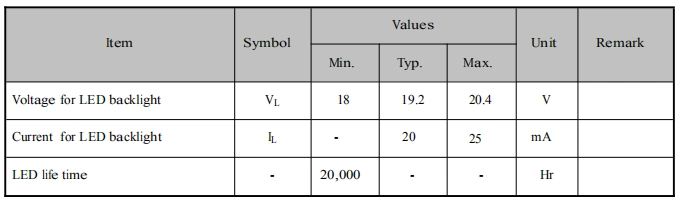

Backlight driving conditions

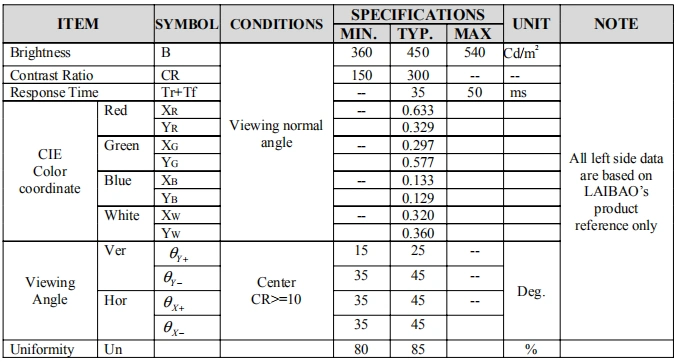

OPTICAL CHARACTERISTICS
