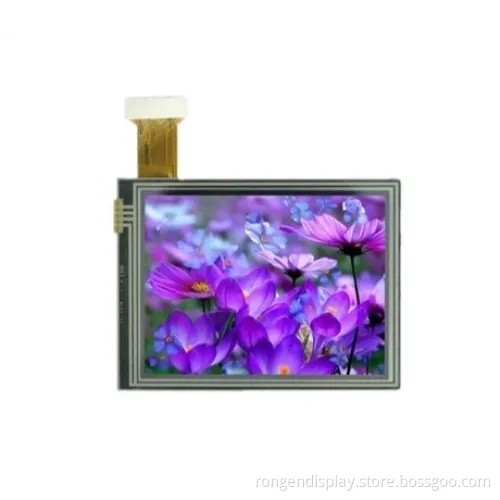

Rg035gtt-08r OEM 3.5inch Transflective LCD Display with Resistive Touch Screen
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Info.
Model NO.
RG035GTT-08R
Number of Dots
240*(RGB)*320
Brightness
90CD/M2
Contrast Ratio
150:1
Response Time
35ms
Viewing Angle Ver
40/45/55/40
Active Area
53.64X71.52
LCM Module Size(W*H*T)
64.0X85.0X4.11
Operating Temperature
-20~+70
Storage Temperature
-30~+80
Driver IC
Ili9341
Transport Package
Stardard
Specification
CE, RoHS, SGS
Trademark
Rongen
Origin
China
HS Code
9013803010
Production Capacity
10000/Month
Product Description
General specification:
Outline drawing:
Product Application:
Our LCD module size are from 2.8 inch to 10.1 inch which are widely used in digital camera, DV, security monitoring, carcorder, PMP, MID and Education Learning Aid, POS Machine etc.
| ITEM | Standard value |
| LCD Type | a-Si TFT |
| Number of Dots | 240*(RGB)*320 |
| Pixel Arrangement | RGB Vertical Stripe |
| Active Area | 53.64x71.52 |
| Viewing Direction | 6 O'clock |
| Driver IC | ILI9341 |
| LCM Module Size(W*H*T) | 64.0x85.0x4.11 |
| Approx. Weight | TBD |
| Back Light | 6 White LEDS |
| System interface | RGB 18 bit+SPI |

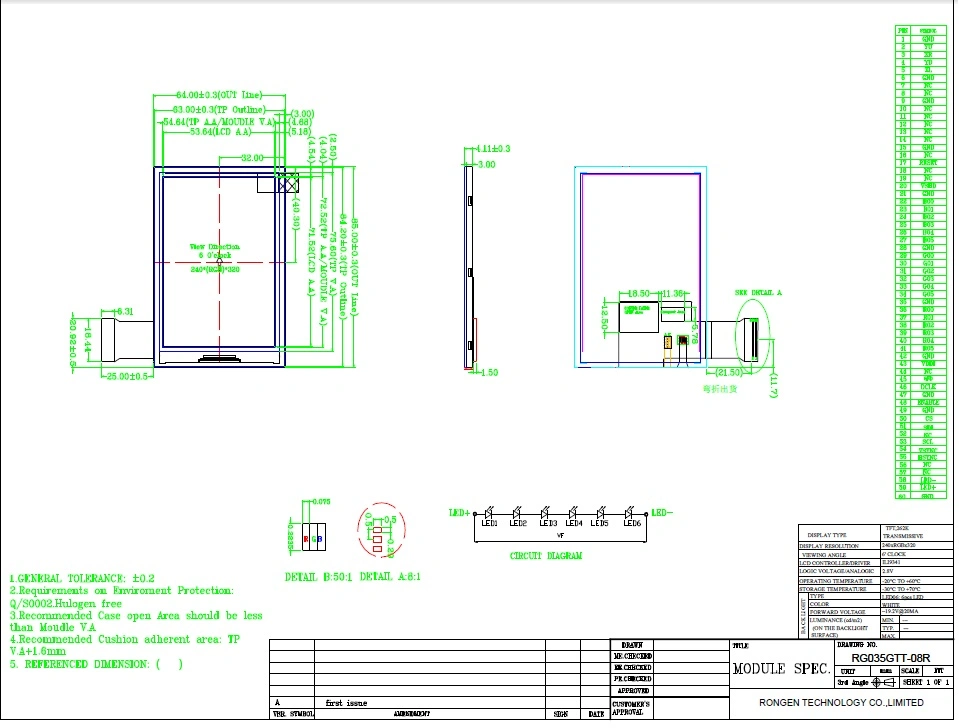

Outline drawing:
Product Application:
Our LCD module size are from 2.8 inch to 10.1 inch which are widely used in digital camera, DV, security monitoring, carcorder, PMP, MID and Education Learning Aid, POS Machine etc.
| Product | Application |
| Small-size TFT LCD display (1.44inch~4.3inch) | mobile device, watch, toy, medical equipment, Office electronic equipment, camera, air-condition display, etc. |
| Mid-size TFT LCD display (5.0inch~10.0inch) | mobile device, medical equipment, car, automotive product, industrial control equipment, POS, PDA, Household Video doorbell, air-condition display, etc. |
| Big-size TFT LCD display (10inch and above) | educational product, automotive product, video door phone, Audiovisual equipment, DVD player, media play, tablet PC, Security Products, etc. |
| TN/STN//FSTN/OLED | elevator controller, watch, electronic product, air-condition display, all kinds of instrument, etc. |
| Plastic mould | industrial control equipment, electronic product, toy, Security Product, IT digital product, sports equipment, etc. |
