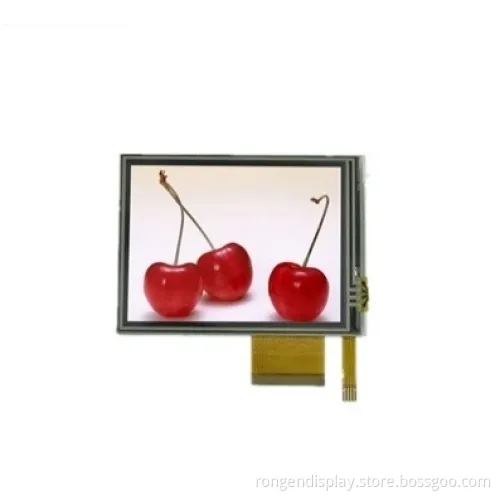

Rg035gld-11r ODM 3.5inch 240*320 Resolution with Touch Screen LCD Display

Rg035gld-11r ODM 3.5inch 240*320 Resolution with Touch Screen LCD Display

Get Latest Price

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Basic Info.

Model NO.

RG035GLD-11R

Display Technology

TFT

DOT-Matrix Graphic LCD Module Type

Row/Column-Driven Control Type

LCD Drive Mode

Multiplex Drive LCD Module

Customized

Size

3.5inch

Resolution

240(RGB)*320

Luminance

280CD/M2

Contrast Ratio

500: 1(Typ. )

Aspect Ratio

4: 3

Backlight

6-LEDs (White)

Display Color

16.7m

Viewing Direction

12 O′ Clock

Active Area(W×h)

52.56×70.08

Outline Dimension

63.5*85.5*4.2

Transport Package

Stardard

Specification

CE, RoHS, SGS

Trademark

Rongen

Origin

China

HS Code

9013803010

Production Capacity

100, 000/Month

Product Description

General Specifications
RG035GLD-11R is a TFT-LCD module. It is composed of a TFT-LCD panel,
driver IC, FPC, a back light unit. The 3.5'' display area contains 240 x 320 pixels and
can display up to 262K colors. This product accords with RoHS environmental criterion.

LCD Type	TFT -
Display color	262K
Viewing Direction	12 O'Clock
Gray scale inversion direction	6 O'Clock
Operating temperature	-20~+70 ºC
Storage temperature	-30~+80 ºC
Module size	Refer to outline drawing mm
Active Area(W×H)	52.56X70.08 mm
Number of Dots	240×320 dots
Controller	ILI9340N -
Power Supply Voltage	3.3 V
Outline Dimensions	Refer to outline drawing -
Backlight	6-LEDs (white) pcs
Weight	g
Interface	RGB666

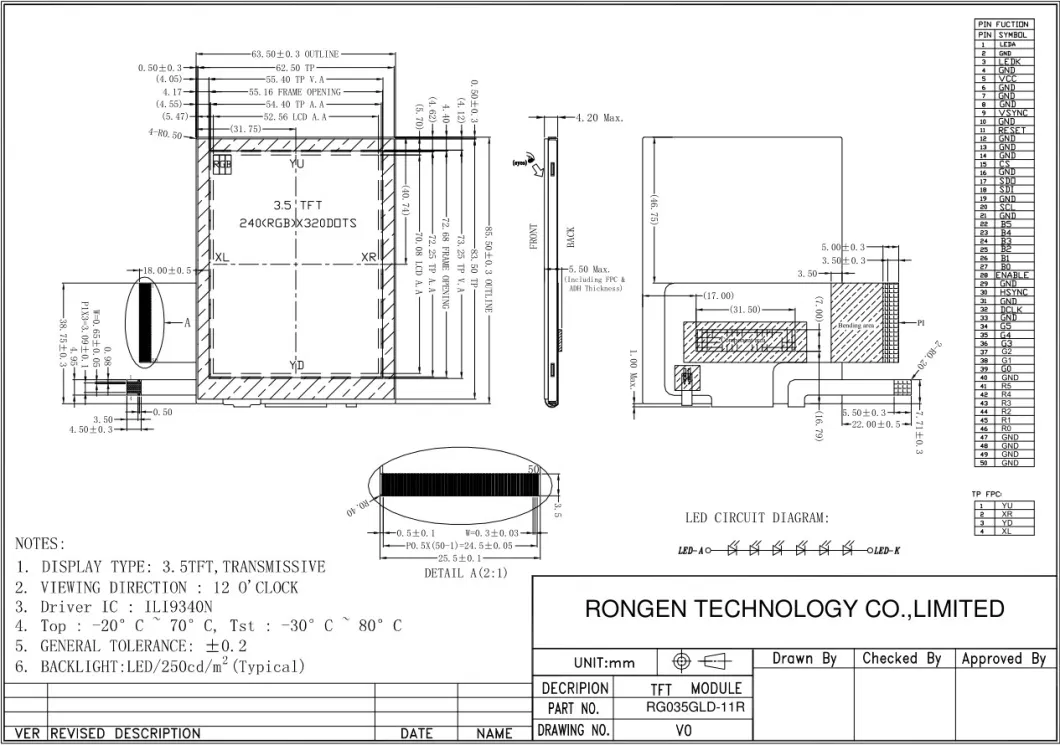

Outline drawing

Why Choose Rongen Display?

FOG automatical device can ensure the capacity of 1000,000 per month.
Reliability test and full examination to ensure the high quality of the display.
Strictly ISO quality management system.
Mature and Professional after service.
Various cooperation experience with big brands.
