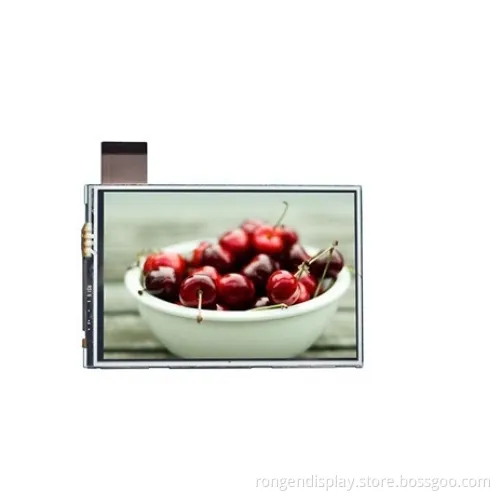

All Viewing 3.5inch 320*480 TFT LCD Screen with Touch Panel

All Viewing 3.5inch 320*480 TFT LCD Screen with Touch Panel

Get Latest Price

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Basic Info.

Model NO.

RG035EQD-03R

Resolotion

320X480

Contrast Ratio

600:1

Brightness

250CD/M2

Active Area(W×h)

48.96X73.44mm

Response Time

25ms

Viewing Angle

85/85/85/85

Display Color

262K

Operating Temperature

-20~+70

Storage Temperature

-30~+80

Backlight

6-LEDs (White)

Transport Package

Stardard

Specification

CE, RoHS, SGS

Trademark

Rongen

Origin

China

HS Code

9013803010

Production Capacity

100000/Month

Product Description

General Specifications:
RG035EQD-03R is a TFT-LCD module. It is composed of a TFT-LCD panel,
driver IC, FPC, TP, a back light unit. The 3.5'' display area contains 320 x 480pixels
and can display up to 262K colors. This product accords with RoHS environmental criterion.

Item	Contents
LCD Type	TFT
Display color	262K
Viewing Direction	Free(IPS)
Operating temperature	-20~+70
Storage temperature	-30~+80
Module size	Refer to outline drawing
Active Area(W×H)	48.96X73.44
Number of Dots	320×480
Power Supply Voltage	2.8
Outline Dimensions	Refer to outline drawing
Backlight	6-LEDs (white)
Interface	RGB-18bit

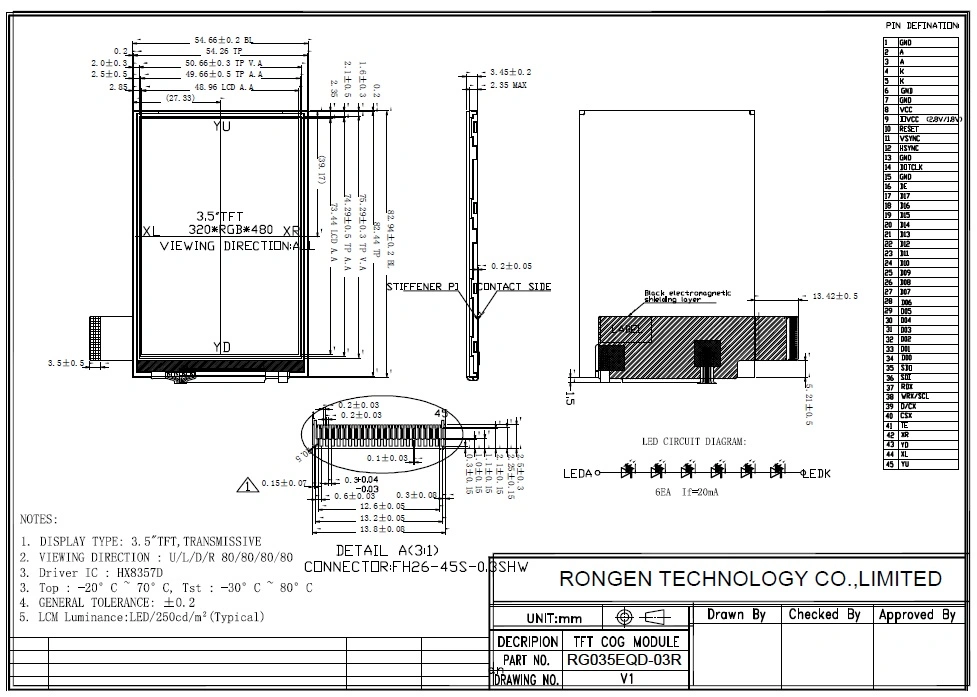

Outline Drawing:

All Viewing 3.5inch 320*480 TFT LCD Screen with Touch Panel
Applications:
Our LCD module size are from 2.8 inch to 10.1 inch which are widely used in digital camera, DV,
security monitoring, carcorder, PMP, MID and Education Learning Aid, POS Machine etc.

Product	Application
Small-size TFT LCD display (1.44inch~4.3inch)	mobile device, watch, toy, medical equipment, Office electronic equipment, camera, air-condition display, etc.
Mid-size TFT LCD display (5.0inch~10.0inch)	mobile device, medical equipment, car, automotive product, industrial control equipment, POS, PDA, Household Video doorbell, air-condition display, etc.
Big-size TFT LCD display (10inch and above)	educational product, automotive product, video door phone, Audiovisual equipment, DVD player, media play, tablet PC, Security Products, etc.
TN/STN//FSTN/OLED	elevator controller, watch, electronic product, air-condition display, all kinds of instrument, etc.
Plastic mould	industrial control equipment, electronic product, toy, Security Product, IT digital product, sports equipment, etc.
