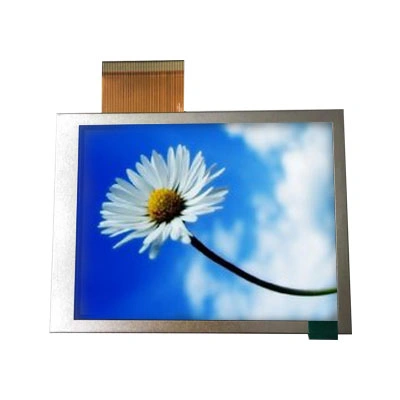

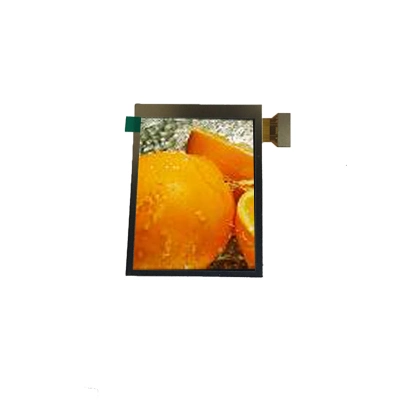

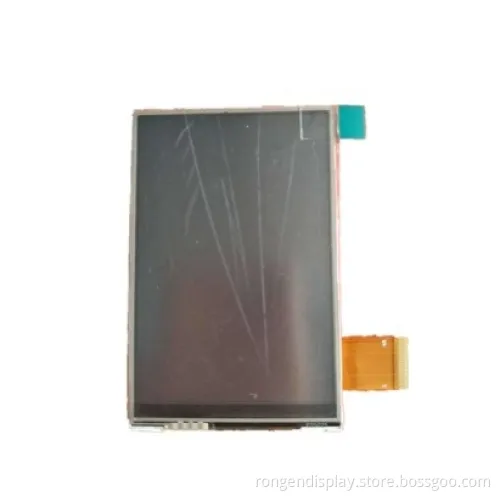

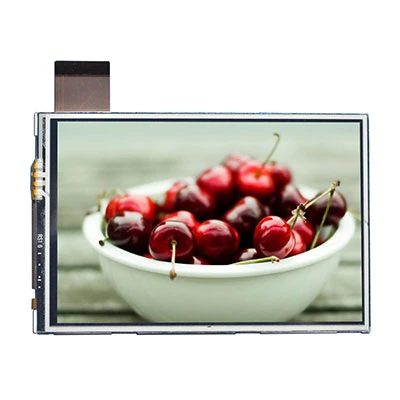

3.5" TFT LCD Screen Module, 480X320 TFT LCD Display
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Info.
Model NO.
RG-T035SHI-12P
Display Technology
TFT
DOT-Matrix Graphic LCD Module Type
Row/Column-Driven
LCD Drive Mode
Static Drive LCD Module
Customized
Customized
Pins
45
Transport Package
Stardard
Specification
Rohs,
Trademark
RONGEN
Origin
China
HS Code
9013803010
Production Capacity
40, 000/Month
Product Description
SPEC
| Item | Contents |
| LCD Type | TFT |
| Display color | 262K |
| Viewing Direction | 6 O'Clock |
| Grey scale inversion | 12 O'Clock |
| Operating temperature | -20~+70 |
| Storage temperature | -30~+80 ºC |
| Module size | Refer to outline drawing |
| Active Area(W×H) | 48.96X73.44 mm |
| Number of Dots | 320*480 dots |
| Controller | ILI9488 |
| Power Supply Voltage | 3.3 V |
| Outline Dimensions | Refer to outline drawing |
| Backlight | 6-LEDs (white)/pcs |
| Interface | RGB-18bit |

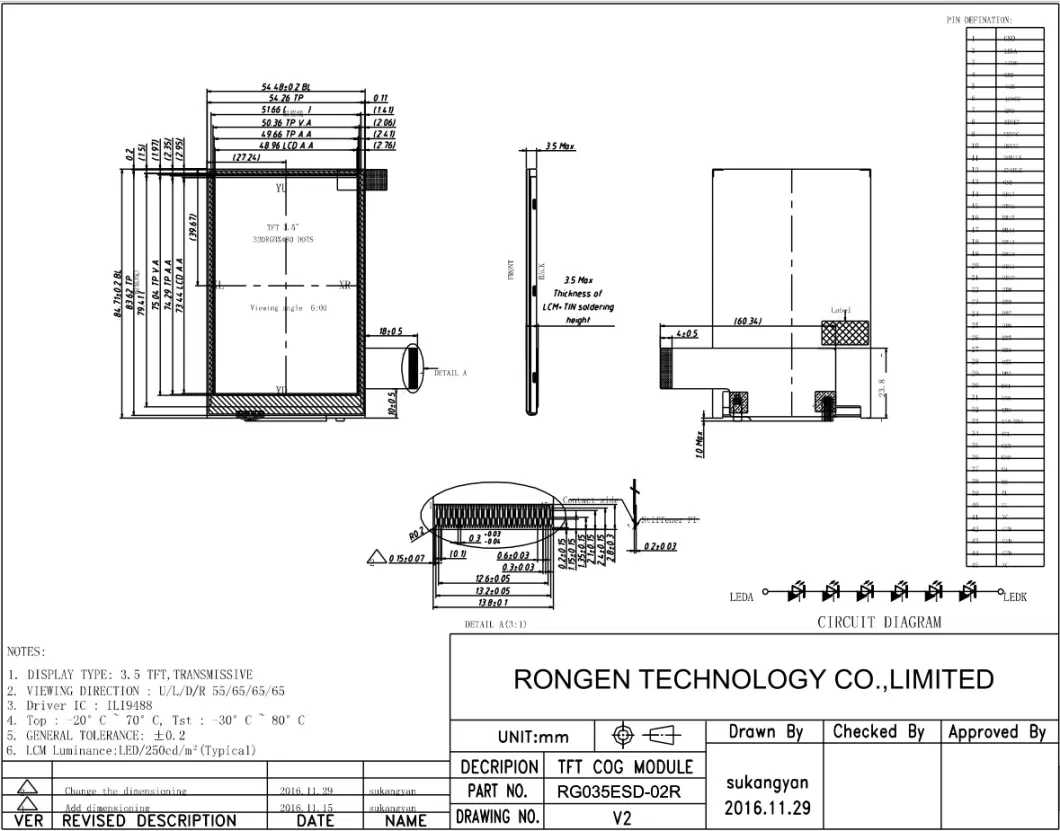

Outling drawing
