3.5inch TFT LCD Screen LCD Display with Touch Panel
  • 3.5inch TFT LCD Screen LCD Display with Touch Panel
  • 3.5inch TFT LCD Screen LCD Display with Touch Panel
  • 3.5inch TFT LCD Screen LCD Display with Touch Panel
  • 3.5inch TFT LCD Screen LCD Display with Touch Panel
  • 3.5inch TFT LCD Screen LCD Display with Touch Panel
  • 3.5inch TFT LCD Screen LCD Display with Touch Panel
3.5inch TFT LCD Screen LCD Display with Touch Panel
3.5inch TFT LCD Screen LCD Display with Touch Panel
3.5inch TFT LCD Screen LCD Display with Touch Panel
3.5inch TFT LCD Screen LCD Display with Touch Panel
3.5inch TFT LCD Screen LCD Display with Touch Panel
3.5inch TFT LCD Screen LCD Display with Touch Panel

3.5inch TFT LCD Screen LCD Display with Touch Panel

Get Latest Price
Min. Order:
1 Piece/Pieces
Min. Order:
1 Piece/Pieces
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Product Description
Product Description

Basic Info.

Model NO.
RG-T035SHI-12P
Widescreen
Not Widescreen
Response Time
10ms
3D
Not 3D
Interface Type
RGB-18bit
Resolution
320*480
Outline Size
54.48*84.71*3.05
Pin
45pin Soldering Type
Luminance
280 CD/M2
Colors
262k
Operating Temperature
-20~70
Controller
Ili9488
Transport Package
Black Box
Specification
CE, RoHS, SGS
Trademark
Rongen
Origin
China
HS Code
9013803010
Production Capacity
10, 000/Month

Product Description

3.5inch TFT LCD Screen LCD Display with Touch Panel3.5inch TFT LCD Screen LCD Display with Touch Panel3.5inch TFT LCD Screen LCD Display with Touch Panel

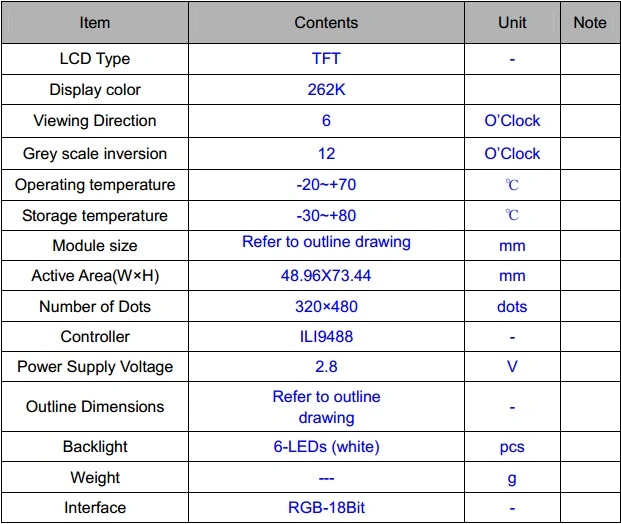

General Specifications

RG-T035SHI-06P is a TFT-LCD module. It is composed of a TFT-LCD panel,

driver IC, FPC, TP, a back light unit. The 3.5" display area contains 320 x 480pixels
and can display up to 262K colors. This product accords with RoHS environmental
criterion.

3.5inch TFT LCD Screen LCD Display with Touch Panel

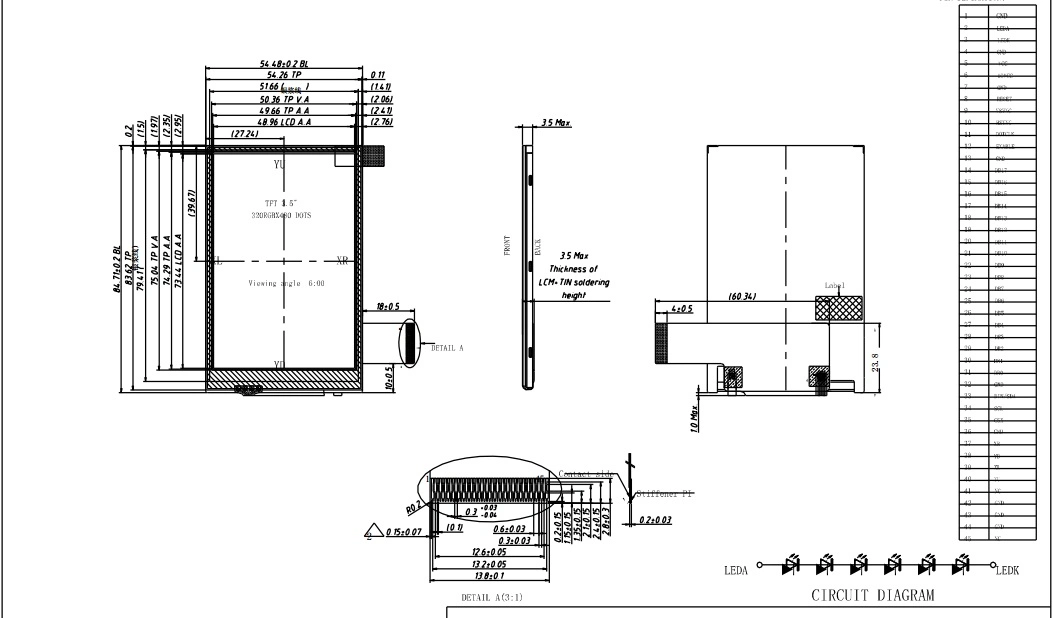

Outline Drawing
3.5inch TFT LCD Screen LCD Display with Touch Panel
