3.5" Diagonal LCD TFT Display; 320X480 Resolution, 18-Bit

3.5" Diagonal LCD TFT Display; 320X480 Resolution, 18-Bit

Get Latest Price

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Basic Info.

Model NO.

RG-T035GPR-02P

Display Technology

TFT

DOT-Matrix Graphic LCD Module Type

Row/Column-Driven Control Type

LCD Drive Mode

Multiplex Drive LCD Module

Customized

Size

3.5"

Resolution

480(RGB) X 272

Luminance

350CD/M2

Contrast Ratio

500: 1(Typ. )

Aspect Ratio

4: 3

Backlight

6 LEDs White

Pins

40 Pin

Active Area

77.76(W) X 43.52 (H)

Dimensional Outline

85.70 (W) X55.40(H) X2.25(T)

Operating Temperaature

-20 ~ 70

Transport Package

Stardard

Specification

CE, RoHS, SGS

Trademark

Rongen

Origin

China

HS Code

8528511000

Production Capacity

100, 000/Month

Product Description

General Specification

This single-display module is suitable for use in Multidedia Player products.
The LCD adopts one backlight with High brightness 6-lamps white LED.
1) Construction: 3.51" а-Si color TFT-LCD ,White LED backlight, FPC.
2) LCD:
2.1 Amorphous-TFT 3.51-inch display, transmissive, normally white type.
2.2 480(RGB)×272dots Matrix.
2.3 Narrow-contact ledge technique.
2.4 LCD Driver IC: OTA5180A× 1.

Item	Specifications
Dimensional outline	85.70 (W) ×55.40(H)×2.25(T) mm
Active area	77.76(W) ×43.52 (H) mm
Pixel size	162(W) ×160(H) um
Resolution	480(RGB) × 272 pixel
Controller	OTA5180A-C5
Interface	24 bit RGB
Video signal interface	Parallel RGB

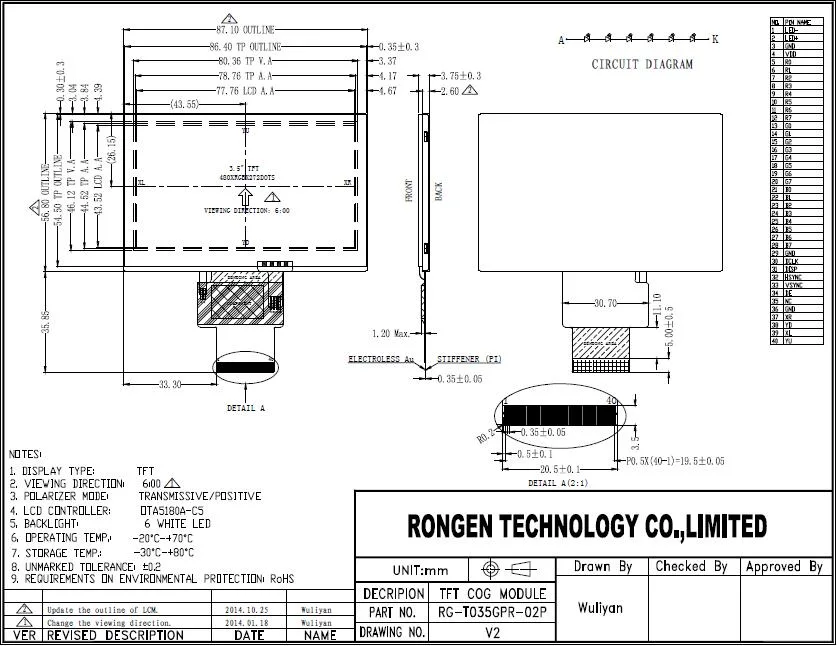

Merchanical Drawing
