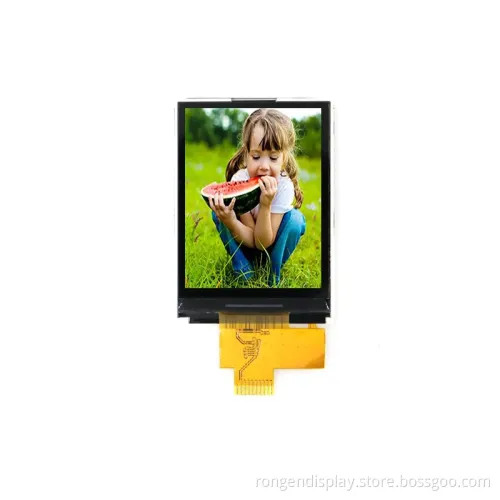

Ronen 2.4 Inch 240X320 TFT LCD Display with Hx8347I

Ronen 2.4 Inch 240X320 TFT LCD Display with Hx8347I

Get Latest Price

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Basic Info.

Model NO.

RG-T024SQH-02

Display Technology

TFT

DOT-Matrix Graphic LCD Module Type

Row/Column-Driven Control Type

LCD Drive Mode

Multiplex Drive LCD Module

Customized

Brand

Rongen

Product Name

Rg-T024sqh-02

Size

2.4inch

Transport Package

Stardard

Specification

CE, RoHS, SGS

Trademark

Rongen

Origin

China

HS Code

9013803010

Production Capacity

100, 000/Month

Product Description

2.4 inch lcd display 240x320 tft lcd

General specifications:

Item	Contents
LCD Type	TFT
Display Color	262K
View Direction	12 O'Clock
Gray Scale Inversion Direction	6 O'Clock
Operating Temperature	-20+70 °C
Store Temperature	-30~+80 °C
Module Size	Refer to outline drawing
Active Area(W×H)	36.72×48.96mm
Number of Dots	240×320dots
Controller	HX8347I
Power Supply Voltage	3.3V
Outline Dimensions	Refer to outline drawing
Backlight	LEDs(white)
Weight
Interface	RGB888

Product Application:

Our LCD module size are from 2.8 inch to 10.1 inch which are widely used in digital camera, DV, security monitoring, carcorder, PMP, MID and Education Learning Aid, POS Machine etc.

Product	high luminance 2.4 inch tft lcd module 2.4 tft lcd screen 2.4 wvga tft lcd
Small-size TFT LCD display	mobile device,watch,toy,medical equipment, Office electronic equipment,camera, air-condition display, etc.
Mid-size TFT LCD display	mobile device,medical equipment,car, automotive product,industrial control equipment,POS,PDA, Household Video doorbell, air-condition display,etc.
Big-size TFT LCD display	educational product,automotive product,video door phone, Audiovisual equipment,DVD player,media play,tablet PC, Security Products,etc.
TN/STN//FSTN/OLED	elevator controller,watch,electronic product,air-condition display,all kinds of instrument,etc.
Plastic mould	industrial control equipment,electronic product,toy, Security Product,IT digital product, sports equipment,etc.

Related Products

Product size	Model	Resolution	LCD Active Area (mm)
2.8 inch TFT LCD Modules	RG-T028HQH-01	240 x 320	110.88(W) x 62.83(H)
3.5 inch TFT LCD Modules	RG-T035MLH-03	320 x 240	110.88(W) x 62.83(H)
4.3 inch TFT LCD Modules	RG-T043QPH-06	480 x 272	95.04 (W) x 53.86(H)

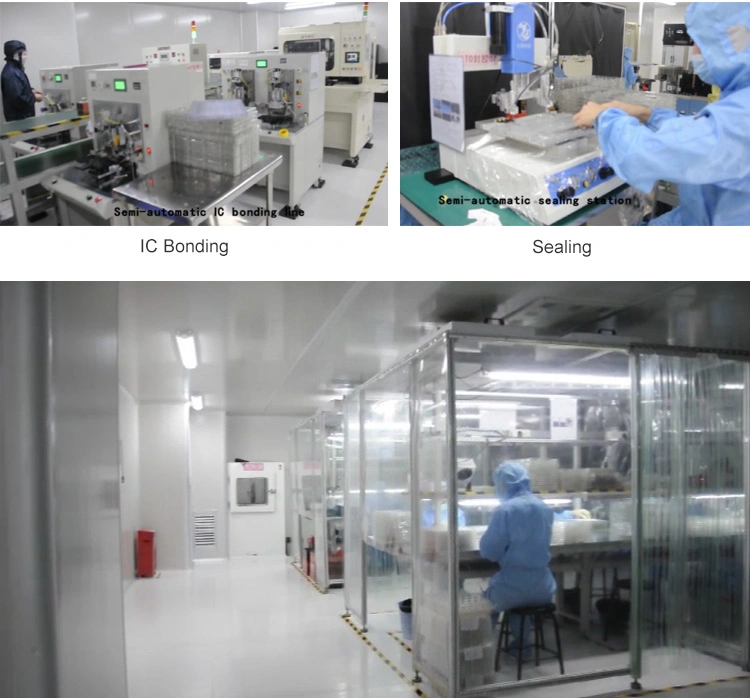

Company Information:
