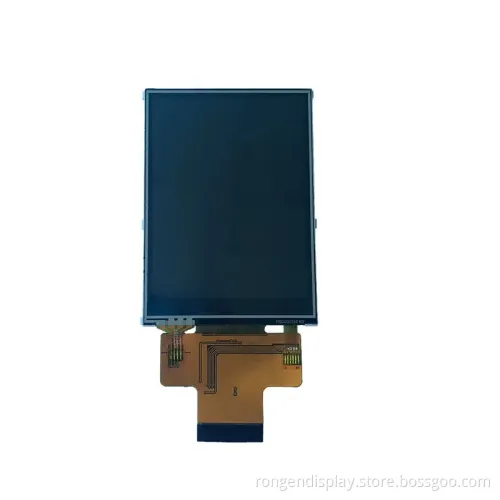

Ronen Rg024ght-08 for Electron Industry Equipment 2.4 Inch 240*320 High Brightness TFT LCD Screen
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Info.
Model NO.
RG024GHT-08
Display Technology
TFT
DOT-Matrix Graphic LCD Module Type
Row/Column-Driven Control Type
LCD Drive Mode
Multiplex Drive LCD Module
Customized
Customized
Resolution
240*320
Luminance
950 CD/M2
Contrast Ratio
500:1
Active Area
36.72*48.96 mm
Outline Size
42.72*59.46*2.8 mm
Operation Temperature
-20~70
Storage Temperature
-30~80
Interface Type
16 Bit MCU
Connector
45pin
Colors
65K
Transport Package
Stardard
Specification
CE, RoHS, SGS
Trademark
Ronen
Origin
China
HS Code
9013803010
Production Capacity
100, 000/Month
Product Description
General Specification
| Item | Contents |
| LCD TYPE | TFT/TRANSMISSIVE |
| MODULE SIZE (W*H*T) | 42.72x59.46x2.8 MM |
| ACTIVE SIZE (W*H) | 36.72*48.96 MM |
| PIXEL PITCH (W*H) | 0.153*0.153 MM |
| NUMBER OF DOTS | 240*320 |
| DIVER IC | ILI9341V |
| INTERFACE TYPE | 16 BIT MCU |
| TOP POLARIZER TYPE | GLARE |
| RECOMMEND VIEWING DIRECTION | 6 O'CLOCK |
| GRAY SCALE INVERSION DIRECTION | 12 O'CLOCK |
| COLORS | 65K |
| BACKLIGHT TYPE | 5-DIES WHITE LED |
| TOUCH PANEL TYPE | WITHOUT |

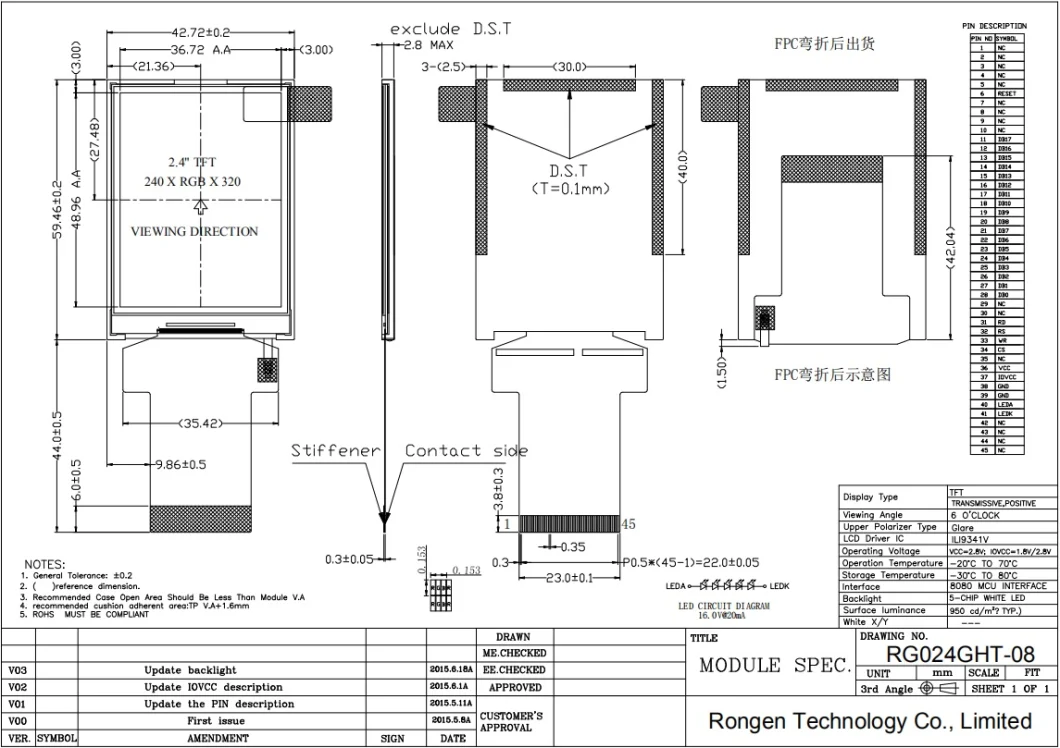

Mechanical Drawing
Product Application
Education LeOur LCD module size are from 2.8 inch to 10.1 inch which are widely used in digital camera, DV, security monitoring, carcorder, PMP, MID and arning Aid, POS Machine etc.
Product Application
Education LeOur LCD module size are from 2.8 inch to 10.1 inch which are widely used in digital camera, DV, security monitoring, carcorder, PMP, MID and arning Aid, POS Machine etc.
| Product | Application |
| Small-size TFT LCD display (1.44inch~4.3inch) | mobile device, watch, toy, medical equipment, Office electronic equipment, camera, air-condition display, etc. |
| Mid-size TFT LCD display (5.0inch~10.0inch) | mobile device, medical equipment, car, automotive product, industrial control equipment, POS, PDA, Household Video doorbell, air-condition display, etc. |
| Big-size TFT LCD display (10inch and above) | educational product, automotive product, video door phone, Audiovisual equipment, DVD player, media play, tablet PC, Security Products, etc. |
| TN/STN//FSTN/OLED | elevator controller, watch, electronic product, air-condition display, all kinds of instrument, etc. |
| Plastic mould | industrial control equipment, electronic product, toy, Security Product, IT digital product, sports equipment, etc. |
