Ronen Rg024gct-04 240*320 Display with Spi 40 Pin Interface 2.4inch TFT LCD
  • Ronen Rg024gct-04 240*320 Display with Spi 40 Pin Interface 2.4inch TFT LCD
  • Ronen Rg024gct-04 240*320 Display with Spi 40 Pin Interface 2.4inch TFT LCD
  • Ronen Rg024gct-04 240*320 Display with Spi 40 Pin Interface 2.4inch TFT LCD
  • Ronen Rg024gct-04 240*320 Display with Spi 40 Pin Interface 2.4inch TFT LCD
  • Ronen Rg024gct-04 240*320 Display with Spi 40 Pin Interface 2.4inch TFT LCD
  • Ronen Rg024gct-04 240*320 Display with Spi 40 Pin Interface 2.4inch TFT LCD
Ronen Rg024gct-04 240*320 Display with Spi 40 Pin Interface 2.4inch TFT LCD
Ronen Rg024gct-04 240*320 Display with Spi 40 Pin Interface 2.4inch TFT LCD
Ronen Rg024gct-04 240*320 Display with Spi 40 Pin Interface 2.4inch TFT LCD
Ronen Rg024gct-04 240*320 Display with Spi 40 Pin Interface 2.4inch TFT LCD
Ronen Rg024gct-04 240*320 Display with Spi 40 Pin Interface 2.4inch TFT LCD
Ronen Rg024gct-04 240*320 Display with Spi 40 Pin Interface 2.4inch TFT LCD

Ronen Rg024gct-04 240*320 Display with Spi 40 Pin Interface 2.4inch TFT LCD

Get Latest Price
Min. Order:
1 Piece/Pieces
Min. Order:
1 Piece/Pieces
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Product Description
Product Description

Basic Info.

Model NO.
RG024GCT-04
Display Technology
TFT
DOT-Matrix Graphic LCD Module Type
Row/Column-Driven Control Type
LCD Drive Mode
Static Drive LCD Module
Customized
Customized
Resolution
240*320
Brightness
460CD/M2
Contrast Ratio
250:1
Active Area(W×h)
36.72*48.96
Controller
Ili9341V
Interface
Spi
Operating Temperature
-20~+70
Storage Temperature
-30~+80
Transport Package
Standard
Specification
CE, RoHS, SGS
Trademark
Rongen
Origin
China
HS Code
9013803010
Production Capacity
100000/Month

Product Description

Specification:
Item  Contents Unit
LCD TYPE  TFT/TRANSMISSIVE
MODULE SIZE (W*H*T)  42.72x60.26x2.46 MM
ACTIVE SIZE (W*H)  36.72*48.96 MM
PIXEL PITCH (W*H)  0.153*0.153 MM
NUMBER OF DOTS  240*320
DIVER IC  ILI9341V
INTERFACE TYPE  SPI
TOP POLARIZER TYPE  ANTI-GLARE
RECOMMEND VIEWING DIRECTION  6 O'CLOCK
GRAY SCALE INVERSION DIRECTION  12 O'CLOCK
BACKLIGHT TYPE  4-DIES WHITE LED
TOUCH PANEL TYPE  WITHOUT
Ronen Rg024gct-04 240*320 Display with Spi 40 Pin Interface 2.4inch TFT LCD Ronen Rg024gct-04 240*320 Display with Spi 40 Pin Interface 2.4inch TFT LCD Ronen Rg024gct-04 240*320 Display with Spi 40 Pin Interface 2.4inch TFT LCD Ronen Rg024gct-04 240*320 Display with Spi 40 Pin Interface 2.4inch TFT LCD Ronen Rg024gct-04 240*320 Display with Spi 40 Pin Interface 2.4inch TFT LCD Ronen Rg024gct-04 240*320 Display with Spi 40 Pin Interface 2.4inch TFT LCD Ronen Rg024gct-04 240*320 Display with Spi 40 Pin Interface 2.4inch TFT LCD Ronen Rg024gct-04 240*320 Display with Spi 40 Pin Interface 2.4inch TFT LCD Ronen Rg024gct-04 240*320 Display with Spi 40 Pin Interface 2.4inch TFT LCD Ronen Rg024gct-04 240*320 Display with Spi 40 Pin Interface 2.4inch TFT LCD

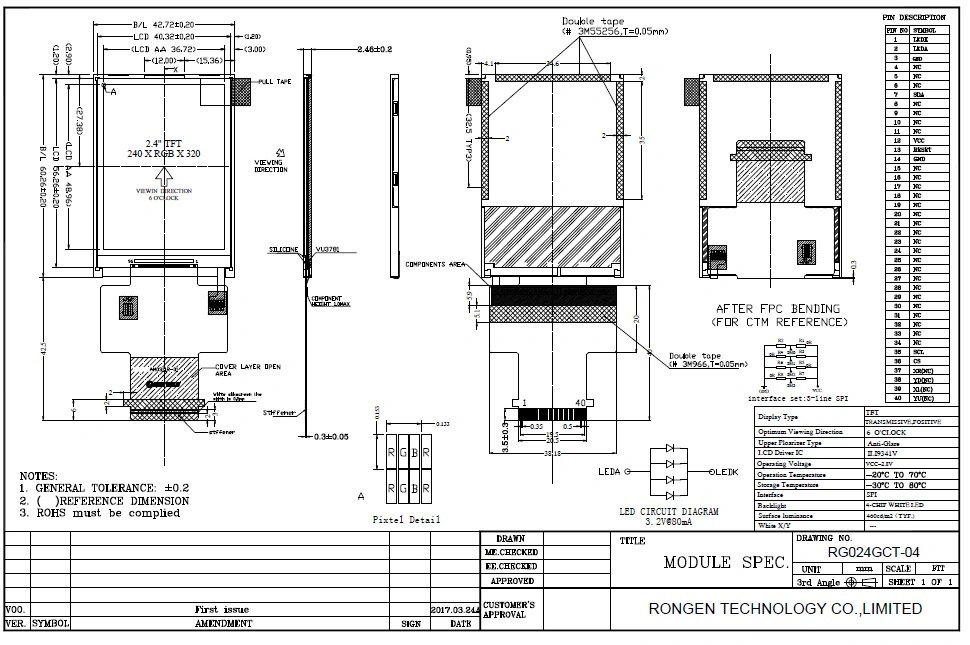

Outline drawing:

Ronen Rg024gct-04 240*320 Display with Spi 40 Pin Interface 2.4inch TFT LCD
