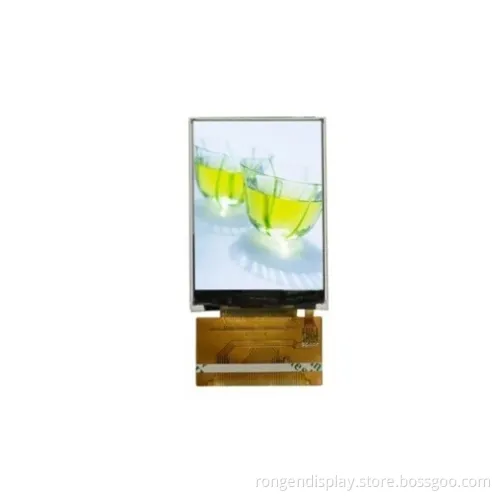

ODM LCD Display 2.4inch 240*320 Touch Screen with MCU Interface

ODM LCD Display 2.4inch 240*320 Touch Screen with MCU Interface

Get Latest Price

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Basic Info.

Model NO.

RG024GSD-01

Display Technology

TFT

DOT-Matrix Graphic LCD Module Type

Row/Column-Driven Control Type

LCD Drive Mode

Static Drive LCD Module

Customized

Resolution

240*320

Brightness

220CD/M2

Contrast Ratio

500:1

Active Area(W×h)

36.72X48.96

Controller

St7789V

Backlight

1X4-LEDs (White)

Interface

MCU--8bit

Display Color

262K

Operating Temperature

-20~+70

Storage Temperature

-30~+80

Transport Package

Standard

Specification

CE, RoHS, SGS

Trademark

Rongen

Origin

China

HS Code

9013803010

Production Capacity

100000/Month

Product Description

Specification:

Item	Contents
LCD Type	TFT
Display color	262K
Viewing Direction	6 O'Clock
Gray scale inversion direction	12 O'Clock
Operating temperature	-20~+70 ºC
Storage temperature	-30~+80 ºC

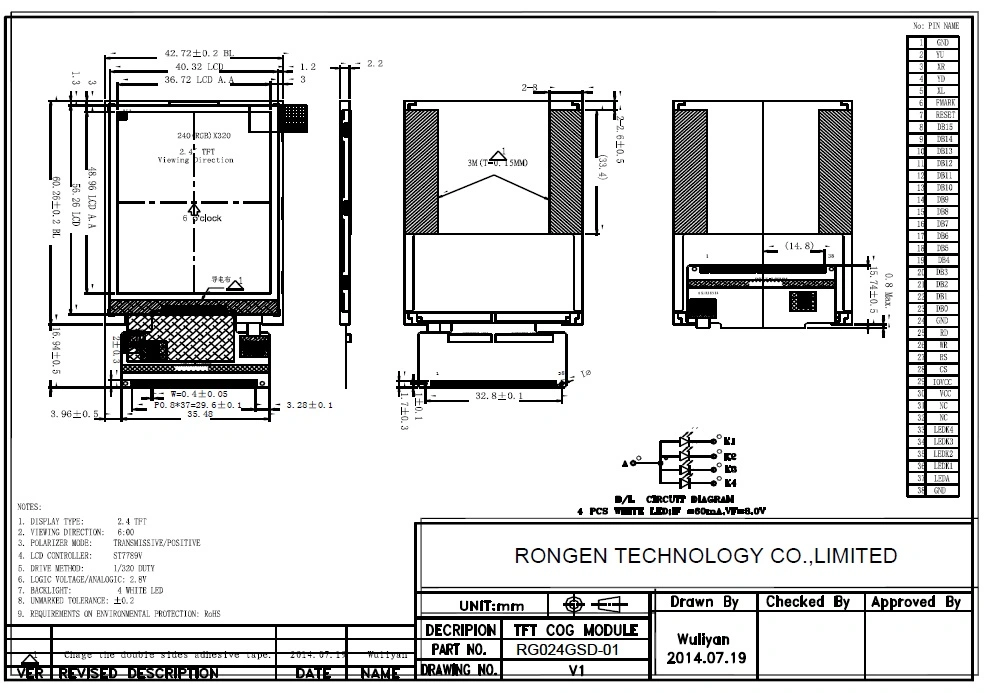

Module size	Refer to outline drawing
Active Area(W×H)	36.72X48.96
Number of Dots	240×320
Controller	ST7789V
Power Supply Voltage	2.8V
Outline Dimensions	Refer to outline drawing
Backlight	1X4-LEDs (white) pcs
Interface	MCU--8bit
