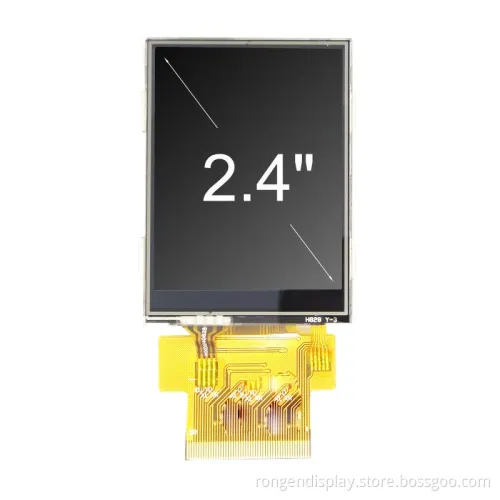

Professional ODM LCD Module 2.4inch 240*320 TFT LCD Display
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
Your message must be between 20 to 2000 characters
Contact NowBasic Info.
Product Description
| Item | Item |
| LCD TYPE | TFT/TRANSMISSIVE |
| MODULE SIZE (W*H*T) | 41.04*56.45*2.85 mm |
| ACTIVE SIZE (W*H) | 33.84*45.12 mm |
| PIXEL PITCH (W*H) | 0.141*0.141 mm |
| NUMBER OF DOTS | 240*320 |
| DIVER IC | ILI9341V |
| INTERFACE TYPE | 18-BIT RGB/MCU |
| TOP POLARIZER TYPE | ANTI-GLARE |
| RECOMMEND VIEWING DIRECTION | 6 o'clock |
| GRAY SCALE INVERSION DIRECTION | 12 o'clock |
| COLORS | 262K |
| BACKLIGHT TYPE | 3-DIES WHITE LED |

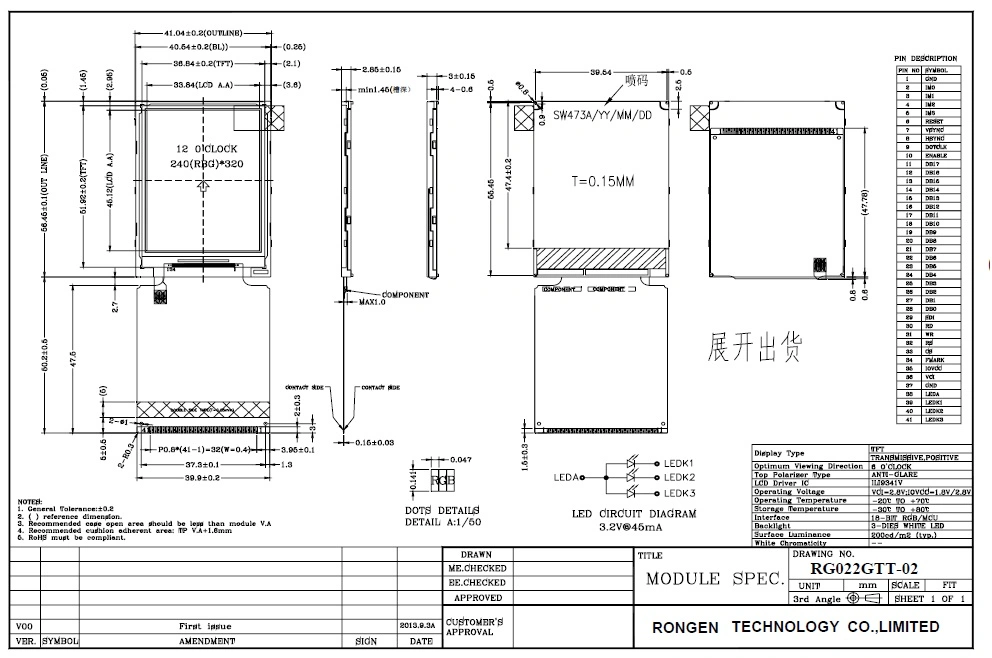

Outline drawing:
Our advantages:
