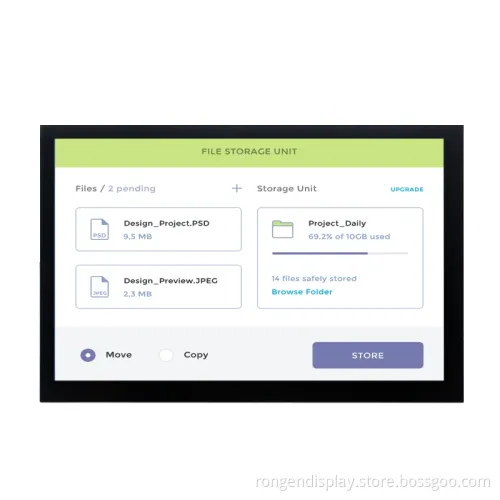

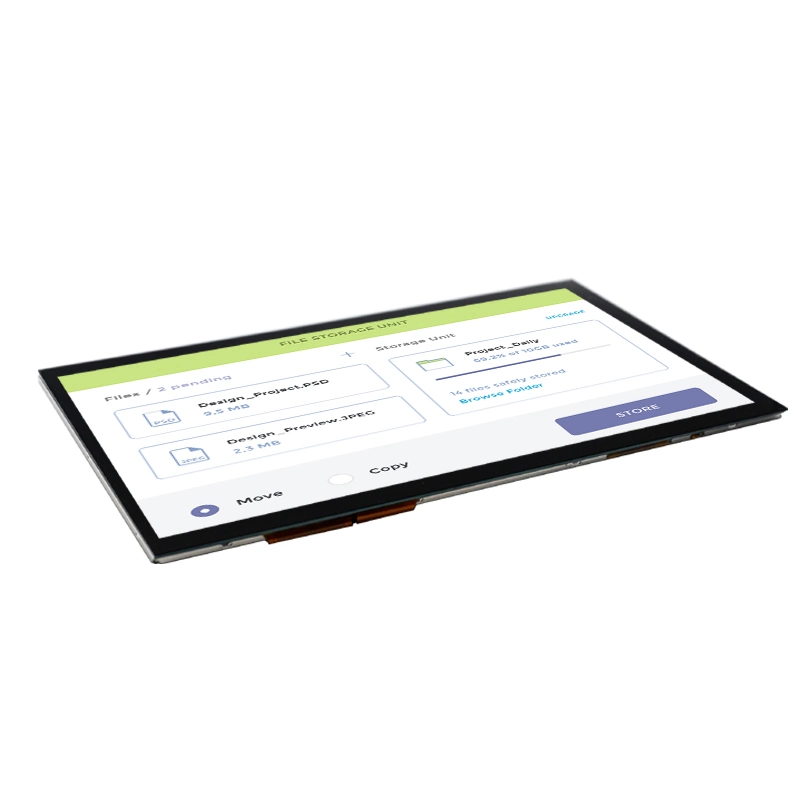

High Brightness 10.1 Inch 40 Pin TFT LCD Display Capacitive Touch Screen with Resolution 1280*800

High Brightness 10.1 Inch 40 Pin TFT LCD Display Capacitive Touch Screen with Resolution 1280*800

Get Latest Price

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Basic Info.

Model NO.

T101QIH-22CP

Resolution

1280X800

Luminance

800 CD/M2

Active Area

216.96X135.60mm

Outline Size

229.7X149.15X6.9 mm

Back Lights

9X4LED

Interface

Lvds

Connector

45pin

Operation Temperature

-20 ~60

Storage Temperature

-20~80

Contrast Ratio

900:1

Transport Package

Stardard

Specification

CE, RoHS, SGS

Trademark

Ronen

Origin

China

HS Code

9013803010

Production Capacity

100, 000/Month

Product Description

Feature		Specification	Unit
Display Spec	Brand	Disea	-
	Size	10.1	inch
	Resolution	1280*800	dots
	Pixel pitch	0.1695(H)*0.1695(V)	mm
	Display Mode	IPS/NB	-
	Viewing Direction	ALL	o'clock
	Gray Scale Inversion Direction	ALL	o'clock
	Luminance	280	cd/m2
Mechanical Characteristics	LCM (W * H * D)	229.60151.054.65	mm
	Active Area (W * H )	216.96*135.60	mm
	With /Without TP	With CTP	-
	LED Numbers	30-LED	pcs
	Operation temperature	-20~+70	ºC
	Storage temperature	-30~+80	6
Electrical Characteristics	Interface	8bit LVDS/40PIN	-
	LCM Power Supply	3.3	V
	LED Power Supply	9	V
	Color Depth	16.7M	-
	LCM Driver IC	-	-
	CTP Dricer IC	GT928	-

Mechanical Drawing:

High Brightness 10.1 Inch 40 Pin TFT LCD Display Capacitive Touch Screen with Resolution 1280*800

Product Application:

Education LeOur LCD module sizes are from 2.8 inch to 10.1 inch which are widely used in digital cameras, DV, security monitoring, camcorders, PMP, MID and arning Aid, POS machines, etc.

Product	Application
Small-size TFT LCD display (1.44inch~4.3inch)	mobile device, watch toy, medical equipment, Office electronic equipment, camera, air-conditioning display, etc.
Mid-size TFT LCD display (5.0inch~10.0inch)	mobile devices, medical equipment, car, automotive product, industrial control equipment, POS, PDA, Household Video doorbell, air-conditioning displays, etc.
Big-size TFT LCD display (10inch and above)	educational products, automotive products, video door phones, Audiovisual equipment, DVD player, media play, tablet PC, Security Products, etc.
TN/STN//FSTN/OLED	elevator controller, watch electronic product, air-conditioning display, all kinds of instruments, etc.
Plastic mold	industrial control equipment, electronic products, toys, Security Products, IT digital products, sports equipment, etc.
