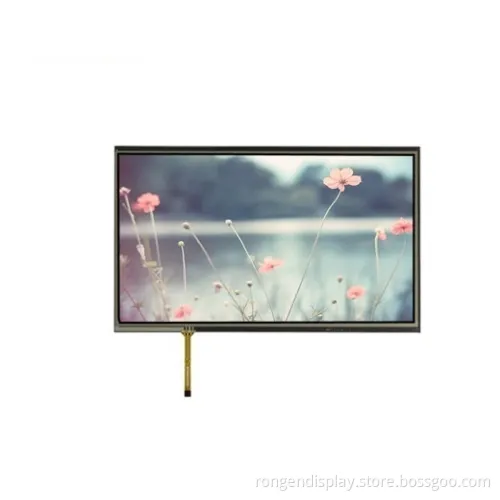

10.1 Inch 1280X800 TFT LCD Display 45pin Resistive Touch Screen

Get Latest Price

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Basic Info.

Model NO.

RG101KBT-09R

Resolution

1280X800

Luminance

200 CD/M2

Active Area

216.96X135.60 mm

Outline Size

229.7X149.15X4.8 mm

Back Lights

6X6LED

Interface

Lvds

Controller

Nt51007*4+ Nt39212*1

Connector

45pin

Operation Temperature

-20 ~60

Storage Temperature

-20~80

Transport Package

Stardard

Specification

CE, RoHS, SGS

Trademark

Ronen

Origin

China

HS Code

9013803010

Production Capacity

100, 000/Month

Product Description

General Specification

Item	Contents
LCD TYPE	TFT/TRANSMISSIVE
MODULE SIZE (WHT)	229.7X149.15X4.8 MM
ACTIVE SIZE (W*H)	216.96X135.60 MM
NUMBER OF DOTS	1280*800
DIVER IC	NT510074+ NT392121
INTERFACE TYPE	LVDS
Back lights	6X6LED
Connector	45pin

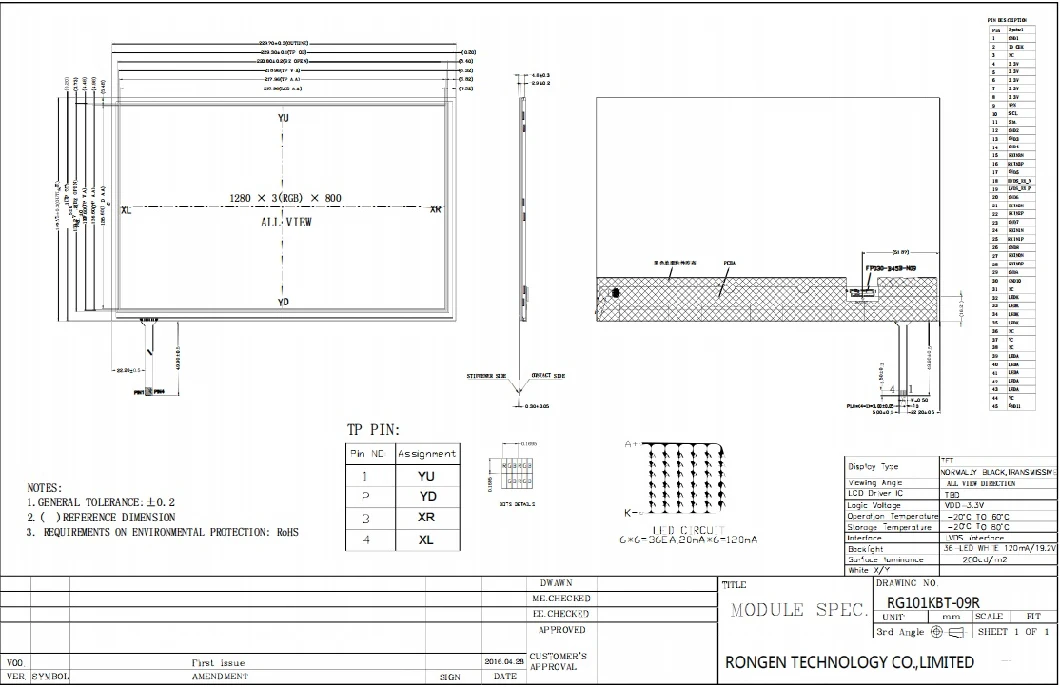

Mechanical Drawing:

Product Application:

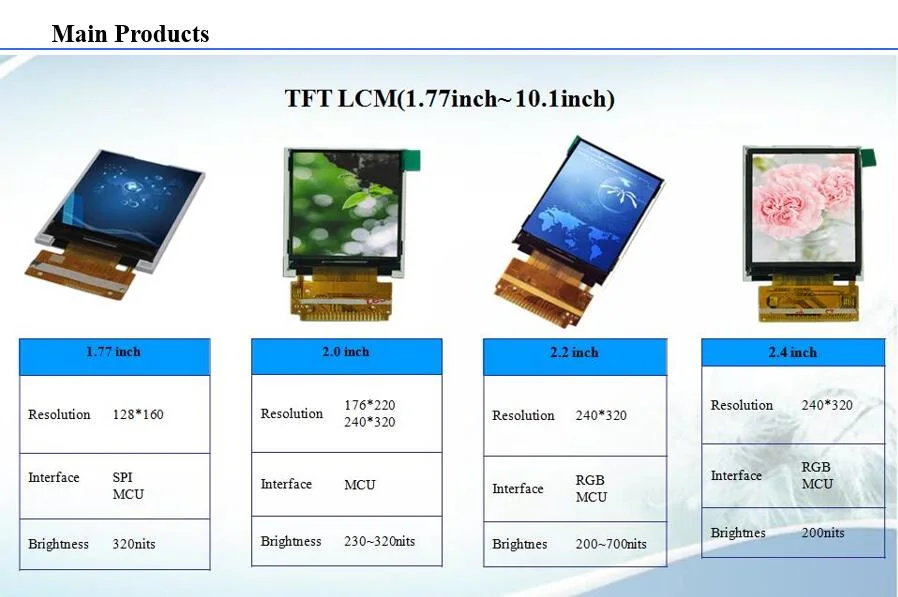

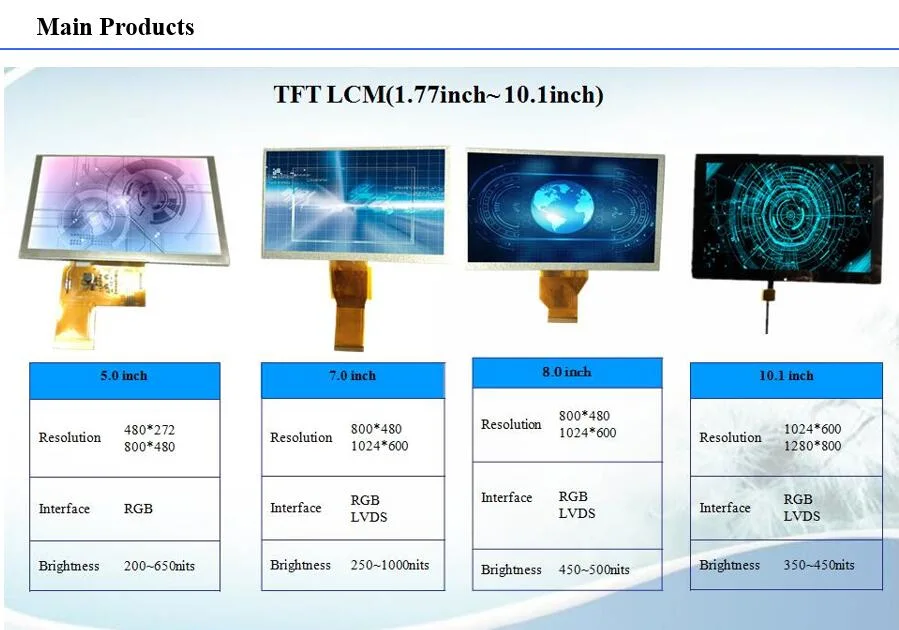

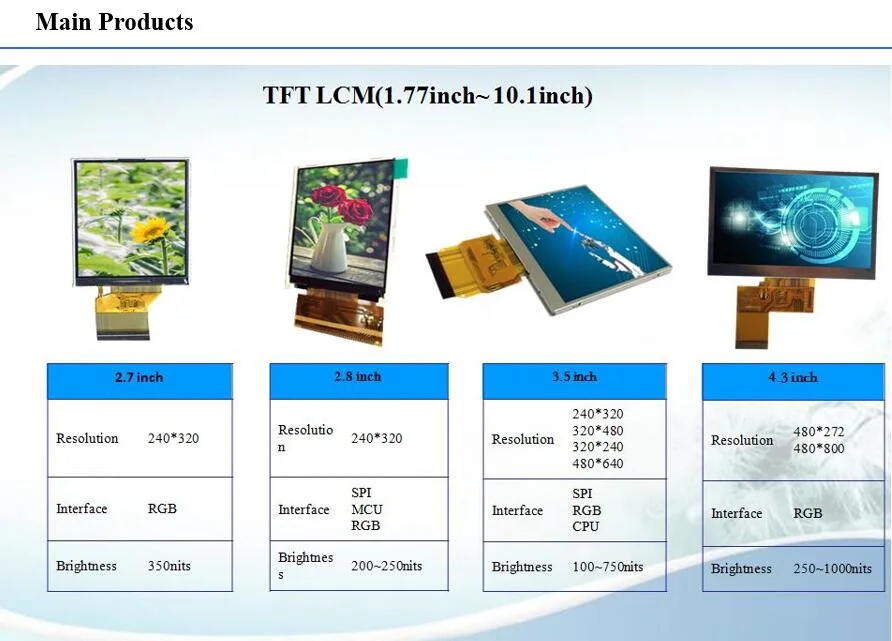

Education LeOur LCD module size are from 2.8 inch to 10.1 inch which are widely used in digital camera, DV, security monitoring, carcorder, PMP, MID and arning Aid, POS Machine etc.

Product	Application
Small-size TFT LCD display (1.44inch~4.3inch)	mobile device, watch, toy, medical equipment, Office electronic equipment, camera, air-condition display, etc.
Mid-size TFT LCD display (5.0inch~10.0inch)	mobile device, medical equipment, car, automotive product, industrial control equipment, POS, PDA, Household Video doorbell, air-condition display, etc.
Big-size TFT LCD display (10inch and above)	educational product, automotive product, video door phone, Audiovisual equipment, DVD player, media play, tablet PC, Security Products, etc.
TN/STN//FSTN/OLED	elevator controller, watch, electronic product, air-condition display, all kinds of instrument, etc.
Plastic mould	industrial control equipment, electronic product, toy, Security Product, IT digital product, sports equipment, etc.
