10.1 Inch 1280*800 TFT LCD Display Capacitive Touch Screen
  • 10.1 Inch 1280*800 TFT LCD Display Capacitive Touch Screen
  • 10.1 Inch 1280*800 TFT LCD Display Capacitive Touch Screen
  • 10.1 Inch 1280*800 TFT LCD Display Capacitive Touch Screen
  • 10.1 Inch 1280*800 TFT LCD Display Capacitive Touch Screen
  • 10.1 Inch 1280*800 TFT LCD Display Capacitive Touch Screen
  • 10.1 Inch 1280*800 TFT LCD Display Capacitive Touch Screen
10.1 Inch 1280*800 TFT LCD Display Capacitive Touch Screen
10.1 Inch 1280*800 TFT LCD Display Capacitive Touch Screen
10.1 Inch 1280*800 TFT LCD Display Capacitive Touch Screen
10.1 Inch 1280*800 TFT LCD Display Capacitive Touch Screen
10.1 Inch 1280*800 TFT LCD Display Capacitive Touch Screen
10.1 Inch 1280*800 TFT LCD Display Capacitive Touch Screen

10.1 Inch 1280*800 TFT LCD Display Capacitive Touch Screen

Get Latest Price
Min. Order:
1 Piece/Pieces
Min. Order:
1 Piece/Pieces
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Product Description
Product Description

Basic Info.

Model NO.
RG101KBT-01C
Widescreen
Widescreen
Response Time
25ms
3D
Not 3D
Interface Type
Lvds
Resolution
1280*800
Luminance
200 CD/M2
Contrast Ratio
900:1
Module Size
238.6*160.6*4.85 mm
Active Area
216.96*135.6 mm
Operation Temperature
-20~60
Storage Temperature
-20-80
Transport Package
Stardard
Specification
CE, RoHS, SGS
Trademark
Ronen
Origin
China
HS Code
9013803010
Production Capacity
10000/Month

Product Description

10.1 Inch 1280*800 TFT LCD Display Capacitive Touch Screen10.1 Inch 1280*800 TFT LCD Display Capacitive Touch Screen10.1 Inch 1280*800 TFT LCD Display Capacitive Touch Screen10.1 Inch 1280*800 TFT LCD Display Capacitive Touch Screen10.1 Inch 1280*800 TFT LCD Display Capacitive Touch Screen10.1 Inch 1280*800 TFT LCD Display Capacitive Touch Screen10.1 Inch 1280*800 TFT LCD Display Capacitive Touch Screen10.1 Inch 1280*800 TFT LCD Display Capacitive Touch Screen10.1 Inch 1280*800 TFT LCD Display Capacitive Touch Screen10.1 Inch 1280*800 TFT LCD Display Capacitive Touch Screen
General specifications
Item  Contents
LCD TYPE  TFT/TRANSMISSIVE
MODULE SIZE (W*H*T)  238.6*160.6*4.85 MM
ACTIVE SIZE (W*H)  216.96*135.6 MM
PIXEL PITCH (W*H)  0.1695*0.1695 MM
NUMBER OF DOTS  1280*800
LCM DRIVER IC  HX8245-E+HX8695-B
CTP DRIVER IC  FT 5426
INTERFACE TYPE  LVDS
TOP POLARIZER TYPE  ANTI-GLARE
RECOMMEND VIEWING DIRECTION  ALL  O'CLOCK
GRAY SCALE INVERSION DIRECTION  O'CLOCK
BACKLIGHT TYPE  36-CHIP WHITE LED
TOUCH PANEL TYPE  CAPACITIVE

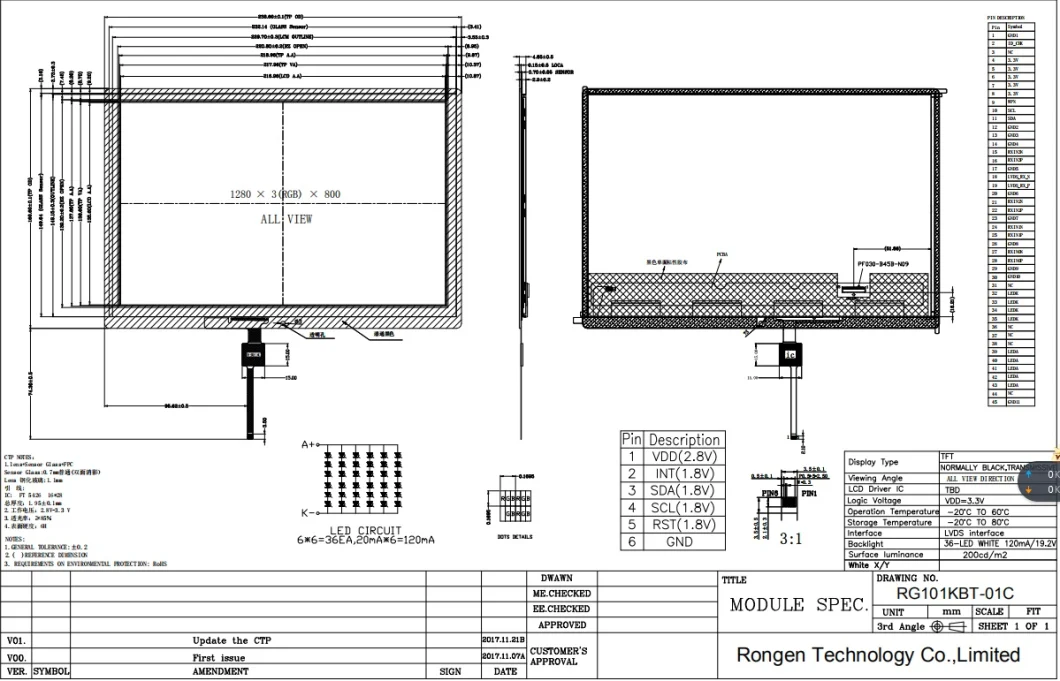

Mechanical Drawing:
10.1 Inch 1280*800 TFT LCD Display Capacitive Touch Screen



Product Application:

Education LeOur LCD module sizes are from 2.8 inch to 10.1 inch which are widely used in digital cameras, DV, security monitoring, camcorders, PMP, MID and arning Aid, POS machines, etc.

Product Application
Small-size TFT LCD display  (1.44inch~4.3inch) mobile device, watch, toy, medical equipment, Office electronic equipment, camera, air-condition display, etc.
Mid-size TFT LCD display  (5.0inch~10.0inch) mobile device, medical equipment, car, automotive product, industrial control equipment, POS, PDA, Household Video doorbell, air-condition display, etc.
Big-size TFT LCD display  (10inch and above) educational product, automotive product, video door phone, Audiovisual equipment, DVD player, media play, tablet PC, Security Products, etc.
TN/STN//FSTN/OLED  elevator controller, watch, electronic product, air-condition display, all kinds of instrument, etc.
Plastic mould industrial control equipment, electronic product, toy, Security Product, IT digital product, sports equipment, etc.
