10.2inch LCD Screen 1024*600 Display for LCD Screen

10.2inch LCD Screen 1024*600 Display for LCD Screen

Get Latest Price

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Basic Info.

Model NO.

RG102NA0DCW

Display Technology

TFT

DOT-Matrix Graphic LCD Module Type

Row/Column-Driven Control Type

LCD Drive Mode

Multiplex Drive LCD Module

Customized

Resolotion

1024X600

Luminance

400CD/M2

Contrast Ratio

400:1

Viewangle

70/70/60/60

30pin

Connector Type

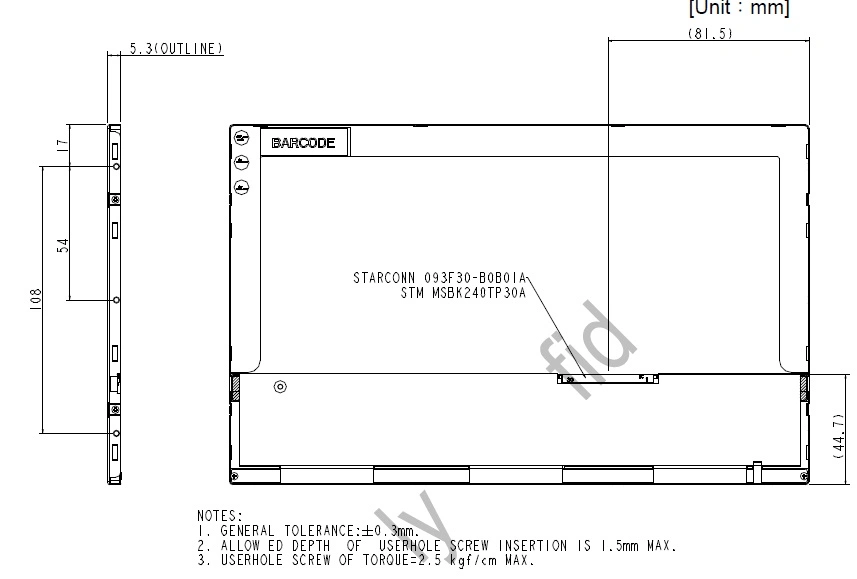

093f30-B0b01A

Operation Temperature

-20 ~ 70

Storage Temperature

-30 ~ 80

LED Lifetime

Min 20000 Hr

Interface

Lvds

Transport Package

Stardard

Specification

CE, RoHS, SGS

Trademark

Rongen

Origin

China

HS Code

9013803010

Production Capacity

100000PCS/Month

Product Description

Specification:

ITEM	SPECIFICATION
Panel Size	10.2 inch(panel diagonal)

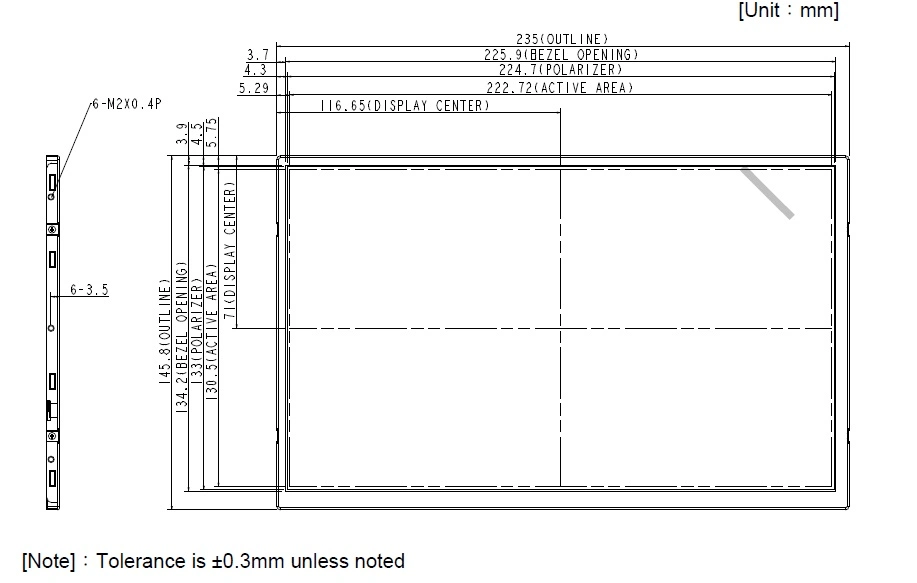

Display Area (mm)	222.72(H) x 130.5(V) (10.2-inch diagonal)
Number of Pixels	1024(H) × 3(RGB) × 600(V)
Pixel Pitch (mm)	0.2175 (H) × 0.2175 (V)
Color Pixel Arrangement	RGB vertical stripe
Display Mode	Normally white
Number of colors	262,144
Brightness(cd/m2)	400(typ.)
Response Time (Tr+Tf)	20 ms
Viewin Angle(BL on,CR>=10)	140 degree(H),120 degree(V)
Power consumption(W)	4.8
BL unit	LED
Electrical Interface(data)	LVDS
Viewing Direction	6 o′clock
Weight(g)	250
Surface Treament	Anti-Glare,Hardness:3H
