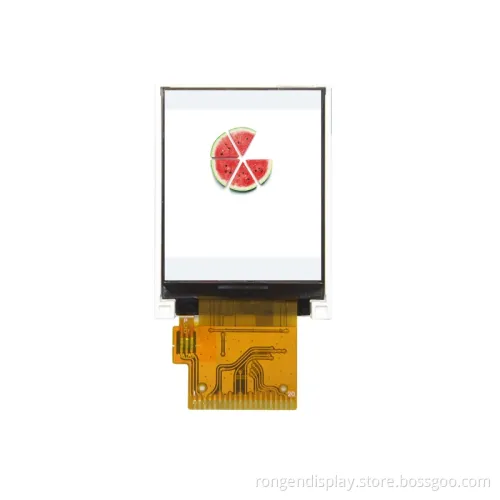

Ronen 1.7 Inch 128*160 Mini LCD Screen with Driver IC St7735s

Ronen 1.7 Inch 128*160 Mini LCD Screen with Driver IC St7735s

Get Latest Price

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Basic Info.

Model NO.

RG017LCT-02

Widescreen

Not Widescreen

Response Time

30ms

Not 3D

Interface Type

MCU

Size

1.77"

Resolution

128*160

Luminance

320 CD/M2

Contrast Ratio

500:1

Viewing Angle

45/45/35/15

Driver IC

St7735s

Active Area

28.03*35.04

System Interface

Spi

Module Size

34.7*46.7*2.5

Back Light

2 LEDs

Connector

12pin

Transport Package

Stardard

Specification

1.77 inch

Trademark

Rongen

Origin

China

HS Code

901380301

Production Capacity

15000/Month

Product Description

Specifications

ITEM	Standard value
LCD Type	TFT Transmissive
MODULE SIZE (WHT)	34.746.72.5
ACTIVE SIZE (W*H)	28.03*35.04
PIXEL PITCH (W*H)	0.219*0.219
NUMBER OF DOTS	128*160
Driver IC	ST7735S
INTERFACE TYPE	SPI
TOP POLARIZER TYPE	ANTI-GLARE
RECOMMEND VIEWING DIRECTION	5
GRAY SCALE INVERSION DIRECTION	12
TOUCH PANEL TYPE	WITHOUT

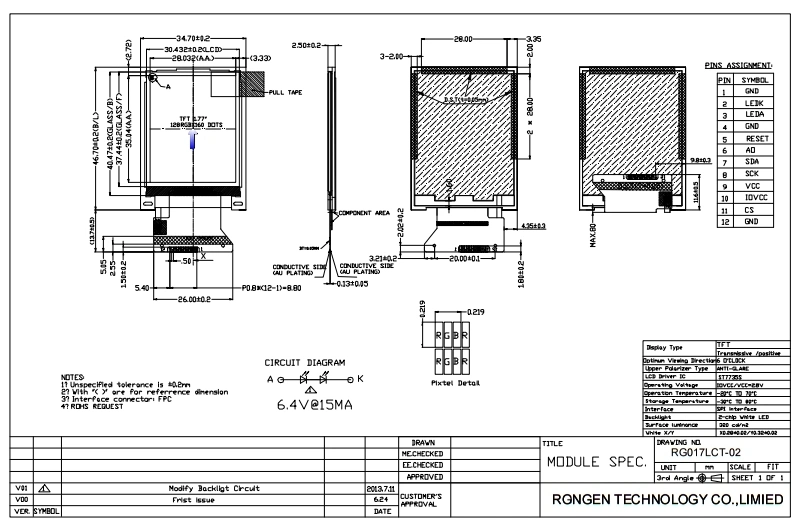

Merchanical Drawing
Ronen 1.7 Inch 128*160 Mini LCD Screen with Driver IC St7735s

Ronen have concentrate on designing and manufacturing display products for more than 12 years.We can offer monochrome tn/stn, cstn, tft and oled displays and other display components.Our transflective tft displays are not only viewing but support operating under direct sunlight, if you are looking for sunlight readable tft displays,our product is your best choice.And our ips and ltps panels are wide viewing angles, they are widely used in automotive electronics,
Further more, each unit bears sgs, tuv and rohs marks.The innovative flat panel display and products provided by our elite team can keep pace with such a fast-changing global marketplace.We can also meet your display specifications, and satisfy your individual request.The most competitive and satisfying products have won us high reputation.
Now ronen display co.Ltd is becoming a qualified supplier of many noted companies.Professional technical support and good service is our permanent commitment for you.

Products Application
Our LCD module size are from 2.8 inch to 10.1 inch which are widely used in digital camera, DV, security monitoring, carcorder, PMP, MID and Education Learning Aid, POS Machine etc.

Product	Application
Small-size TFT LCD display	mobile device,watch,toy,medical equipment, Office electronic equipment,camera, air-condition display, etc.
Mid-size TFT LCD display	mobile device,medical equipment,car, automotive product,industrial control equipment,POS,PDA, Household Video doorbell, air-condition display,etc.
Big-size TFT LCD display	educational product,automotive product,video door phone, Audiovisual equipment,DVD player,media play,tablet PC, Security Products,etc.
TN/STN//FSTN/OLED	elevator controller,watch,electronic product,air-condition display,all kinds of instrument,etc.
Plastic mould	industrial control equipment,electronic product,toy, Security Product,IT digital product, sports equipment,etc.
