Semi-Auto Access Control Swing Barrier Gate

Semi-Auto  Access Control Swing Barrier Gate

1. Top quality.Provide 2 year warranty
2. CE, ROHS, FCC certificate.
3. Automatic Swing Barrier Gate.
4.Swing Barrier Gate length can custom-made
5. RS485 Interface
6. All list price just for EXW, not including any shipping fee

Features:

1. Compact appearance,adapt to varied situation(no install place for card reader ), Reliable and durable, low noise and stable operation;

2. Standard electrical interface, various card reader acceptal to our swing barrier gate & can be controlled by computer, Single/Double Directional Optional which can be controlled by both ways or single way;

3. When power off, the swing barrier gate will be dropped down (optional set free passage when power off) to the request of fire protection, and automatically closes when power on;

4. Surface of mechanical electroplated with yellow dichromic acid, antirust and durable;

5. The swing gate installed Infrared sensor interfaces, could be expanded to Infrared testing function.

6. The horizontal bi-directional movement of the arm allows patrons to pass smoothly through the ADA swing gates, prevent pedestrians from being nipped and from being hurt;

7. Breakdown Self-checking and alarm indication, easy for maintenance and using;

8. The swing barrier gate motor will stop working in case of the swing encounter of obstruct;

9. The swing gate arm will lock in case of not receving the open signal;

10. Arms synchronization. (adjustable): Arms are automatically locked until opening signal is received;

11. Anti illegal entering alarm: Light and sound alarm is generated when the illegal invasion and the tail followed;

12. Automatically reset function: It will automatically lock if the pedestrian hasn't pass through the channel in the pre-set time after the opening. The passing time is adjustable.

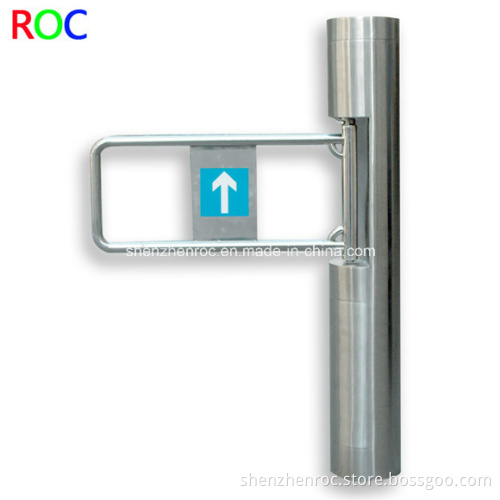

1. Cylinder Swing barrier Gate was specifically designed for persons with disabilities. It has an innovative design to enable quicker and easier passage and to fit into tight spaces. Its cabinet was designed to withstand the impact of wheel chairs and carts. It can be for one-way and two-way, pedestrian traffic control. Operation in either a 1 x 90° or 2 x 90° bi-directional mode. These gates are also used to complement our turnstile and optical turnstiles especially where passage of larger items is required.With an opening of up to 900mm, items such as wheelchairs, trolleys and oversized packages are easily accommodated.

2. Cylinder Swing barrier Gate is suitable for both indoor and outdoor(tent). It could be wildly used in the place where intelligentized management is needed such as station, port, subway, factory, mansion, intelligent community, hotel, club, marketplace, enterprise and institution etc.
