7 Inch Air-Condition Touch Panel

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Guangdong, Shenzhen
Payment Type:	T/T

Product Description

Product Discription:

1. 7.0 inch capacitive touch screen+TFT
2. High brightness

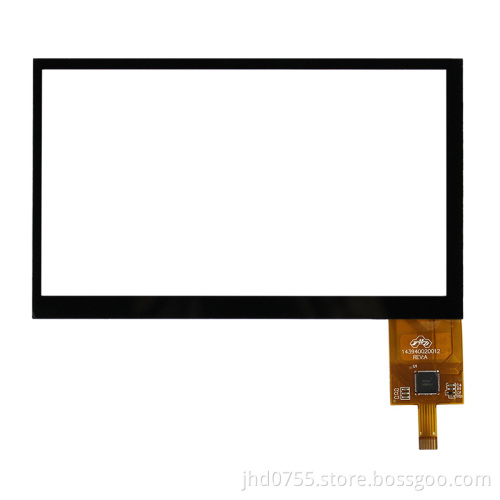

Product Drawing:

7 Inch Air-Condition Touch Panel

Product Parameter:

Size: 7.0"

Part number: 8940020012

Lens size(mm): 164.9*100*0.7

Sensor size(mm): 160.37*91.82*0.7

Total thickness,without foam(mm): 1.6

Active area(mm): 156.08*87.92

Independent key: None

View area(mm): 155.08*86.92

Surface hardness(mm): ≥7H

Resolution ratio: 800*480

Linearity(mm): ±1.0(±1.5)

Touch point: 5

Working voltage: 2.8-3.6V

Interface I2C : 1.WAKE 2.VCC 3.GND 4.INT 5.SDA 6.SCL

Power (VDD=2.8V): Normal operation :6mA Monitor mode:4mA Sleep mode:0.03mA

Transmittance(%): ≥90

Haze value(%): <0.1

Operation temperature: -20°~75°

Storage temperature: -30°~85°

Product Advantages:

1. The type of touch panel can be customize. Capative and resistive screen are both available.

2. 4.3'' and 7'' TFT can be customize for high brightness back light. Visiable under the sun light.

3. Provide the CTP TOTAL SOLUTION, reduce the R&D time for customers.

Size:	7.0"
Part number:	8940020012
Lens size(mm):	164.91000.7
Sensor size(mm):	160.3791.820.7
Total thickness,without foam(mm):	1.6
Active area(mm):	156.08*87.92
Independent key:	None
View area(mm):	155.08*86.92
Surface hardness(mm):	≥7H
Resolution ratio:	800*480
Linearity(mm):	±1.0(±1.5)
Touch point:	5
Working voltage:	2.8-3.6V
Interface I2C :	1.WAKE 2.VCC 3.GND 4.INT 5.SDA 6.SCL
Power (VDD=2.8V):	Normal operation :6mA Monitor mode:4mA Sleep mode:0.03mA
Transmittance(%):	≥90
Haze value(%):	0.1
Operation temperature:	-20°~75°
Storage temperature:	-30°~85°
