Product Description

Product Name

7 inch TFT LCD display for industrial instruments

Product discription

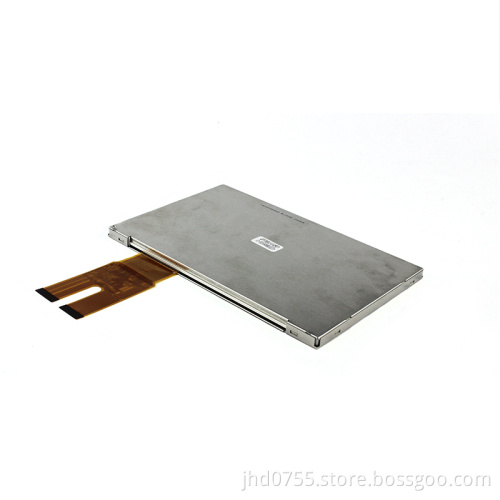

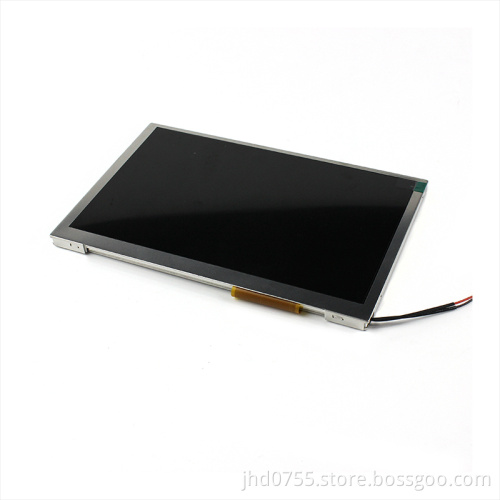

7'' TFT LCD Display for Industrial Instruments

Product Advantages

1. Use 5.7'' TFT standar interface, can take place other 5.7'' TFT compatibly.

2. Provide colorful display solution for industrial instruments.

Product Packing

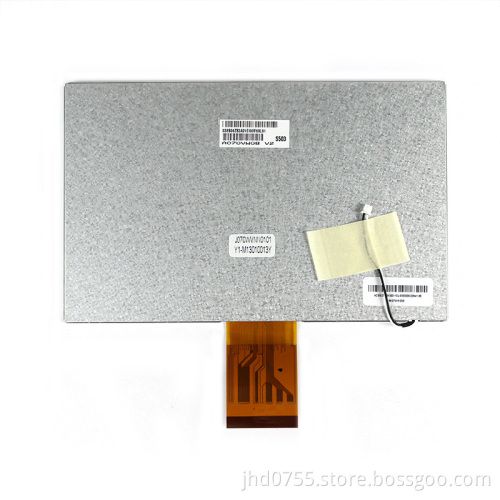

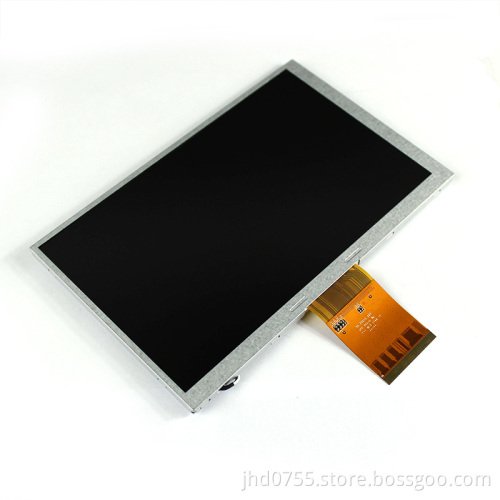

7'' TFT LCD Display for Industrial Instruments

Product Parameter

ItemSpecification

Screen Size7''

Resolution800x480

Luminance(cd/m)500

Contrast Ratio500:01:00

Viewing Angle (Tpy.) θT/θB/θL/θR50/70/70/70 deg

Response Time35ms

Module Size(mm)165.0x104.0x5.5

Active area(mm)152.4x91.44

Dot Pitch(mm)0.1905(W) x0.1905(H)

InterfaceDigital(RGB 24bits)

Power Consumption0.278W

Operation Temperature -20~70 °C

Storage Temperature -30~80 °C

Item	Specification
Screen Size	7''
Resolution	800x480
Luminance(cd/m)	500
Contrast Ratio	500:01:00
Viewing Angle (Tpy.) θT/θB/θL/θR	50/70/70/70 deg
Response Time	35ms
Module Size(mm)	165.0x104.0x5.5
Active area(mm)	152.4x91.44
Dot Pitch(mm)	0.1905(W) x0.1905(H)
Interface	Digital(RGB 24bits)
Power Consumption	0.278W
Operation Temperature	-20~70 °C
Storage Temperature	-30~80 °C

Voltage and current

Item	Conditions	Min	Typ	Max	Unit
Power Voltage	TFT panel	3	3.3	3.6
Power Voltage	Backligt	8.85	9.75	10.35	V
Operation Current	TFT panel		TBD		mA
Operation Current	Backligt	170	180	220	mA

lid

Reliablitity test

Item	Conditions	Min	Typ	Max	Unit
Working Temperature		-30	25	85	°C
Storage Temperature		-30	25	85	°C
Working Humidity		5%	-	95%	%
