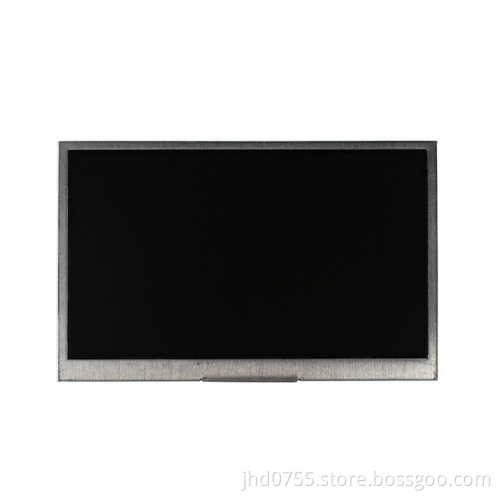

5'' TFT LCD Display Use for Industrial Instruments

Get Latest Price

Payment Type:: T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Shenzhen
Payment Type:	T/T

Product Description

Product Name

5 inch TFT LCD display for industrial instruments

Product discription

5'' TFT LCD Display Use for Industrial Instruments

Product Advantages

1. Use 5'' TFT standar interface, can take place other 5'' TFT(800*480) compatibly.

2. Provide colorful display solution for industrial instruments.

Product Parameter

ItemSpecification

Screen Size5.0"

Resolution800 x 480

Luminance(cd/m)350

Contrast Ratio500:01:00

Viewing Angle (Tpy.) θT/θB/θL/θR50/70/70/70 deg

Response Time10ms

Module Size(mm)120.7 x76.3 x 3.1

Active area(mm)108 x 64.8

Dot Pitch(mm)0.045(W)X0.135(H)

InterfaceDigital (RGB 24bits)

Power Consumption0.223W

Operation Temperature -20~70°C

Storage Temperature -30~80°C

Item	Specification
Screen Size	5.0"
Resolution	800 x 480
Luminance(cd/m)	350
Contrast Ratio	500:01:00
Viewing Angle (Tpy.) θT/θB/θL/θR	50/70/70/70 deg
Response Time	10ms
Module Size(mm)	120.7 x76.3 x 3.1
Active area(mm)	108 x 64.8
Dot Pitch(mm)	0.045(W)X0.135(H)
Interface	Digital (RGB 24bits)
Power Consumption	0.223W
Operation Temperature	-20~70°C
Storage Temperature	-30~80°C

Volatage and current

Item	Conditions	Min	Typ	Max	Unit
Power Voltage	TFT panel	3	3.3	3.6	V
Power Voltage	Backligt	19.6	21.7	23.8	V
Operation Current	TFT panel	/	/	/	mA
Operation Current	Backligt	36	40	44	mA

Reliability test

Item	Conditions	Min	Typ	Max	Unit
Working Temperature		-20		70	°C
Storage Temperature		-30		80	°C
Working Humidity		/		90%RH	%RH
