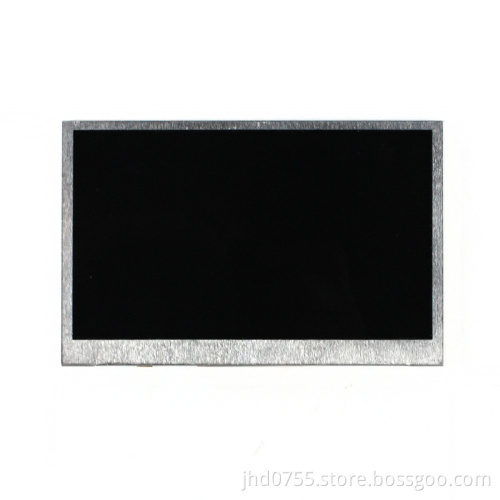

4.3'' TFT LCD Display for Industial Instrument

Get Latest Price

Payment Type:: T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Shenzhen
Payment Type:	T/T

Product Description

Product Name

4.3 inch TFT LCD display for industrial instruments

Product discription

4.3'' TFT LCD Display for Industial Instrument

Product Advantages

1. Use 3.5'' TFT standar interface, can take place other 3.5'' TFT compatibly.

2. Provide colorful display solution for industrial instruments.

Product Packing

4.3'' TFT LCD Display for Industial Instrument

Product Parameter

Item Specification

Screen Size 4.3''

Resolution 480 X272

Luminance(cd/) 250

Contrast Ratio 350:1

Viewing Angle (Tpy.) θT/θB/θL/θR 55/55/65/65 deg

Response Time 30ms

Module Size(mm) 105.5x67.1x2.9

Active area(mm) 95.04x53.856

Dot Pitch(mm) 0.198(W)X0.198(H)

Interface Digital(RGB 24bits)

Power Consumption 0.33W

Operation Temperature -30~80º C

Storage Temperature -30~85º C

Item	Specification
Screen Size	4.3''
Resolution	480 X272
Luminance(cd/m)	250
Contrast Ratio	350:01:00
Viewing Angle (Tpy.) θT/θB/θL/θR	55/55/65/65 deg
Response Time	30ms
Module Size(mm)	105.5x67.1x2.9
Active area(mm)	95.04x53.856
Dot Pitch(mm)	0.198(W)X0.198(H)
Interface	Digital(RGB 24bits)
Power Consumption	0.33W
Operation Temperature	-30~80°C
Storage Temperature	-30~85°C

Volatage and current

Item	Conditions	Min	Typ	Max	Unit
Power Voltage	TFT panel	3	3.3	3.6	V
Power Voltage	Backligt	17.4	19.2	21.6	V
Operation Current	TFT panel	0	1.5	-	mA
Operation Current	Backligt	-	120	-	mA

Reliability test

Item	Conditions	Min	Typ	Max	Unit
Working Temperature		-20	25	70	°C
Storage Temperature		-30	25	80	°C
Working Humidity		5%	-	95%	%
Protective Paint
