8 Inch EPD E-Paper Display for E-book
- Payment Type:
- T/T
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Shenzhen |
|---|---|
| Payment Type: | T/T |

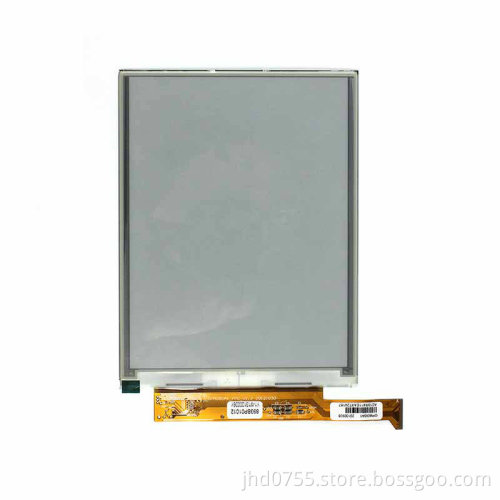

8 inch EPD e-paper display for e-book
Product No. :
8938W04012
Definition of EPD:
EPaper Displays,shorted as EPD. It is a kind of display with paper appearance. It
can achieve display continuly when it is power on. It can also achieve bi-stable
display and could keep display content when power off.
Product Discription:
Product Advantages:
1. EPD has good viewing experience as paper, no twinkle, no need backlight, high definition, to protect eyesight, with high contrast under natural light or room light, full viewing angle.
2. Save consumption, could keep display content when power off,it needs tiny power consumption at standby status, need higher power consumption at update status.
3. stable display, display color is black/white, white/black, the contrast could be kept for long time.
4. EPD of FPC solution is flexible, supper thin, supper light, mini module thickness could be 0.5mm.
5. For segment type, the base board is PCB or FPC, which is not fragile, not easy to break.
Product Delivery:
Delivery Details: 1 to 30 days. The delivery fee is up to the weight and volume of the products.
Product Parameter:
Packaging & Shipping:
Packaging: In general, foam or anti-static tray inside, carton outside
Delivery: For mass production, the delivery time is around 4-6 weeks.
Competitive advantages:
1)Over 27 years of production experience
2)Top quality with RoHS, REACH, Lead Free
3)ISO9001 certificated Factory supplied
4)Competitive price and Short lead-time
5)In stock, samples lead-time: 3~7 days.
Specifically, the main products include:
1) TN/STN/FSTN/ASTN LCD panels
2) Segment LCD modules
3) Character and graphic LCD modules
4) 2.5~7.0 inches color TFT-LCM
Presently, we are looking forward to even greater cooperation with overseas customers based on mutual benefits. Please feel free to contact us for more details.
| Size: | 8" |
| part number: | 8938W04012 |
| Outline(mm): | 175.642(W)*138.344(H)*1.18(D) |
| VA(mm): | 161.792*121.3344 |
| Base: | TFT glass |
| Resolution : | 768*1024 |
| Dot size: | 0.158(H)*0.158(V) |
| Color: | Black, white, gray-scale |
| Gray-scale : | 16 |
| Contrast : | 10: 1 |
| Reflective Ratio: | 35% |
| Operating Temp: | 0_50° C |
| Operating Temp: | -25 _70° C |
| Logic Voltage: | 3.3V |
| IC solution: | Driver |
| interface Communication: | Gate & Source driver |
| Interface pin qty: | 40 |
| Power consumption: | EPD:206mW, LED:330mW |
| High temp.&humidity Storage: | 60°C, 80%RH, 240 hrs |
| Update lifetime | 10,000,000 times |
