EPD LCD Custom Design

Product Name:

EPD LCD Custom Design

Product No.:

8935E02012

Definition of EPD:

EPaper Displays, shorted as EPD. It is a kind of display with paper appearance. It

Can achieve display continuly when it is power on. It can also achieve bi-stable

Display and could keep display content when power off.

Product Discription:


Product Advantages:

1. EPD has good viewing experience as paper, no twinkle, no need backlight, high definition, to protect eyesight, with high contrast under natural light or room light, full viewing angle.

2. Save consumption, could keep display content when power off, it needs tiny power consumption at standby status, need higher power consumption at update status.

3. Stable display, display color is black/white, white/black, the contrast could be kept for long time.

4. EPD of FPC solution is flexible, supper thin, supper light, mini module thickness could be 0.5mm.


5. For segment type, the base board is PCB or FPC, which is not fragile, not easy to break.




Product Delivery:

Delivery Details: 1 to 30 days. The delivery fee is up to the weight and volume of the products.

Product Parameter:

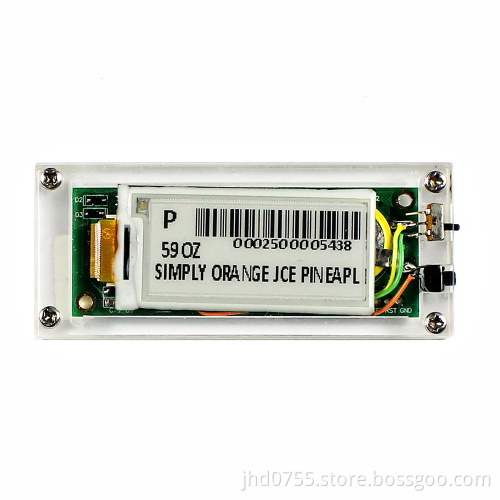

Size: 2.04"

Part number: 8935E02012

Outline(mm): 59.2(L)*29.2(W)*1.18(T)

VA(mm): 48.16*20.16

Base: TFT glass

Resolution: 172*72

Dot size: 0.28(H)*0.28(V)

Color: Black, white, gray-scale

Gray-scale: 4

Contrast: 10: 1

Reflective Ratio: 35%

Operating Temp: 0— 50° C

Operating Temp: -25 — 70° C

Logic Voltage: 2.4-3.3V

IC solution: Controler+Driver

Interface Communication: 4 wires, SPI

Interface pin qty: 24

Power consumption: 30mW

High temp. &humidity Storage: 60° C, 80%RH, 240 hrs

Update lifetime4, 000, 000 times


Packaging & Shipping:

Packaging: In general, foam or anti-static tray inside, carton outside

Delivery: For mass production, the delivery time is around 4-6 weeks.

Competitive advantages:

1)Over 27 years of production experience

2)Top quality with RoHS, REACH, Lead Free

3)ISO9001 certificated Factory supplied

4)Competitive price and Short lead-time

5)In stock, samples lead-time: 3~7 days.
