South S82t Rtk

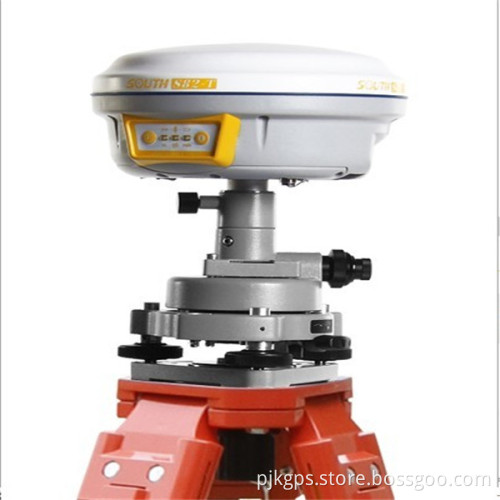

SOUTH S82T rtk


Product Introduction:
？Field Genius
？RTK Survey
？Static Survey
？Access to CORS
？CE & FCC certificate
？Antenna certificated by NGS


Key Features:
BD970 motherboard equipped Proven pacific Crest Maxwell6 technology. Demonstrated performance, outstanding efficiency;
Dual-Frequency Antenna Inhibits multi-path effect and enhances satellites searching quality;
Compact Housing Solid, yet handy housing with ABS+PC material at industrial level, nice-looking and long lasting;
Control Panel Imported PLC control circuit with 2 buttons & 6 indicating lights to view status and model, easy to use;
Screw Socket Imperial Screw-in port, high compatible;
SIM Card Slot To insert SIM card to enter VRS model for network;
5-pin Communication Port Standard LEMO interface to link receiver and external radio transmitter plus external power supply via multi-purpose communication cable (LE52X)
UHF receiving Antenna Socket Smart design for both reliable antenna connection and perfect cover (while not connected);
Rubber Ring Stated Well protects the receiver for steady waterproof, dustproof and quakeproof;
Battery& Compartment BT-L72SA 2500mAh lithium battery runs 6-8 hours for operations;
RS-232 Series Port Interface via multi-purpose communication cable (L997Y) with computer (for static ata transfer) or controller;
Dual Bluetooth Integrated Helps the receiver to communicate with controller and mobile device for real-time data transfer
Integrated Module Pack Advanced Data link, with both UHF receiving Radio and GPRS/GSM MODULE Built in, Switch able for radio/network RTK models.
General Info:

220 channels, by advanced Pacific Crest Maxwell6 custom survey gnss technology;
High precision multiple correlate for GNSS pseudo range measurements;
Unfiltered, unsmoothed pseudo range measurements data for low noise, low multipath error, low time domain correlation and high dynamic response;
Very low noises GNSS carrier phase measurements with 1mm precision in a 1Hz bandwidth;
Signal-to-noise ratios reported in dB-Hz; 6. Proven Pacific Crest low elevation tracking technology;

Satellite signals tracked simultaneously;
GPS: SIMULTANESOUS L1 C/A, L2E, L2C, L5;
GLONASS: Simultaneous L1 C/A, L1 P, L2 C/A (GLONASS M ONLY), L2 P;
SBAS: Simultaneous L1 C/A, L5;
Galileo: Simultaneous L1 BOC, E5A, E5B, E5AltBOC;
COMPASS: B1 B2
QZSS: L1 C/A, L1 SAIF, L2C, L5;

Code differential GNSS positioning;
Horizontal: 25cm +1 ppm RMS;
Vertical: 50cm+ 1 ppm RMS;
SBAS differential positioning accuracy: Typically <5 m 3DRMS;
Static and FastStatic GNSS surveying;
Horizontal: 8MM +1 ppm RMS;
Vertical: 15cm+ 1 ppm RMS;
Initialization time: Typically < 8s;
Initialization reliability: Typically > 99.9%;
