pH4.81 Outdoor HD Rental LED Screen
- Payment Type:
- L/C, T/T, Western Union
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | Shenzhen, China |
|---|---|
| Payment Type: | L/C, T/T, Western Union |
Product Description
Product Description
HTS SMD LED DISPLAY FOR AV RENTAL USE
4.81mm pixel pitch, Outdoor die-casting aluminum slim led displays
The premium 4.81mm die-casting LED display system for indoor use.
Fast & seamless assembly, superb image quality, wide viewing angles and unrivalled reliability.
Features:
1. Die-casting aluminum housing, rugged, good-looking. To ensure that the display of the seamless .
2. Super lightweight and thin, light-weight at 8.6kg/tile. Ultra-slim at 77mm depth.
3. Using E-energy universal voltage power supply, stable performance
4. Receiving card+HUB no flat cable. Stable performance, more reliable connections .;
5. No tools to assemble and dismantle, less worker and saves the cost
6. It suit for hanging-up, each hanging beam can bearing 10-15 pcs cabinets.
Application:
TV Show Ceremonies Shopping Mall

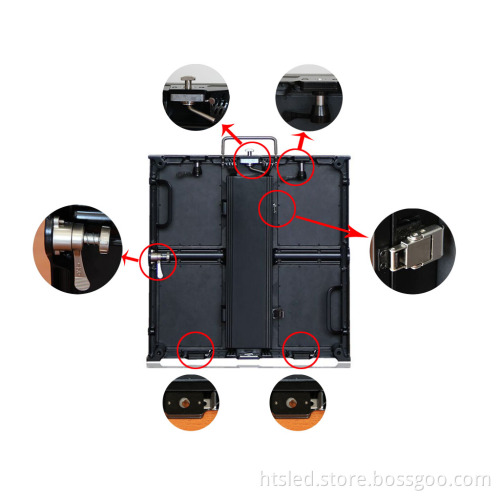

Installation Diagram
4.81mm pixel pitch, Outdoor die-casting aluminum slim led displays
The premium 4.81mm die-casting LED display system for indoor use.
Fast & seamless assembly, superb image quality, wide viewing angles and unrivalled reliability.
Features:
1. Die-casting aluminum housing, rugged, good-looking. To ensure that the display of the seamless .
2. Super lightweight and thin, light-weight at 8.6kg/tile. Ultra-slim at 77mm depth.
3. Using E-energy universal voltage power supply, stable performance
4. Receiving card+HUB no flat cable. Stable performance, more reliable connections .;
5. No tools to assemble and dismantle, less worker and saves the cost
6. It suit for hanging-up, each hanging beam can bearing 10-15 pcs cabinets.
Application:
TV Show Ceremonies Shopping Mall
Installation Diagram
|
Specification | |||||
| LED | |||||
| Color | Package | Chip Brand | View Angle | Wavelength | Test Cond. |
| Red | SMD2828 Black-face | Epistar | 120°/120° | 625nm | 25 degree,20mA |
| Green | Silan | 120°/120° | 520nm | 25 degree,20mA | |
| Blue | Silan | 120°/120° | 467nm | 25 degree,20mA | |
| Module | |||||
| Model No. | HTS-P4.81 | ||||
| Pitch | 4.81mm | ||||
| Screen mode | Real Pixel | ||||
| Physical density | 43264 Pixels per square meter | ||||
| LED type | 3-in-1 SMD2828 black-face | ||||
| Drive mode | constant current | ||||
| Cabinet | |||||
| Resolution | 104x104pixels | ||||
| Width | 500mm | ||||
| Height | 500mm | ||||
| Depth | 60mm | ||||
| Weight | 8.6KG/cabinet | ||||
| Cabinet color | Black | ||||
| Material | Die-casting aluminum | ||||
| LED panel | |||||
| Brightness | ≥5000cd per square meter | ||||
| Flatness | Gap≤0.5mm | ||||
| Gary scale | 65536 BIT | ||||
| Screen color | 281 trillion | ||||
| Scan method | 1/16 | ||||
| Operation power | AC110V/220V, 50-60Hz | ||||
| Max power consumption | 250W/cabinet | ||||
| Ave power consumption | 120W/cabinet | ||||
| Control Mode | Synchronous display with control PC by DVI | ||||
| Screen Refresh Frequency | ≥960Hz | ||||
| View angle | Vertical: 120°, Horizontal: 120° | ||||
| Support Input | composite, S-video, DVI,HDMI, SDI,HD-SDI,VGA | ||||
| Control Distance | Ethernet cable≤120m or Fiber Optic>120m | ||||
| Brightness Correction | pixel, module, cabinet | ||||
| Operating humidity | 10% - 80% RH | ||||
| Operating life | 100,000 hours | ||||
| MTBF | 5000 Hours | ||||
| Protection level | IP65 front, IP65 rear | ||||
| Out of control rate | 0.02% | ||||
