Quick Quality Multilayer Printed Circuit Board PCB (PCB8888)
- Payment Type:
- T/T, Western Union, Paypal
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | Shenzhen Guangdong |
|---|---|
| Payment Type: | T/T, Western Union, Paypal |
Product Description
Product Description

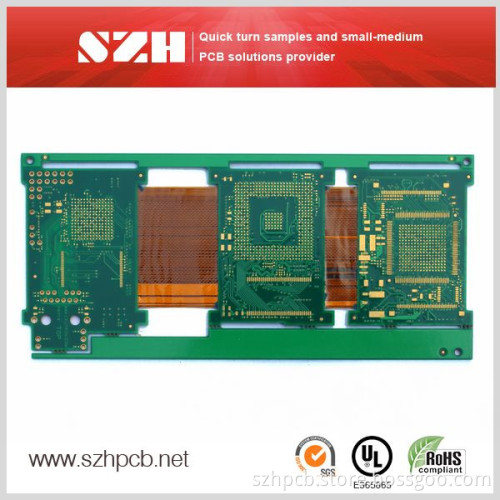

Quick quality multilayer printed circuit board PCB
1, RoHS & Lead Free
2, UL & ISO certified
3, Quality & service
4, Quick turn
5, Surface finish: Immersion Gold/HALS/OSP/Gold finger/Carbon print/Peelable mask/Plating gold

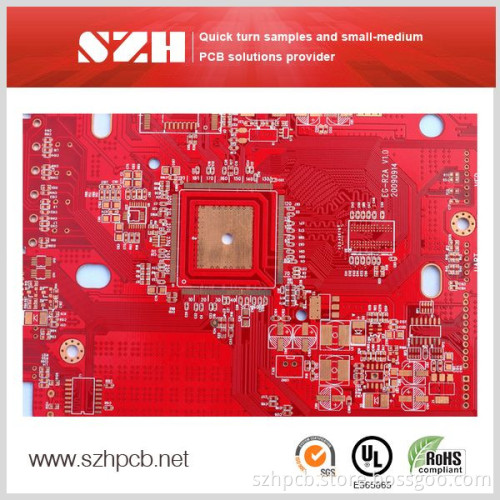

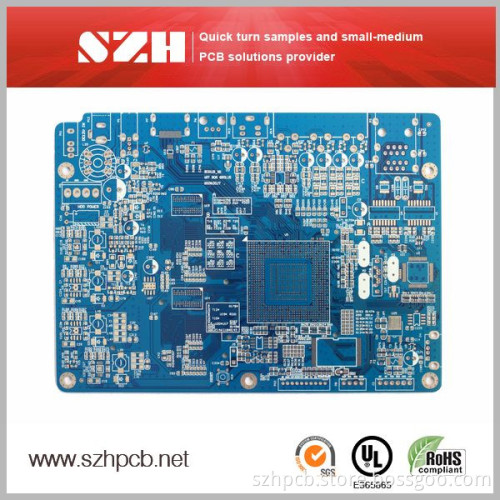

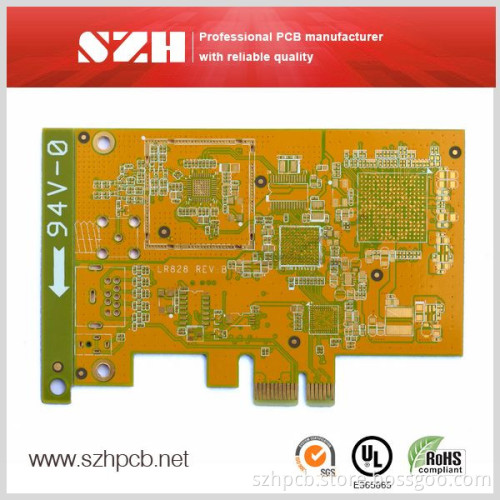

6, Solder mask colour: green/white/yellow/blue/red/black
7, Silk screen: white/black/yellow/red/blue/green
8, Applied in industrial facilities/medical facilities/consumer electronics/telecommunications/power supply
We deliver services, not only products.
We offer solutions, not only goods.
1, RoHS & Lead Free
2, UL & ISO certified
3, Quality & service
4, Quick turn
5, Surface finish: Immersion Gold/HALS/OSP/Gold finger/Carbon print/Peelable mask/Plating gold
6, Solder mask colour: green/white/yellow/blue/red/black
7, Silk screen: white/black/yellow/red/blue/green
8, Applied in industrial facilities/medical facilities/consumer electronics/telecommunications/power supply
We deliver services, not only products.
We offer solutions, not only goods.
Sunthone is a professional PCB supplier, manufacture quick turn PCB prototypes, samples, and low volume orders with short lead time and high quality.
Sunthone populates and produces one panel with many different PCB orders-so that the tooling costs of this panel can be shared between the various PCB customers. In this way, Sunthone gives rise to a huge reduction in the costs normally associated with prototype and sample manufacturing.
With excellent performance on quality and lead time, Sunthone can be your best partner, either you are a factory or trader from east or west.
Established in 2006, Sunthone expands the plant area to 6,000 and facility capacity to 15,000 PCB boards per month.
The company products are widely applied in many areas, such as Industrial Control, Security System, Medical Facilities, Military Products, Power Supply, Computers and Communications. The company focuses on major markets including Domestic Market, America, Europe, Oceania, and Southeast Asia.
The company's innovative management system, advanced facilities and top grade raw materials lead to the high-quality PCB boards.
Sunthone aims to be the leading PCB manufacturer, and provide quality PCB products for electronic industry.
| Technical Capacity |
| Layers | 1-16 layers | Min Board Thickness(2-layer) | 0.2mm |
| Max Board Size | 635 × 1100mm | Min Board Thickness(4-layer) | 0.6mm |
| Min Board Size | 20 × 30mm | Min Inner-layer Thickness | 0.1mm |
| Min Trace | 0.075mm | Min Annular Ring | 0.1mm |
| Min Space | 0.075mm | Min Hole Location Tolerance | ±0.075mm |
| Min Hole Size | 0.15mm | Min Hole Size Tolerance | ±0.05mm |
| Board Warp | ≤ 1° | Min Outer Dimension Tolerance | ±0.1mm |
| Solder Mask | Green, Yellow, Red, Black, Blue, White | ||
| Surface Finish | HAL, HASL, Immersion Gold, Immersion Silver, Plating Gold, Plating Nickel, Plating Silver, Gold Finger, OSP | ||
| Board Material | FR-4, High Tg FR-4, Halogen Free FR-4, Thick Copper FR-4, Aluminium Based, Rogers, Taconic | ||
| Acceptable file | Gerber file(RS-274-X or RS-274-D with aperture list and drill files),Protel,PADS,POWERPCB,AutoCAD,ORCAD | ||
| CAM software | Genesis, CAM350 | ||
