Single Channel ECG

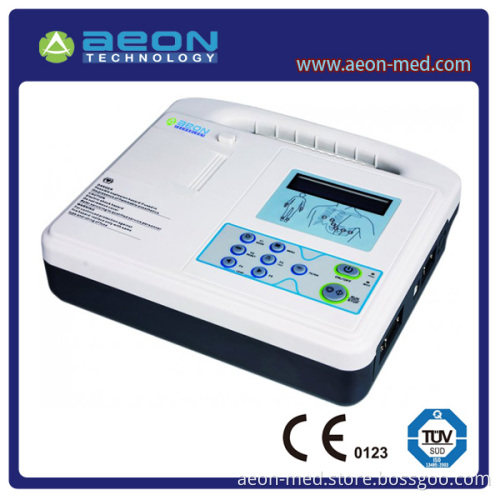

A601 is a single channel ECG machine, which is designed with portable and easy to use. It is remarkably transportable and bring with them high efficiencies in both regular tests and emergencies
Features
Single channel ECG machine with measurement
Work modes: Manual/Auto/Arrhythmia analysis modes
Built in rechargeable Ni-MH battery
Adapter 110-230V, 50/60Hz AC power supply
Built in USB/RS232 interface (ECGNET software optional)
Lead-off indictor

Technical Specification
Leads: Standard 12 leads
Lead acquisition: 12bit/1000Hz(synchronously 12 leads )
Work mode: MAN\AUTO\ANALYSIS modes
Filter
AC filter: 50Hz / 60Hz
EMG Filter: 25Hz / 45Hz
Anti-Drift Filter: 0.15Hz (Adaptive)
CMMR: ≥ 120dB (with AC filter)
Input circuit: Floating; Protection circuit against defibrillator effect
Input Impedance: ≥ 50MΩ
Input circuit current: ≤ 0.05μ A
Input dynamic range: ± 10Vpp
Patient current leakage: <10μ A
Calibrating voltage: 1mV± 2%
Voltage tolerance: ≥ ± 500mV
Time constant: ≥ 3.2s
Frequency response: 0.05~160Hz(-3dB)
Noise level: <15μ Vp-p
Sensitivity valve: ≤ 20μ V
Sensitivity: 5, 10, 20mm/mV
Nter-channel Interference: ≤ 0.5mm
Paper speed: 25\50mm/s(± 3%)
Display: 20x2 character LCD, USB/RS232 is optional

Standard Configuration
Patient cable 1 set
Limb electrode 4 sets
Chest elelctrodes 6 sets
Grounding cable 1 set
Paper axis 1 set
Thermal paper 1 set
Fuse 2 sets
3-cord power cord 1 set
AC Adaptor 1 set

Dimension: 410mm (L) x 360mm (W) x 240 mm(H)
Net Weight: 2.5 kg (with battery)/unit Gross weight: 5kg/unit
Warranty: 18 months
Outbox Dimension: 710 mm(L) × 420mm(W) × 480mm(H) (4 units per carton)
Net weight: 11kg/carton
Gross weight: 22kg/carton
Print paper size: 50mm*20m
Print paper packing: 200 rolls/carton(Carton size: 510x270x240mm, net weight: 12Kg, Gross weight: 15Kg)
