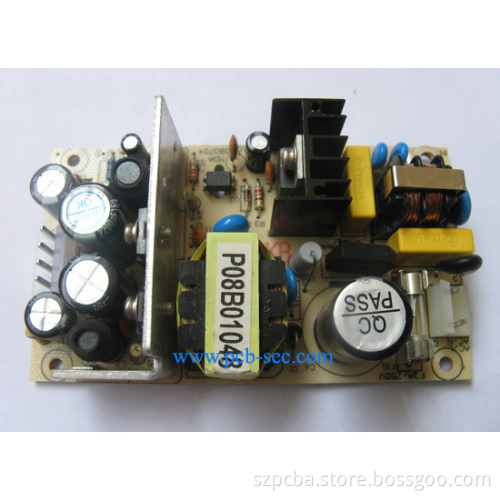

PCBA of 12W/12V DC Switch Power Supply with CE RoHS (HY-201)

1> Output voltage and current: 3-24V0.5A-2A
2> Simple description: Open frame power supply used in LED, door phone, GMS and alarm system
3> Power range: 24W max
4> Product Series: HY-202

Description:
Open frame power supply-24W MAX CE, FCC, RoHS

Features:
High price-effective, reliability with plastic crust
Built in over voltage, over current and short circuit protection

1> Input:
A) AC100V-240V (+10%, -10%);
B) Frequency: 50/60Hz 0.8A;
C) Line regulation range: ± 0.5max;
D) Start up current: 40A/230VAC;

2> Output:
A) Line regulation range: ± 0.5% max;
B) Ripple and noise (MVP-p): <1% of output voltage;
C) Adjustable range of output voltage: +5%, -3%;
D) Start-up time: ≤ 1s (AC input 240V and Io=100%);
E) Hold-up time: ≥ 20ms (AC input 240V and Io=100%);

3> Protection: .
A) Over loading protection: 115%-150% of rated power, when it happened, the power shuts down automatically, when trouble removed the power recovers itself;
B) Over voltage protection: 130%-150% of rated voltage;
C) Short circuit protection;

4> Insulation Intensity: Input---output: 3000V/10mA, 60s;
5> Insulation resistance: Input---output: ≥ 50mΩ , DC500V.

6> Environmental requirements:
A) Operating temperature: 0---40° C;
B) Operating humidity: 10-90% RH (no freezing dew);
C) Storage temperature: -20----85° C
D) Storage humidity: 10-95% RH (no freezing dew);

7> Elevation: <3000m;
8> Dimensions (L x W x H): 65*48*27mm;
9> Weight: 65g;
10> EMC: EN55022, GB3954.
