Mini Sound Pickup Monitor for CCTV Camera (EV-80-160SP)
- Payment Type:
- L/C, T/T, Western Union
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | Shenzhen |
|---|---|
| Payment Type: | L/C, T/T, Western Union |
Product Description
Product Description
Main Features
1 This sound pickup is very suitable for hidden or embedded installation. Pickup head is as small as a . It has AV and DC jack, which is very convenient to connect. It's also very good to surveillance.
2 This device is a new style and high sensitive pickup. It is a professional product specially designed for supporting use of security systems, like CCTV surveillance, burglar alarm, etc. It is for monitor and sound recording. Monitor range is up to 160 square meters.
3 High sensitivity, low noise, low distortion, small size, low voltage, small power consumption( 4PCS of 3A batteries can continuously work for 2 months). Long transmission range, easy and convenient connection. Be able to monitor in a wide range.
4 It can be widely used to various places, like bank, finance, market, prison, judicial, test room, meeting room, industrial production, military areas, etc.
5 This pickup also can be used in highway toll station when it is connected with a wireless repeater.

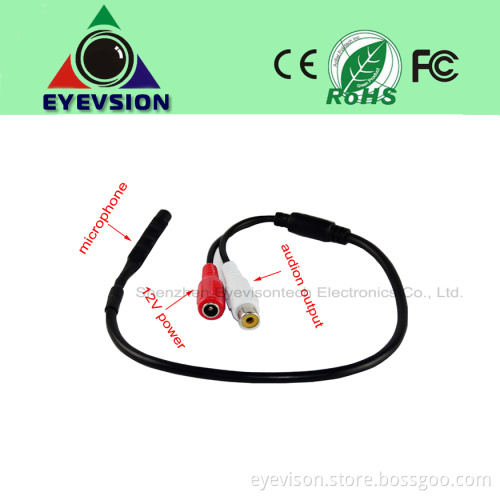

6 Cable connection: Red-- power supply black-- ground white-- signal
Specification
Item
Parameter
Monitor Range: 80~160 square meters
Frequency Response: 200Hz~10kHz
Sensitivity: -60dB
Directivity: Omni
Dynamic Range: 35dB (1kHz at Max dB SPL)
Maximum SPL: 80dB SPL (1kHz, THD 1%)
Output Impedance: 600-1000 OhmNon-equilibrium
Output signal amplitude: 2.0Vpp/-25dB
MIC.
Capacitor microphone
Voltage: DC 3.3V-6V
Current: 2mA
Operating Temperature: 25~70C
Color: Black
Shell Material: PVC
Size: L=14mm; D=4.2mm
Weight: MA200A: 20g MA200: 0.2g
Environmental Temperature: - 20° C ~ + 50° C, Relative humidity85
Connection
3 connection ports: Red_power supply black-- ground white-- signal
Transmission Cable
1 This sound pickup is very suitable for hidden or embedded installation. Pickup head is as small as a . It has AV and DC jack, which is very convenient to connect. It's also very good to surveillance.
2 This device is a new style and high sensitive pickup. It is a professional product specially designed for supporting use of security systems, like CCTV surveillance, burglar alarm, etc. It is for monitor and sound recording. Monitor range is up to 160 square meters.
3 High sensitivity, low noise, low distortion, small size, low voltage, small power consumption( 4PCS of 3A batteries can continuously work for 2 months). Long transmission range, easy and convenient connection. Be able to monitor in a wide range.
4 It can be widely used to various places, like bank, finance, market, prison, judicial, test room, meeting room, industrial production, military areas, etc.
5 This pickup also can be used in highway toll station when it is connected with a wireless repeater.
6 Cable connection: Red-- power supply black-- ground white-- signal
Specification
Item
Parameter
Monitor Range: 80~160 square meters
Frequency Response: 200Hz~10kHz
Sensitivity: -60dB
Directivity: Omni
Dynamic Range: 35dB (1kHz at Max dB SPL)
Maximum SPL: 80dB SPL (1kHz, THD 1%)
Output Impedance: 600-1000 OhmNon-equilibrium
Output signal amplitude: 2.0Vpp/-25dB
MIC.
Capacitor microphone
Voltage: DC 3.3V-6V
Current: 2mA
Operating Temperature: 25~70C
Color: Black
Shell Material: PVC
Size: L=14mm; D=4.2mm
Weight: MA200A: 20g MA200: 0.2g
Environmental Temperature: - 20° C ~ + 50° C, Relative humidity85
Connection
3 connection ports: Red_power supply black-- ground white-- signal
Transmission Cable
RVVP3× 0.5mm2, (Please use shielding cable in electromagnetic environment. )
