Professional Flip Video Conference Camera
- Payment Type:
- L/C, T/T, Paypal, Western Union, cash
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | Shenzhen |
|---|---|
| Payment Type: | L/C, T/T, Paypal, Western Union, cash |
Product Description
Product Description

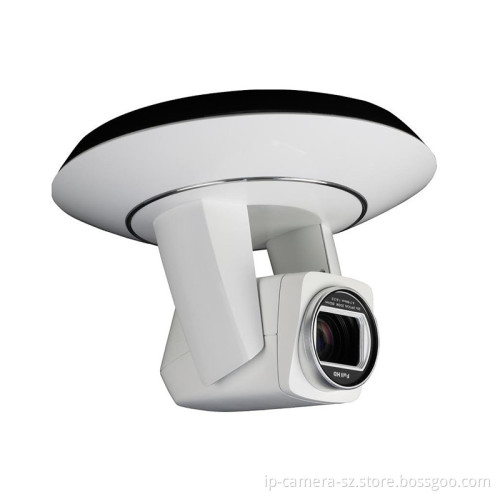

Professional flip video conference camera
Features
1.1/2.8"EXMOR CMOS image sensor, up to 2.22MP
2. Up to 20X optical, 12X digital zoom
3. Video formats: 1080P/60, 180P/50, 1080P/30, 1080P/25, 1080i/60, 1080i/50, 720p/60, 720p/50 etc
4. Simultaneous outputs of HD and SD Videos
5. Video iinterfaces: DVI-I(for DVI-D, HDMI, YPbPr, VGA, 5-BNC etc), HD-SDI
6. Control: RS-232IN, RS-232OUT, RS-422/RS-485 etc.
7. Optional built-in or external wide angle lens, Providing wider view angle
8. On-screen display menu with simple program
9. Has image flip function
10. Support Pelco D/P, VISCA protocols
11. IR remote controller
12. Smart AE technology to effectively avoid the interference of complicated lights from projectors, monitors etc
13. New design of PTZ mechanism with higher precision and Reliability
Features
1.1/2.8"EXMOR CMOS image sensor, up to 2.22MP
2. Up to 20X optical, 12X digital zoom
3. Video formats: 1080P/60, 180P/50, 1080P/30, 1080P/25, 1080i/60, 1080i/50, 720p/60, 720p/50 etc
4. Simultaneous outputs of HD and SD Videos
5. Video iinterfaces: DVI-I(for DVI-D, HDMI, YPbPr, VGA, 5-BNC etc), HD-SDI
6. Control: RS-232IN, RS-232OUT, RS-422/RS-485 etc.
7. Optional built-in or external wide angle lens, Providing wider view angle
8. On-screen display menu with simple program
9. Has image flip function
10. Support Pelco D/P, VISCA protocols
11. IR remote controller
12. Smart AE technology to effectively avoid the interference of complicated lights from projectors, monitors etc
13. New design of PTZ mechanism with higher precision and Reliability
| Model | AMC-K2001 | ||
| Image Sensor | 1/2.8" Exmor CMOS, 2.2MP | ||
| HD Signal Format | 1080P/60,1080P/30,1080P/50,1080P/24,1080i/60,1080i/50,720p/60,720p/50 | ||
| HD Signal Format | NTSC,PAL | ||
| Focal | f=4.7mm ~ 94.0mm | ||
| IRIS | F1.6 ~ F3.5 | ||
| Optical Zoom | 20X | ||
| Digital Zoom | 12X | ||
| Shortest Focus Distance | 10 mm - 1.000 mm | ||
| FOV(Field of View) | 55.4° ~ 2.9° | ||
| Focus | Auto,Manual, PTZ Trigger AF | ||
| Min.illumination | 0.5Lux(Color); 0.1Lux(B/W) | ||
| Shutter Speed | 1/30(25) ~ 1/60,000s | ||
| AGC | Auto/Manual | ||
| BLC | Auto,Indoor,Outdoor,One Push, Manual | ||
| WDR | Yes | ||
| AE control | Auto, Manual, Shutter Priority, Iris Priority | ||
| S/N Ratio | ≥50dB | ||
| Pan Range | - 170° - + 170° | ||
| Tilt Range | - 30°~ +90° | ||
| Pan Speed | 0.1°~200°/sec | ||
| Tilt Speed | 0.1°~150°/sec | ||
| Preset Number | 128 | ||
| OSD | Yes | ||
| Image-Flip | Yes | ||
| Wide Angle Lens | Optional | ||
| HD Video Output Interface | DVI-I(for DVI-D,HDMI,YPbPr,VGA),HD-SDI | ||
| SD Video Output Interface | CVBS | ||
| Control Interface | RS-232IN, RS-232OUT,RS-422/RS-485 | ||
| Protocol | VISCA and Support Daisy Chain/PELCO-P/PELCO-D | ||
| Spectra Address | 0 ~ 255 | ||
| Power | DC 12V | ||
| Power Consumption | < 15W | ||
| Operating Temperature | 0°C ~ +40°C | ||
| Storage Temperature | -20°C ~ +60°C | ||
| Dimension(W X H X L) | 226mm x 206mm x 159mm | ||
| Weight | 1.7kg | ||
| Body Color | White/Gray | ||
