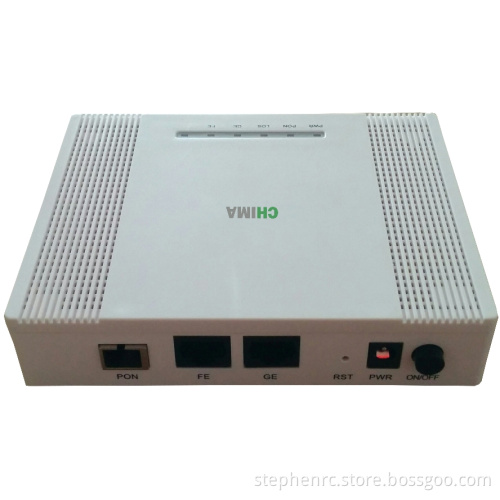

SON8010U 1 GE+1 FE GEPON ONU Description:

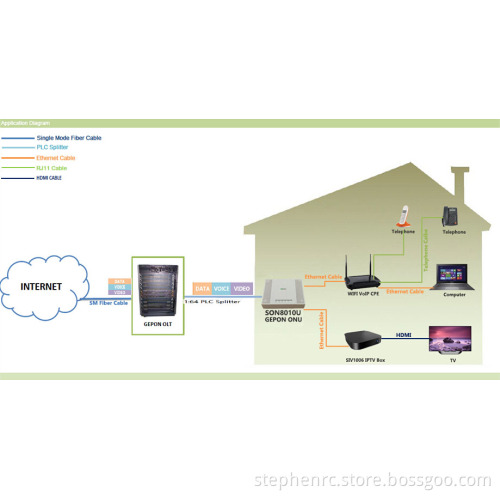

The SON8010U is a Telecom grade IEEE802.3ah based GEPON ONU (Optical Network Unit). It provides 1*1.25G EPON Uplink SC port, and 1*10/100Base-Tx + 1*10/100/1000Base-Tx LAN ports. Its GEPON uplink provides a high bandwidth input of 1.25Gbps. Its 10/100Base-Tx LAN port can be connected to a WiFi Router for Home networking services, and its Gigabit LAN port can be connected to an IPTV box for Home TV service. Its 2 LAN ports can enable ISPs deploy both Internet and IPTV services in FTTH and FTTO networks.
The SON8010U is a Telecom grade IEEE802.3ah based GEPON ONU (Optical Network Unit). It provides 1*1.25G EPON Uplink SC port, and 1*10/100Base-Tx + 1*10/100/1000Base-Tx LAN ports. Its GEPON uplink provides a high bandwidth input of 1.25Gbps. Its 10/100Base-Tx LAN port can be connected to a WiFi Router for Home networking services, and its Gigabit LAN port can be connected to an IPTV box for Home TV service. Its 2 LAN ports can enable ISPs deploy both Internet and IPTV services in FTTH and FTTO networks.
Main Features:
Complies with IEEE802.3ah Gigabit EPON standard, supporting pure optical fiber transmissions.
Transmitting on WDM/Single fiber, saving costs on fiber cables, max transmission distance can reach up to 20Km.
Upstream works at 1310nm, and Downstream at 1490nm wavelength, avoiding fiber signal conflictions
Support flexible Bandwidth Assignation, can assign demanded bandwidth for every subscriber.
Support enhanced transmission security, support encrypted broadcast at downstream and TDMA for upstream.
Support Multicast, subscribers can optionally apply for VOD, Video conferencing, etc.
Support MAC address and IP Address binding to a specific PC, protecting your privacy.
Support Single or Multiple LLIDs, different users and services can be bound to different SSIDs.
Support unique IEEE802.1P QOS priorities for different services and LLIDs,
Support local or remote management, can run management and provision through NMS.
Support Fiber Failure detection, NMS can indicate the failure and the location of it.
Hardware Features:
Fully complies with IEEE802.3ah standard, comes with a 2*10 packaged SFF transceiver
Offers 1*Gepon SC port for uplinking, support 1.25G upstream and downstream
Offers 1*10/100Base-Tx LAN port and 1* 10/100/1000Base-Tx Gigabit LAN port
Offers 1*Reset button, can reset the device conveniently
Sensibility of Gepon Optical port: -2dBm to -27dBm
Fiber Ratio: Different Fiber Ratio applies to different transmission distance, 1:64 MAX.
Support 2.2Gbps Backplane bandwidth
Comes with live LED Indicators for working status, Link status, System Alarm, GEPON status & Alarm, power, etc
Desktop design, plastic housing with enhanced cooling design,
DC 12V, 0.5A External switching power adaptor, support Asia, Europe, U.S, UK, AU and Brazilian standard power plugs.
Software Features:
Support layer 2 switching features
Support ONU auto detection and auto registration
Support MAC Address binding and filtering
Support IP Address binding and filtering
Support ONU alarm and User connection testing
Support FIFO, support port aggregation
Support Port Mirroring and Broadcast control
Support DHCP Option 82 and DHCP Snooping
Support IEEE802.1Q VLAN, Port Based VLAN,
Support IEEE802.1P QOS, TOS, COS
Support IEEE802.1d Spanning Tree
Support IEEE802.1x authentication
Support MAC addresses limitation,
Support IGMP V2, V3 and IGMP Snooping for multicast
Support IEEE802.3X full duplex, half duplex backpressure flow control
Support bandwidth control
