InMax PT5626 26 Ports Modularized Full Gigabit Advanced Managed Industrial Ethernet Switches

InMaxPT5626 26 Ports Modularized Full Gigabit Advanced Managed Industrial Ethernet Switches

Man Features

Ø Modularized design, Flexible ports configuration, and support

any combination and up to 26 Gigabit ports

Ø Uplink: 2xCombo (2x10/100/1000BaseTX + 2x1000BaseX SFP slots)

Downlink: Up to 24 gigabit ports, 8 fixed 100BaseFX/1000BaseX SFP slots+2 card slots

Ø Proprietary Protocol "Max Ring" (recovery time < 20ms),

RSTP,STP and MSTP for network redundancy

Ø SNMPv3,IEEE 802.1X,HTTPS,and SSH to enhance network security

Ø Support VLAN and QoS

Ø Easy network management through web browser,CLI,Telnet/serial console,Windows

utility and SNMP

Ø Industrial-grade design with -40 to +75°C operating temperature and redundant power

inputs

Ø Metal,IP40 protection

Ø Optional front and rear wiring brings convenience for different wiring environment

Overview

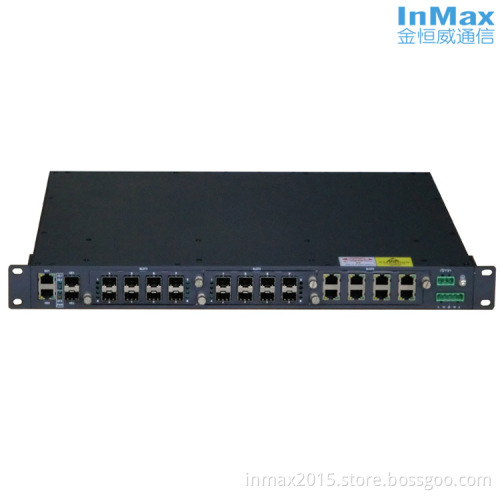

The PT5626 series modularized Full Gigabit advanced managed Industrial Ethernet switch is equipped with up to 26 Gigabit Ethernet ports. The [Max Ring" redundant ring (recovery time < 20ms),RSTP,STP,MSTP and 24VD or 48 VDC, 110/220 VDC or 110/220 VAC dual isolated redundant power supplies increase the reliability of your communications. Optional front and rear wiring brings convenience for different wiring environment. AII these features make PT5626 suitable for a variety of industrial applications

Features and Benefits Features and Benefits

Ports

·Uplink:

2xCombo (2x10/100/1000BaseTX + 2x1000BaseX SFP slots)

·Downlink:

Up to 24 gigabit ports, 8 fixed 100BaseFX/1000BaseX SFP slots+2 card slots

Card slots support any combination of 8SFP and 8TX two types of cards, 8SFP is full fiber optic 8 ports module, and 8TX is full electrical 8 ports module.

Comprehensive Security

·Support 802.1X authentication

·Support MAC address authentication

High Reliability

·Support Proprietary Protocol "Max Ring" (recovery time < 20ms),STP,RSTP and MSTP

for network redundancy

·Support LACP to expand the bandwidth of a switch port,balance the traffic among all the

ports in link aggregation and enhance connection reliability.

Versatile QoS Policies

·0ffer powerful hardware ACL capability

·Support different priority criteria: DSCP priority,802.1p priority,Strict Priority(SP) and

Weight Round Robin(WRR)

Management & Maintainability

·Support SNMP v1/v2c1v3 and RMON MIB Group 1,2,3,9

·Support inmax NMS for industrial networks providing centralized

Management,status monitoring and trouble shooting,auto-discovery and

auto-provision for incoming device

Specifications

Standards:

IEEE802.3

IEEE 802.3u

IEEE802.3z

IEEE 802.3ab

IEEE 802.3x for Flow Control

IEEE 802.1D-2004 for STP

IEEE 802.1w for Rapid STP

IEEE 802.1s for Multiple STP

IEEE 802.1Q for VLAN Tagging

IEEE 802.1p for Class of Service

IEEE 802.1X for Authentication

IEEE 802.3ad for Port Trunk

Protocols:

IGMPv1/v2, GVRP, SNMPv1/v2c/v3, DHCP Client, TFTP, SNTP, SMTP, RMON, HTTP, HTTPS, Telnet, Syslog, SSH, DHCP Option 82, SNMP Inform, LLDP, SNTP Server/Client

MIB:

MIB-II, Ethernet-Like MIB, P-BRIDGE MIB, Q-BRIDGE MIB, Bridge MIB, RSTP MIB, RMON MIB Group 1, 2, 3, 9

Flow Control:

IEEE802.3x flow control,back pressure flow control

Switch Properties:

Priority Queues: 4

Max. Number of Available VLANs: 4094

VLAN ID Range: VID 1 to 4094

IGMP Groups: 256

MAC Table Size: 8K

Packet Buffer Size: 2 Mbit

Interface:

Fiber ports:100FX / 1000-X SFP slots

RJ45 ports:10/100/1000 TX

Console port:RS-232(RJ45 connector)

Alarm Contact:

1 relay outputs with current carrying capacity of 0.5A@48VDC

Power Requirements:

Redundant dual inputs,A C-powered or DC-powered

Power 1: 24VDC (18-36V) or 48VDC (36-72V)

Power 2: 110,220VDC(88-300V) or 110,220VAC(88-300V)

Input voltage: 24VDC(18~36VDC)

48VDC(36~72VDC),

110/220VAC(88~300V)

Input current: 0.41A@24VDC,10W

0.21A@48VDC,10W

0.045A@220VAC,10W

Input current(Max): 1.83A@24VDC,44W

0.91A@48VDC,44W

0.2A@220VAC,44W

Power consumption: no more than 45w

Overload Current Protection: Present

Reverse Polarity Protection: Present

Connector: 5-contact terminal blocks

Physical Characteristics:

Housing: Metal,IP40 protection

Dimensions: 440 x 334 x 45mm

Weight: 4kg

Installation: 19-inch 1U rack installation

Environmental Limits:

Operating Temperature

Standard Models: 0 ~ +60°C (32 ~ 140°F )

Wide Temp. Models: -40 ~ +75°C (-40 ~ 167°F )

Storage Temperature: -40 ~ +85°C(-40 ~ 185°F )

Ambient relative Humidity: 5 ~ 95%(non-condensing)

Standards and Certifications:

Safety: UL 508,UL 60950-1,CSA C22.2 No,60950-1 and EN 60950-1

EMI: FCC Part 15 Subpart B Class A,EN 55022 Class A

EMS:

EN 61000-4-2 (ESD) Level4,EN 61000-4-3 (RS) Level4,

EN 61000-4-4 (EFT) Level4,EN 61 000-4-5 (Surge) Level4,

EN 61000-4-6 (CS) Level4,EN 61000-4-8 Level4,

Shock: IEC 60068-2-27

Freefall: IEC 60068-2-32

Vibration: IEC 60068-2-6

Warranty Period: 5 years

Dimensions

UNIT(mm)

Ordering Information
