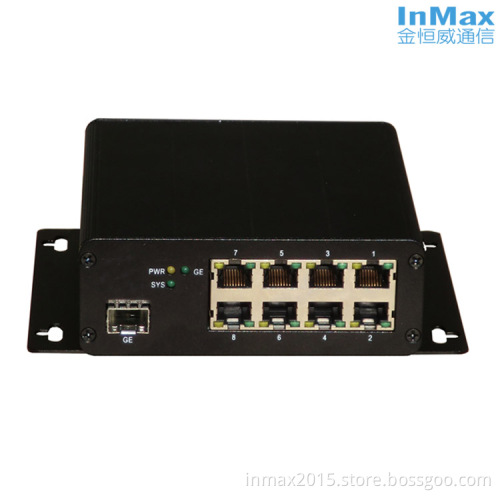

InMax i309A 8+1G Port Unmanaged Industrial Ethernet Switches

InMax i309A 8+1G Port Unmanaged Industrial Ethernet Switches

Man Features

Ø8x10/100BaseTX ports+1x1000BaseFX

ØIndustrial-grade design with -40 to +75°C operating

temperature and redundant power inputs

ØMetal, IP40 protection,DIN-Rail mounting, wall mounting

Specifications

Standards:

IEEE 802.3

IEEE 802.3u

IEEE 802.3z

Interface:

Fiber Ports: 1000Base-X (SFP Slot)

RJ45 Ports: 10/100BaseTX auto negotiation

LED:

Port Led:Copper: Link1~6, Act1~6

Fiber: Link/ Act G1,G2,G3

Power Led:PWR

Power Requirements:

Input Voltage: 24VDC (12 ~ 36VDC), redundant dual inputs

Input Current: MAX. <0.41A@24VDC,<10W

Overload Current Protection: Present

Reverse Polarity Protection: Present

Connector: 6-contact terminal blocks

Mechanical Properties:

Housing: Metal, IP40 protection

Dimensions: 60.2 x 112.5 x 138.5 mm

Weight: 750g

Installation: DIN-Rail mounting, wall mounting

Environmental Limits:

Operating Temperature:

Standard Models: 0 to +60°C (32 ~ 140°F )

Wide Temp. Models:-40 to +75°C (-40 to 167°F)

Storage Temperature: -40 to +85°C (-40 to 185°F )

Ambient Relative Humidity: 5 to 95% (non-condensing)

Standards and Certifications:

Safety: UL 60950-1

EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A

EMS:

EN 61000-4-2 (ESD) Level 3, EN 61000-4-3 (RS) Level 3,

EN 61000-4-4 (EFT) Level 3, EN 61000-4-5 (Surge) Level 3,

EN 61000-4-6 (CS) Level 3, EN 61000-4-8 Level 3

Shock: IEC 60068-2-27

Freefall: IEC 60068-2-32

Vibration: IEC 60068-2-6

Warranty Period: 5 years

Dimensions

Ordering Information
