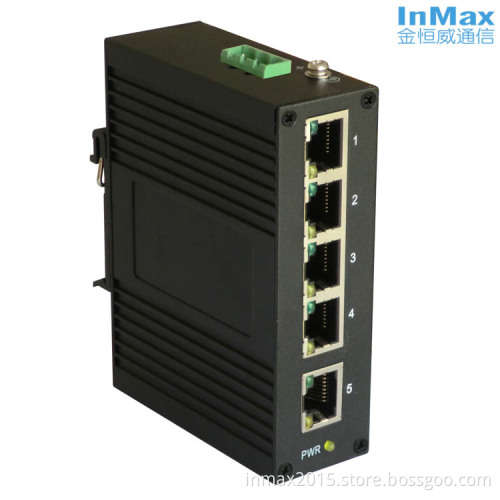

InMax i305B 5 Port Unmanaged Industrial Ethernet Switches

InMax i305B 5 Port Unmanaged Industrial Ethernet Switches

Man Features

Ø5x10/100BaseTX ports

ØIndustrial-grade design with -40 to +75°C operating

temperature and redundant power inputs

ØMetal, IP40 protection,DIN-Rail mounting, wall mounting

Specifications

Standards:

IEEE 802.3

IEEE 802.3u

Interface:

RJ45 Ports: 10/100BaseTX auto negotiation

LED:

Port Led:Copper: Link1,2,3,4,5, Act1,2,3,4,5

Power Led:PWR

Power Requirements:

Input Voltage: 24VDC (12 ~ 36VDC), redundant dual inputs

Input Current: MAX. <0.1A@24VDC,<2.4W

Overload Current Protection: Present

Reverse Polarity Protection: Present

Connector: 3-contact terminal blocks

Mechanical Properties:

Housing: Metal, IP40 protection

Dimensions: 32 x 108 x 78mm

Weight: 280g

Installation: DIN-Rail mounting, wall mounting

Environmental Limits:

Operating Temperature:

Standard Models: 0 to +60°C (32 ~ 140°F )

Wide Temp. Models:-40 to +75°C (-40 to 167°F)

Storage Temperature: -40 to +85°C (-40 to 185°F )

Ambient Relative Humidity: 5 to 95% (non-condensing)

Standards and Certifications:

Safety: UL 60950-1

EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A

EMS:

EN 61000-4-2 (ESD) Level 3, EN 61000-4-3 (RS) Level 3,

EN 61000-4-4 (EFT) Level 3, EN 61000-4-5 (Surge) Level 3,

EN 61000-4-6 (CS) Level 3, EN 61000-4-8 Level 3

Shock: IEC 60068-2-27

Freefall: IEC 60068-2-32

Vibration: IEC 60068-2-6

Warranty Period: 5 years

Dimensions

Unit (mm)

(W×H×D):32 mm×103mm×78mm

Ordering Information
