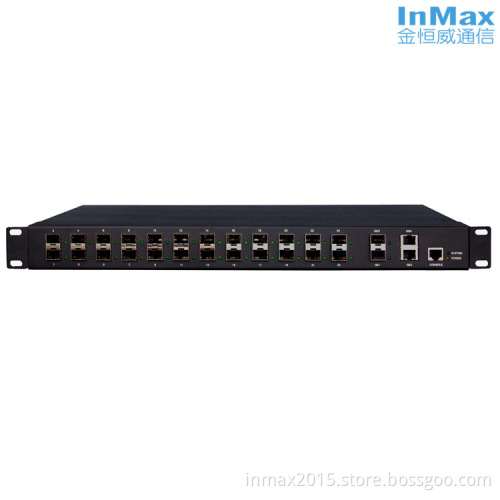

S5326 24 Gigabit Ports 2 Gigabit combo ports Managed SFP Based Fiber Optic Ethernet Switches

S5326 24 Gigabit Ports 2 Gigabit combo ports Managed SFP Based Fiber Optic Ethernet Switches

Overview

InMaxS5326 24 Gigabit Ports +2 Gigabit combo ports Managed SFP Based Fiber Optic Ethernet Switch is a managed Layer 2+Gigabit Ethernet switch with high-performance for service providers. It offers up to twenty-four 100/1000M SFP Ethernet fiber optic ports and two 100/1000M SFP or 10/100/1000M RJ45 combo ports.

InMaxS5326 is targeted at the emerging market of Ethernet-based FTTx application. It comes with a rich feature set to meet the requirements of a wide range of applications, especially the access network and the small-and-medium-scale customized network. The design of dual power supply provides the power redundancy for applications requiring high reliability. InMaxS5326 is low-profile with a standard rack-mount size. It achieves the highest Gigabit fiber port density within a single rack, providing users with the best performance/price ratio.

The network management function on InMaxS5326 allows administrators to easily configure features, monitor performance and troubleshoot the switches using a standard RS-232 port, Web browser, Command Line Interface (CLI) and a Simple Network Management Protocol (SNMP)-based network management platform.

Main applications include FTTx, fiber optic LAN, industrial Ethernet, Ethernet based DCS and digital video monitoring system.

Features

4K IEEE 802.1Q based VLAN

Port-based VLAN

· Protocol-based VLAN

· MAC-based VLAN

· VPN

· GARP/GVRP

· 8K MAC addresses, auto-learning and refreshing automatically

· Jumbo frame of up to 9216 bytes

· 4 outputting queues for each port

· 802.1p privilege, port privilege and DSCP privilege

· SP, WRR queue Scheduling Algorithm

· 16 aggregation groups, with up to 8 members for each group, flexible load distribution control and fail-over function among them

· 802.3ad, Manual, static and dynamic port aggregation

· 802.3ad Spanning Tree Protocol (STP), Support 802.1w Rapid Spanning Tree Protocol (RSTP) and 802.1s Multiple Spanning Tree Protocol (MSTP)

· Port-based egress, ingress and bi-direction rate control

· Port Loopback detection function (LBD)

· Multi-combination of MAC address, IP and Port binding

· Static and dynamic MAC addressing configuration, and black hole MAC address filtering

· IGMP v1/v2c/v3 Snooping, IGMP Proxy and immediate leaving

· Multi VLAN registration (MVR)

· Link Layer Discovery Protocol

· Storm Control for any combination of multicast, broadcast and DLF traffic

· DHCP Snooping, DHCP Option82

· Dynamic ARP Inspection (DAI)

· DHCP and ARP rate limit

· Max MAC addresses limit on learned port

· Port isolation

· 16 isolated VLANs

· Access Control List (ACL), L2-L4 packet filtering function, traffic classification, traffic monitoring and statistics based on source MAC address, destination MAC address, source IP, destination IP, port, typology type, VLAN, CoS, DSCP, IP type, TCP/UDP port

· Secure Shell (SSH) v2.0

· Port-based 802.1x access control and MAC based address authentication

· Flexible port mirroring, 4 mirroring groups of ingress/egress/both data flow monitoring on one or more ports

· User access privilege levels

· On-line software upgrade

· Configuration file backup and restore

· Dual power supply option provides power redundancy with status monitoring features

· Monitoring on fan, temperature, CPU and memory status

· Add your features here (we offer customization, please contact us for details.)

Network Management

· SNMP v1/v2c/v3

· Web page management

· Command Line Interface (CLI)

· Telnet and RS232 console management

· Network management system(NMS)

· Cluster management

Network Protocol and Standards

· IEEE:

802.3, 802.3u, 802.3z, 802.3ab, 802.1d/w/s, 802.1p, 802.1q, 802.1v, 802.1ad, 802.3x, 802.1x

· IEFT:

RFC1157 SNMP, RFC 1112/2236 IGMP, RFC854 Telnet, RFC 1123/1493/1643 MIB

Port Configuration

· Two 100/1000M SFP Fiber or 10/100/1000BaseTX RJ45 copper combo ports

· Twenty-four standard SFP based 100/1000Base-X ports

Power Supply Options

· AC 90~264V/1.2A (max), 50/60Hz or

· DC 18~36V/2A or

· DC 36~72V/1.5A

· Power Consumption: less than 45W

· Dual power modules optional

Physical and Environmental Parameters

· Dimension: Standard 19-inch rack-mount wide, 1.0U high

· Weight: 5Kg

· Operating temperature: 0°C ~ 50°C

· Storage temperature: -25°C ~ 85°C

· Humidity : 5% ~ 95% RH non-condensing

·
