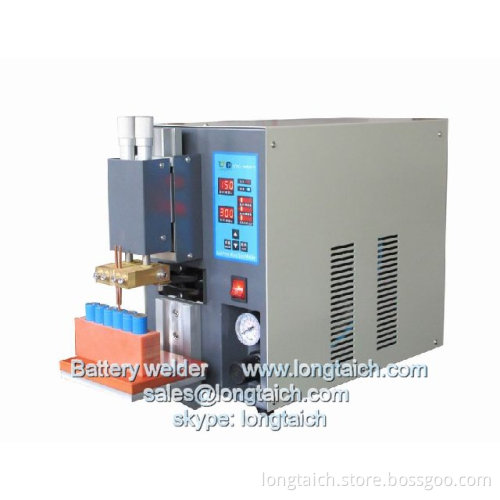

LTC-A4000 spot welding ,High frequency battery spot welder/Battery welding machine for 0.03-0.25mm

Product Description
This machine adopts Japanese thyristor inverter technology, microcomputer control technology and modern power electronic technology development of new power with high reliability and high efficiency and multiple protection function.It can be used to weld plated nickel steel, iron plates and other metal sheets and terminal lines. Pure nickel sheet, copper is more difficult to be welded.

Product Feature
1.High speed and high precision micro processor (MCU) control, provide highly stable repeat welding.
2.High speed welding: quick start with high speed polarity switch reduces the temperature effect so that keep the welding surface clean and beauty.
3.Polarity switching: inhibition asymmetric effect makes the two point weld strength uniform and extend the electrode life.
4.DC output: welding current is pulsating direct current (waveness is small), no AC zero discontinuous heating workpiece shortcomings, heat concentration and improve the welding thermal efficiency, it is especially suitable for welding the non-ferrous metal materials and some difficult welding materials, welding process is stable, welding quality improved significantly. At the same time, the electrode life get extended.
5.Fast response. Power on time control cycle is 1 ms , 20 times than 20ms of common AC battery welder

Product Specification/Models
1.Voltage:220V/110V
2.Power :30 KVA
3.Secondary Side Welding Current : 5000 A
4.Secondary Floating Voltage: 5.5 V
5.Input Frequency: 50 Hz
6.Max Working Air Pressure :6 KG
7.Welding Control: Foot Switch
8.Size:400 mm x 220 mm x 360 mm (L x W x H)
9.Welding Capability:
10.Normally: 0.1-0.3 mm
11.Bump Thickness: 0.2 - 0.5 mm
12.Weight:30KG

Application
Suitable for Various batteries and taps, Welding range from button cell to cylinder battery, Including NI-CD,NI-MH and Lithium-ion etc. Application tabs including pure nickel and nickel plated steel.

Other Information
Our Services
1. Contact us for good price.
2. If you need, We can send you samples to check.
3. Confirm other details such as delivery time, payment, shipment.
4. You pay the deposit.
5. After produce finished, we send the sample for your check if you need, then you finish payment.
6. We arrange shippment. And send documents for your custom clearance.
7.When you got the goods, tell us the comments then we can do better next time.
8. Will share latest price or other news of your goods anytime if you need.
Payment
TT or other
Delivery
Within 10 days after payment
Origin
ShenZhen
Packaging
With standard export package
