20x4 Character LCD Module
- Payment Type:
- T/T
- Incoterm:
- FCA HONGKONG
- Min. Order:
- 100 Piece/Pieces
- Min. Order:
- 100 Piece/Pieces
- Delivery Time:
- 30 Days
- Transportation:
- Ocean
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 100000pcs |
| Supply Ability: | 100000pcs |
| Payment Type: | T/T |
| Incoterm: | FCA HONGKONG |
| Certificate: | ISO9001 |
| Transportation: | Ocean |

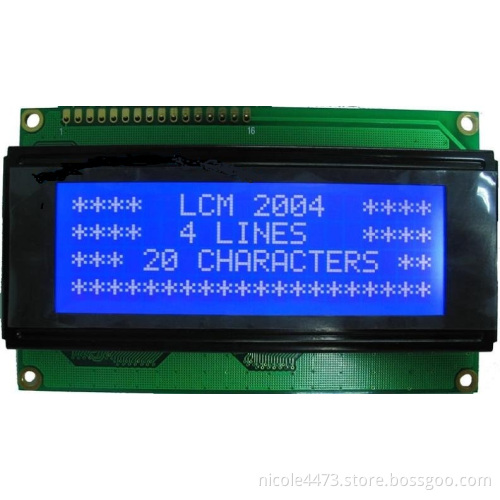

Part Number: W2004A/W2004E
LCD type: 20 character x 4 lines
Dimension: 98x60x13.2(Max) mm (optional 142x62.5x14mm Max)
View Area: 77x25.2mm (optional 123x42.5mm)
Dot size: 0.56(W)*0.56(H)mm (optional 0.93*1.1mm)
LCD type: STN, Positive(Yellow-Green),Transflective
STN Blue negative,Transmissive
STN Gray Positive,Transflective
Viewing angle: 6:00 o'clock (optional for 12:00 o'clock)
Backlight: LED Side or LED Bottom
Backlight color: Yellow-Green,white,blue,red,amber,green
Driver condition: 1/16 Duty,1/5 Bias
Driver IC: SPLC780D or EQV
Operating Temperature: -10 degree TO 60 degree(optional for wide temperature)
Storage Temperature: -20 degree TO 70 degree(optional for wide temperature)
English-Japanese fonts (optional for Russian/European/Cyrillic/Hebrew fonts)
Parallel interface
